SEA-AD CaH snRNASeq analysis: clustering and annotations

The caudate nucleus (Ca) is a “C”-shaped subcortical structure that pairs with the putamen to form the striatum, a component of the basal ganglia. Beyond its role in motor control, the caudate participates in cognitive processes such as procedural memory and associative learning, and it is implicated in several neurodegenerative diseases, including Parkinson’s, Huntington’s, and Alzheimer’s. In Alzheimer’s specifically, the presence of amyloid-\(\beta\) plaques in the head of the caudate partly defines Thal stage III. Here we introduce the SEA-AD Caudate Head Atlas, a cellular-resolution view of Alzheimer’s disease pathology in the caudate head of human donors.

This dataset comprises ~800,000 single cells from a 42-donor subset of the original 84-donor SEA-AD cohort, selected to minimize comorbidities with other known brain diseases. Disease progression is quantified with a continuous pseudo-progression score (CPS), derived from a biophysical model of disease progression fit to quantitative neuropathology from the region. Standard staging measures are also included: overall AD neuropathologic change (ADNC), Braak, and Thal. To annotate the data, we integrated two references — the Human and Mammalian Brain Atlas (HMBA) of the basal ganglia and the SEA-AD middle temporal gyrus (MTG) atlas — merging overlapping classes into the SEA-AD taxonomy. Quality control was performed after integration: for each cluster, thresholds were set on standard metrics including Genes Detected, Doublet score, and Fraction mitochondrial UMIs.

The notebook presented here demonstrates how to access and visualize taxonomy annotations, cell type metadata, donor information, and AD-associated cellular changes from the SEA-AD CaH dataset. These examples focus on precomputed metadata accessible through the Allen Brain Cell Atlas Access package. Additional data, including links to raw sequencing, spatial transcriptomic, and neuropathology data, are available at SEA-AD.org.

%matplotlib inline

import pandas as pd
from pathlib import Path
import numpy as np
import matplotlib.pyplot as plt
from typing import Tuple, Optional

from abc_atlas_access.abc_atlas_cache.abc_project_cache import AbcProjectCache

We will interact with the data using the AbcProjectCache. This cache object downloads data requested by the user, tracks which files have already been downloaded to your local system, and serves the path to the requested data on disk. For metadata, the cache can also directly serve up a Pandas DataFrame. See the getting_started notebook for more details on using the cache including installing it if it has not already been.

Change the download_base variable to where you would like to download the data in your system or a location where a cache is already available.

download_base = Path('../../data/allen-brain-cell-atlas-staging/')
abc_cache = AbcProjectCache.from_cache_dir(
   download_base,
)

abc_cache.current_manifest

'releases/20260711/manifest.json'

Data overview

Below we list the metadata and gene expression files for each of the directories that make up this dataset:

• SEA-AD-CaH-10X

• SEA-AD-CaH-taxonomy

print("SEA-AD-10X: gene expression data (h5ad)\n\t", abc_cache.list_expression_matrix_files(directory='SEA-AD-CaH-10X'))
print("SEA-AD-CaH-10X: metadata (csv)\n\t", abc_cache.list_metadata_files(directory='SEA-AD-CaH-10X'))

SEA-AD-10X: gene expression data (h5ad)
	 ['CaH-10X/log2', 'CaH-10X/raw']
SEA-AD-CaH-10X: metadata (csv)
	 ['cell_metadata', 'disease', 'donor', 'example_gene_expression', 'gene', 'library', 'value_sets']

We will also use metadata from the SEA-AD-CaH-taxonomy directory. Below is the list of available files:

print("SEA-AD-CaH-taxonomy: metadata (csv)\n\t", abc_cache.list_metadata_files(directory='SEA-AD-CaH-taxonomy'))

SEA-AD-CaH-taxonomy: metadata (csv)
	 ['cell_2d_embedding_coordinates', 'cell_to_cluster_membership', 'cluster', 'cluster_annotation_term', 'cluster_annotation_term_set', 'cluster_to_cluster_annotation_membership']

Cell metadata

Essential cell metadata is stored as a CSV file that we load as a Pandas DataFrame. Each row represents one cell indexed by a cell label. The cell label is the concatenation of barcode and name of the sample. In this context, the sample is the barcoded cell sample that represents a single load into one port of the 10x Chromium. Note that cell barcodes are only unique within a single barcoded cell sample and that the same barcode can be reused. Note that cell barcodes are only unique within a single barcoded cell sample and that the same barcode can be reused exp_component_name is an alternative cell identifier that indexes some of the data hosted at SEA-AD.org.

Each cell is associated with a library label, donor label, alignment_job_id, feature_matrix_label and dataset_label identifying which data package this cell is part of. This metadata file will be combined with other metadata files that come with this package to add information associated with the donor, UMAP coordinates, taxonomy assignments, and more.

Below, we load the first of the metadata used in this tutorial. This represents the cell metadata for the aligned dataset.

The command we use below both downloads the data if it is not already available in the local cache and loads the data as a Pandas DataFrame. This pattern of loading metadata is repeated throughout the tutorials.

cell = abc_cache.get_metadata_dataframe(
    directory='SEA-AD-CaH-10X',
    file_name='cell_metadata'
).set_index('cell_label')
print("Number of cells = ", len(cell))
cell.head()

cell_metadata.csv: 100%|██████████| 161M/161M [00:11<00:00, 14.6MMB/s]
/Users/chris.morrison/src/abc_atlas_access/src/abc_atlas_access/abc_atlas_cache/abc_project_cache.py:643: DtypeWarning: Columns (4) have mixed types. Specify dtype option on import or set low_memory=False.
  return pd.read_csv(path, **kwargs)

Number of cells =  886037

	cell_barcode	barcoded_cell_sample_label	library_label	alignment_job_id	doublet_score	umi_count	Used in analysis	donor_label	exp_component_name	feature_matrix_label	dataset_label
cell_label
AAACCCAAGAATCTAG-1336_B04	AAACCCAAGAATCTAG	1336_B04	L8HX_220714_02_B02	1194262311	0.05	64074.0	True	H21.33.004	AAACCCAAGAATCTAG-L8HX_220714_02_B02-1194262311	CaH-10X	SEA-AD-CaH-10X
AAACCCAAGCACAAAT-1336_B04	AAACCCAAGCACAAAT	1336_B04	L8HX_220714_02_B02	1194262311	0.08	37080.0	True	H21.33.004	AAACCCAAGCACAAAT-L8HX_220714_02_B02-1194262311	CaH-10X	SEA-AD-CaH-10X
AAACCCAAGGGACTGT-1336_B04	AAACCCAAGGGACTGT	1336_B04	L8HX_220714_02_B02	1194262311	0.14	7534.0	False	H21.33.004	AAACCCAAGGGACTGT-L8HX_220714_02_B02-1194262311	CaH-10X	SEA-AD-CaH-10X
AAACCCACAATTTCCT-1336_B04	AAACCCACAATTTCCT	1336_B04	L8HX_220714_02_B02	1194262311	0.10	4867.0	True	H21.33.004	AAACCCACAATTTCCT-L8HX_220714_02_B02-1194262311	CaH-10X	SEA-AD-CaH-10X
AAACCCACAGCAATTC-1336_B04	AAACCCACAGCAATTC	1336_B04	L8HX_220714_02_B02	1194262311	0.00	2399.0	True	H21.33.004	AAACCCACAGCAATTC-L8HX_220714_02_B02-1194262311	CaH-10X	SEA-AD-CaH-10X

We can use pandas groupby function to see how many unique items are associated for each field and list them out if the number of unique items is small.

def print_column_info(df):

    for c in df.columns:
        grouped = df[[c]].groupby(c).count()
        members = ''
        if len(grouped) < 30:
            members = str(list(grouped.index))
        print("Number of unique %s = %d %s" % (c, len(grouped), members))

print_column_info(cell)

Number of unique cell_barcode = 804174
Number of unique barcoded_cell_sample_label = 64
Number of unique library_label = 64
Number of unique alignment_job_id = 66
Number of unique doublet_score = 876
Number of unique umi_count = 111595
Number of unique Used in analysis = 2 [False, True]
Number of unique donor_label = 41
Number of unique exp_component_name = 886037
Number of unique feature_matrix_label = 1 ['CaH-10X']
Number of unique dataset_label = 1 ['SEA-AD-CaH-10X']

Donor, Library, and disease metadata

The first two associated metadata we load are the donor, library, and disease tables. The donor table includes donor demographics such as species, age, sex, race, and education, along with brain tissue metrics such as pH, postmortem interval (PMI), and fresh brain weight. This table also indicates which study a donor was enrolled in (ACT or ADRC). The library table contains information on 10X methods and brain region of interest the tissue was extracted from. The disease table contains disease progression metrics and other pathology data. Definitions of many of these columns can be found here.

donor = abc_cache.get_metadata_dataframe(
    directory='SEA-AD-CaH-10X',
    file_name='donor'
).set_index('donor_label')

donor.head()

donor.csv: 100%|██████████| 8.67k/8.67k [00:00<00:00, 58.6kMB/s]

	donor_species	species_scientific_name	species_genus	donor_sex	donor_age	donor_age_value	donor_age_unit	donor_gender	Race (choice=White)	Race (choice=Black/ African American)	...	Race (choice=Other)	Hispanic/Latino	specify other race	Highest level of education	Years of education	PMI	Fresh Brain Weight	Brain pH	Primary Study Name	donor_race
donor_label
H19.33.004	NCBITaxon:9606	Homo sapiens	Human	Female	80 yrs	80	years	Female	Checked	Unchecked	...	Unchecked	No	NaN	Bachelors	17	8.133333	1035.0	7.0	ACT	White
H20.33.001	NCBITaxon:9606	Homo sapiens	Human	Male	82 yrs	82	years	Male	Checked	Unchecked	...	Unchecked	No	NaN	Bachelors	16	7.700000	1338.0	6.8	ACT	White
H20.33.005	NCBITaxon:9606	Homo sapiens	Human	Female	99 yrs	99	years	Female	Checked	Unchecked	...	Unchecked	No	NaN	High School	12	7.600000	1003.0	6.8	ACT	White
H20.33.008	NCBITaxon:9606	Homo sapiens	Human	Female	92 yrs	92	years	Female	Checked	Unchecked	...	Unchecked	No	NaN	Graduate (PhD/Masters)	18	7.000000	1105.0	6.4	ACT	White
H20.33.011	NCBITaxon:9606	Homo sapiens	Human	Female	93 yrs	93	years	Female	Checked	Unchecked	...	Unchecked	No	NaN	Bachelors	16	6.000000	1156.0	7.0	ACT	White

5 rows × 24 columns

Next we load the library metadata. The information we will primarily use from this table are the region of interest that each library is associated with.

library = abc_cache.get_metadata_dataframe(
    directory='SEA-AD-CaH-10X',
    file_name='library'
).set_index('library_label')
library.head()

library.csv: 100%|██████████| 7.64k/7.64k [00:00<00:00, 47.0kMB/s]

	library_method	barcoded_cell_sample_label	enrichment_population	cell_specimen_type	parcellation_term_identifier	region_of_interest_label	region_of_interest_name	Brain Region	donor_label
library_label
L8HX_220714_02_B02	10xV3.1_HT	1336_B04	70% NeuN+, 30% NeuN-	Nuclei	DHBA:10335	CaH	head of caudate	CaH	H21.33.004
L8HX_220519_03_A03	10xV3.1_HT	1257_B01	70% NeuN+, 30% NeuN-	Nuclei	DHBA:10335	CaH	head of caudate	CaH	H20.33.012
L8HX_220519_03_E02	10xV3.1_HT	1257_A02	70% NeuN+, 30% NeuN-	Nuclei	DHBA:10335	CaH	head of caudate	CaH	H19.33.004
L8HX_220428_03_C12	10xV3.1_HT	1225_B02	70% NeuN+, 30% NeuN-	Nuclei	DHBA:10335	CaH	head of caudate	CaH	H21.33.032
L8HX_220407_03_A12	10xV3.1_HT	1190_B01	50% NeuN+, 50% NeuN-	Nuclei	DHBA:10335	CaH	head of caudate	CaH	H21.33.022

Finally we load the disease data containing disease progression information.

disease = abc_cache.get_metadata_dataframe(
    directory='SEA-AD-CaH-10X',
    file_name='disease'
).set_index('donor_label')
disease.head()

disease.csv: 100%|██████████| 8.13k/8.13k [00:00<00:00, 54.5kMB/s]

	Overall AD neuropathological Change	Thal	Braak	CERAD score	Overall CAA Score	Highest Lewy Body Disease	Total Microinfarcts (not observed grossly)	Total microinfarcts in screening sections	Atherosclerosis	Arteriolosclerosis	...	Last CASI Score	Interval from last CASI in months	Last MMSE Score	Interval from last MMSE in months	Last MOCA Score	Interval from last MOCA in months	APOE Genotype	CPS	CPS_AT8	CPS_6E10
donor_label
H19.33.004	Not AD	Thal 0	Braak IV	Absent	Not identified	Not Identified (olfactory bulb not assessed)	1	1	Mild	Moderate	...	85.0	3.5	25.0	3.5	NaN	NaN	3/3	0.000000	0.000000	0.000000
H20.33.001	Low	Thal 2	Braak IV	Sparse	Not identified	Not Identified (olfactory bulb not assessed)	0	0	Mild	Mild	...	97.0	18.2	28.0	18.2	NaN	NaN	3/3	0.577213	0.618921	0.349652
H20.33.005	Intermediate	Thal 3	Braak IV	Moderate	Moderate	Not Identified (olfactory bulb not assessed)	2	2	Mild	Moderate	...	94.0	24.2	29.0	24.2	NaN	NaN	2/3	0.702125	0.476388	0.738349
H20.33.008	High	Thal 4	Braak V	Moderate	Moderate	Not Identified (olfactory bulb not assessed)	0	0	Moderate	Moderate	...	92.0	2.7	29.0	2.7	NaN	NaN	3/4	0.961588	0.823632	0.913234
H20.33.011	High	Thal 5	Braak V	Moderate	Moderate	Amygdala-predominant	0	0	Moderate	Severe	...	79.0	7.8	21.0	7.8	NaN	NaN	3/4	0.972877	0.820284	0.972102

5 rows × 22 columns

We combine the donor, library, and disease tables into an extended cell metadata table.

cell_extended = cell.join(donor, on='donor_label')
cell_extended = cell_extended.join(library, on='library_label', rsuffix='_library_table')
cell_extended = cell_extended.join(disease, on='donor_label', rsuffix='_disease')

del cell

We use the groupby function to show the number of cells for one of disease data columns. Change this to any other column to get counts by any of the various metadata.

cell_extended.groupby('Thal')[['region_of_interest_label']].count()

	region_of_interest_label
Thal
Thal 0	70951
Thal 1	104723
Thal 2	109533
Thal 3	116450
Thal 4	273742
Thal 5	210638

We can use the group by functionality to group the cells by cognitive status.

cell_extended.groupby('Cognitive Status')[['library_label']].count().rename(columns={'library_label': 'number_of_cells'})

	number_of_cells
Cognitive Status
Dementia	399647
No dementia	486390

Adding color and feature order

Each major feature in the donor and library table is associated with unique colors and an ordering with the set of values. Below we load the value_sets DataFrame which is a mapping from the various value in the donor and species tables to those colors and orderings. We incorporate these values into the cell metadata table.

value_sets = abc_cache.get_metadata_dataframe(
    directory='SEA-AD-CaH-10X',
    file_name='value_sets'
).fillna({'label': 'None'}).set_index('label')
value_sets

value_sets.csv: 100%|██████████| 15.6k/15.6k [00:00<00:00, 107kMB/s]

	field	table	color_hex_triplet	order	description	external_identifier
label
2/2	APOE Genotype	disease	#fdd4c2	1	NaN	NaN
2/3	APOE Genotype	disease	#fca082	2	NaN	NaN
2/4	APOE Genotype	disease	#fb6a4a	3	NaN	NaN
3/3	APOE Genotype	disease	#e32f27	4	NaN	NaN
3/4	APOE Genotype	disease	#b21218	5	NaN	NaN
...	...	...	...	...	...	...
FI	region_of_interest_label	library	#008080	7	agranular frontal insular cortex (area FI)	DHBA:10329
STG	region_of_interest_label	library	#006400	8	superior temporal gyrus	DHBA:12140
DFC	region_of_interest_label	library	#00008b	9	dorsolateral prefrontal cortex	DHBA:10173
AnG	region_of_interest_label	library	#00bfff	10	angular gyrus	DHBA:12136
V1C	region_of_interest_label	library	#9932cc	11	primary visual cortex (first visual cortex, st...	DHBA:10269

204 rows × 6 columns

We define a convenience function to add colors for the various values in the data (e.g. unique region of interest or donor sex values).

def extract_value_set(
        cell_metadata_df: pd.DataFrame,
        input_value_set: pd.DataFrame,
        input_value_set_label: str,
        dataframe_column: Optional[str] = None
    ):
    """Add color and order columns to the cell metadata dataframe based on the input
    value set.

    Columns are added as {input_value_set_label}_color and {input_value_set_label}_order.

    Parameters
    ----------
    cell_metadata_df : pd.DataFrame
        DataFrame containing cell metadata.
    input_value_set : pd.DataFrame
        DataFrame containing the value set information.
    input_value_set_label : str
        The the column name to extract color and order information for. will be added to the cell metadata.
    """
    if dataframe_column is None:
        dataframe_column = input_value_set_label
    cell_metadata_df[f'{dataframe_column}_color'] = input_value_set[
        input_value_set['field'] == input_value_set_label
    ].loc[cell_metadata_df[dataframe_column]]['color_hex_triplet'].values
    cell_metadata_df[f'{dataframe_column}_order'] = input_value_set[
        input_value_set['field'] == input_value_set_label
    ].loc[cell_metadata_df[dataframe_column]]['order'].values

Use our function to add the relevant color and order columns to our cell_metadata table.

# Add region of interest color and order
extract_value_set(cell_extended, value_sets, 'region_of_interest_label')
# Add disease color and order
extract_value_set(cell_extended, value_sets, 'APOE Genotype')
extract_value_set(cell_extended, value_sets, 'Arteriolosclerosis')
extract_value_set(cell_extended, value_sets, 'Atherosclerosis')
extract_value_set(cell_extended, value_sets, 'Braak')
extract_value_set(cell_extended, value_sets, 'CERAD score')
extract_value_set(cell_extended, value_sets, 'Cognitive Status')
extract_value_set(cell_extended, value_sets, 'LATE')
extract_value_set(cell_extended, value_sets, 'Highest Lewy Body Disease')
extract_value_set(cell_extended, value_sets, 'Overall AD neuropathological Change')
extract_value_set(cell_extended, value_sets, 'Thal')
# Add donor sex/gender color and order
extract_value_set(cell_extended, value_sets, 'donor_sex')
extract_value_set(cell_extended, value_sets, 'donor_gender')
# Add race
extract_value_set(cell_extended, value_sets, 'donor_race')
cell_extended.head()

	cell_barcode	barcoded_cell_sample_label	library_label	alignment_job_id	doublet_score	umi_count	Used in analysis	donor_label	exp_component_name	feature_matrix_label	...	Overall AD neuropathological Change_color	Overall AD neuropathological Change_order	Thal_color	Thal_order	donor_sex_color	donor_sex_order	donor_gender_color	donor_gender_order	donor_race_color	donor_race_order
cell_label
AAACCCAAGAATCTAG-1336_B04	AAACCCAAGAATCTAG	1336_B04	L8HX_220714_02_B02	1194262311	0.05	64074.0	True	H21.33.004	AAACCCAAGAATCTAG-L8HX_220714_02_B02-1194262311	CaH-10X	...	#fcbba1	1	#fedbcb	1	#ADC4C3	2	#ADC4C3	2	#f7f184	125
AAACCCAAGCACAAAT-1336_B04	AAACCCAAGCACAAAT	1336_B04	L8HX_220714_02_B02	1194262311	0.08	37080.0	True	H21.33.004	AAACCCAAGCACAAAT-L8HX_220714_02_B02-1194262311	CaH-10X	...	#fcbba1	1	#fedbcb	1	#ADC4C3	2	#ADC4C3	2	#f7f184	125
AAACCCAAGGGACTGT-1336_B04	AAACCCAAGGGACTGT	1336_B04	L8HX_220714_02_B02	1194262311	0.14	7534.0	False	H21.33.004	AAACCCAAGGGACTGT-L8HX_220714_02_B02-1194262311	CaH-10X	...	#fcbba1	1	#fedbcb	1	#ADC4C3	2	#ADC4C3	2	#f7f184	125
AAACCCACAATTTCCT-1336_B04	AAACCCACAATTTCCT	1336_B04	L8HX_220714_02_B02	1194262311	0.10	4867.0	True	H21.33.004	AAACCCACAATTTCCT-L8HX_220714_02_B02-1194262311	CaH-10X	...	#fcbba1	1	#fedbcb	1	#ADC4C3	2	#ADC4C3	2	#f7f184	125
AAACCCACAGCAATTC-1336_B04	AAACCCACAGCAATTC	1336_B04	L8HX_220714_02_B02	1194262311	0.00	2399.0	True	H21.33.004	AAACCCACAGCAATTC-L8HX_220714_02_B02-1194262311	CaH-10X	...	#fcbba1	1	#fedbcb	1	#ADC4C3	2	#ADC4C3	2	#f7f184	125

5 rows × 94 columns

UMAP spatial embedding

Now that we’ve merged our donor and library metadata into the main cells data, our next step is to plot these values in the Uniform Manifold Approximation and Projection (UMAP) for cells in the dataset. The UMAP is a dimension reduction technique that can be used for visualizing and exploring large-dimension datasets.

Below we load this 2-D embedding for a sub selection of our cells and merge the x-y coordinates into the extended cell metadata we are creating.

cell_2d_embedding_coordinates = abc_cache.get_metadata_dataframe(
    directory='SEA-AD-CaH-taxonomy',
    file_name='cell_2d_embedding_coordinates'
).set_index('cell_label')
cell_2d_embedding_coordinates.head()

cell_2d_embedding_coordinates.csv: 100%|██████████| 41.1M/41.1M [00:01<00:00, 24.1MMB/s]

	x	y
cell_label
AAACCCAAGAATCTAG-1336_B04	13.205919	4.357159
AAACCCAAGCACAAAT-1336_B04	13.403980	2.630821
AAACCCAAGGGACTGT-1336_B04	10.594164	1.961733
AAACCCACAATTTCCT-1336_B04	6.760588	0.988031
AAACCCACAGCAATTC-1336_B04	4.390634	3.214746

cell_extended = cell_extended.join(cell_2d_embedding_coordinates, how='inner')
cell_extended = cell_extended.sample(frac=1) # shuffle the rows for plotting purposes

del cell_2d_embedding_coordinates

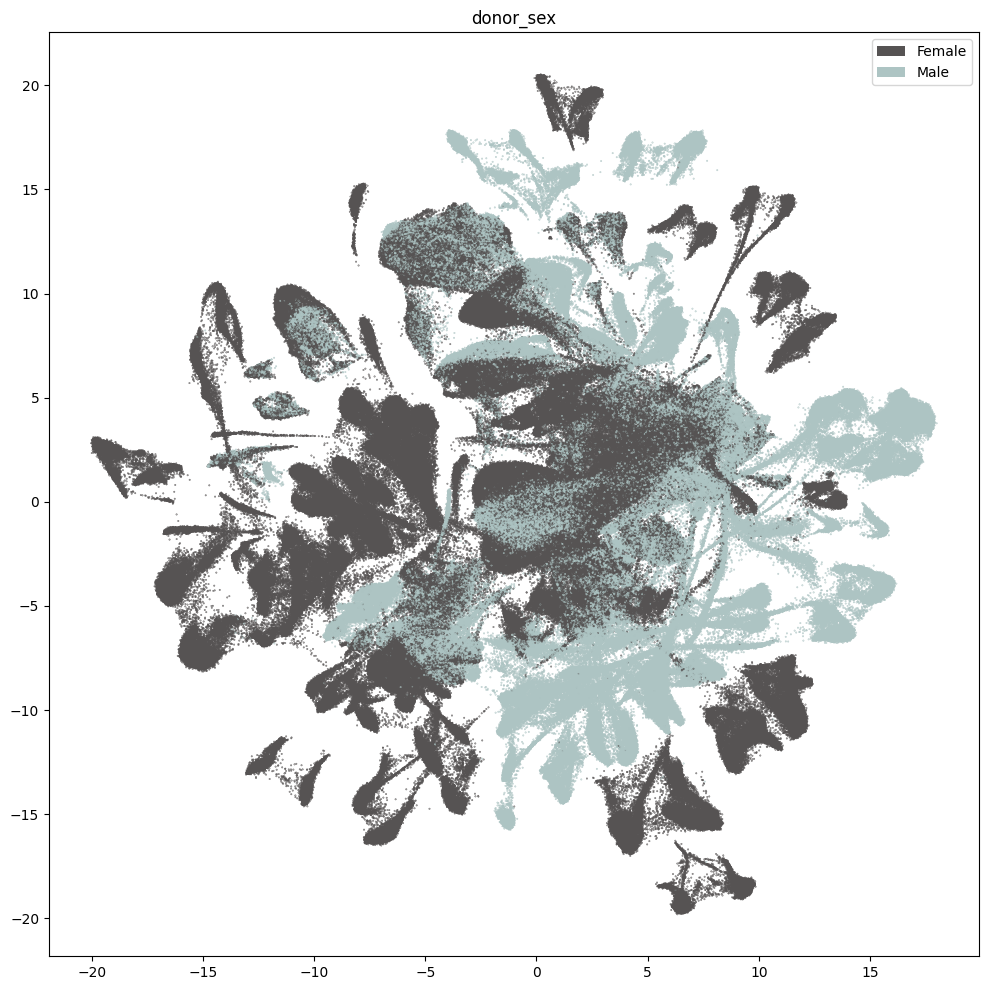

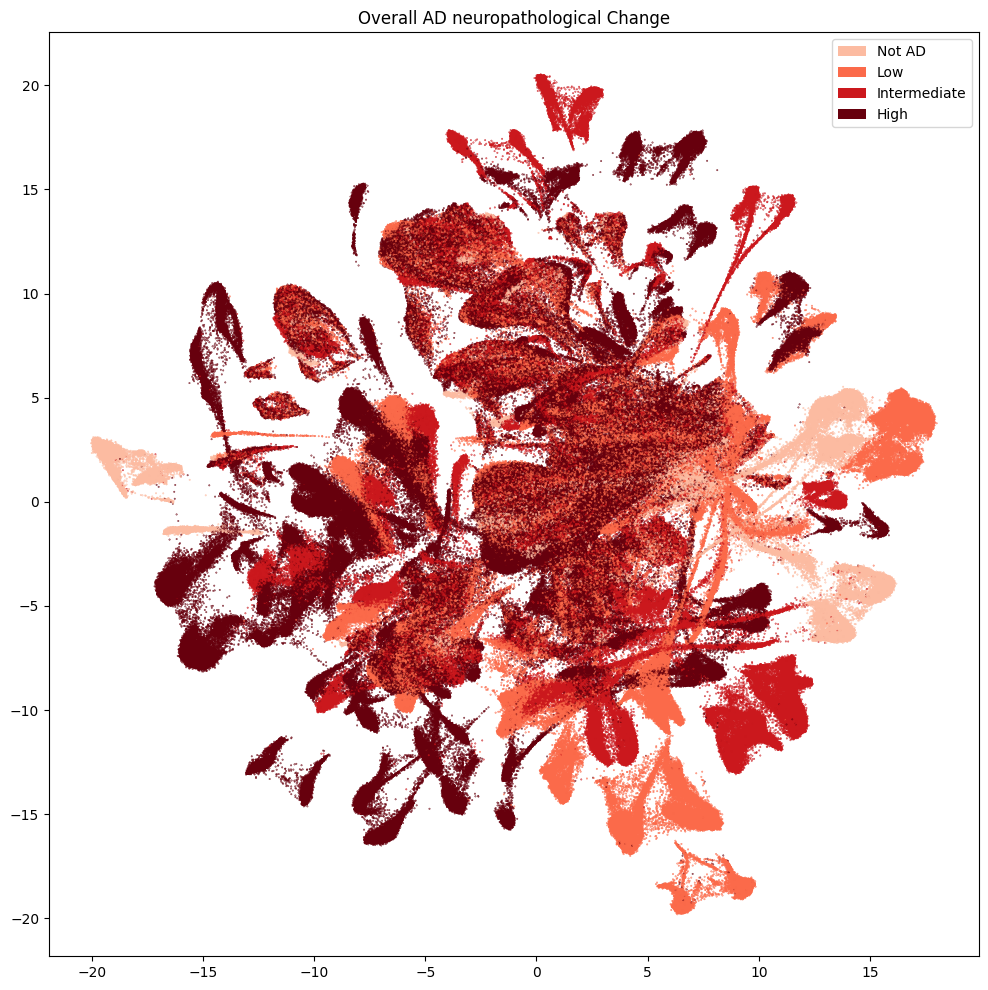

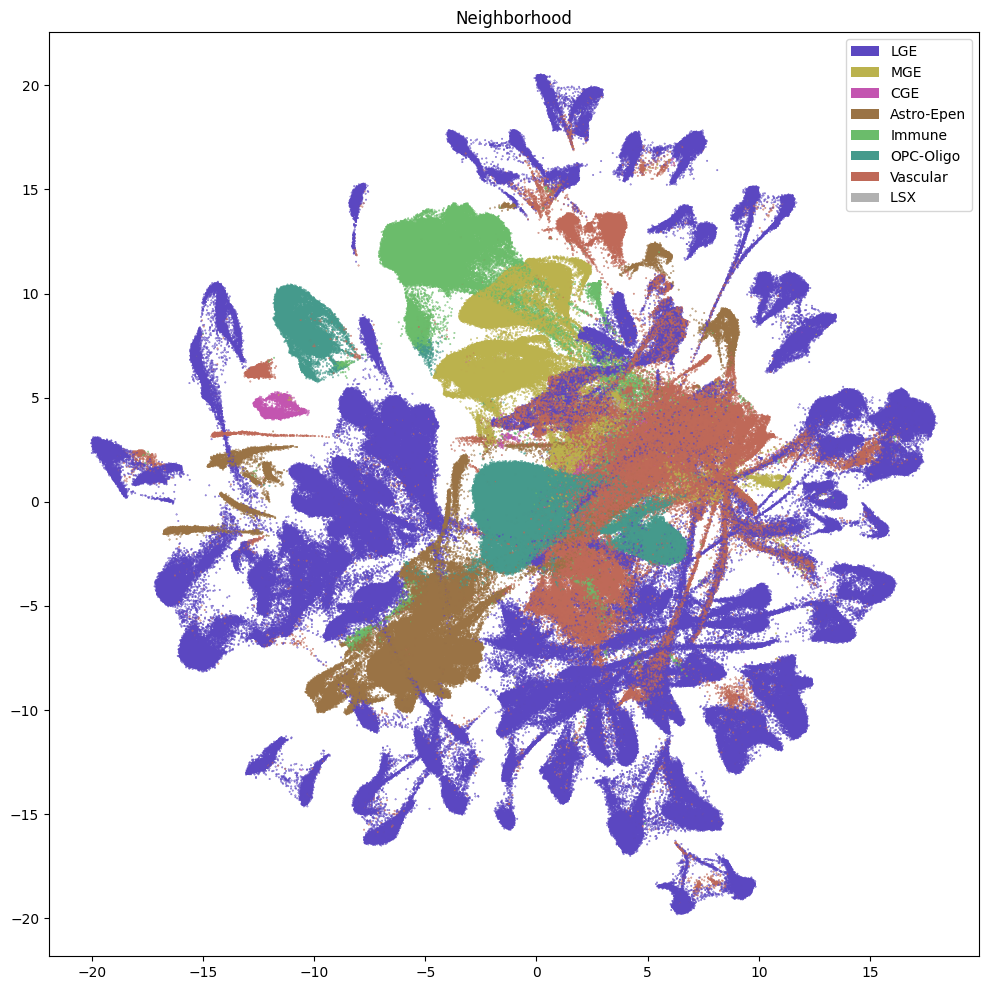

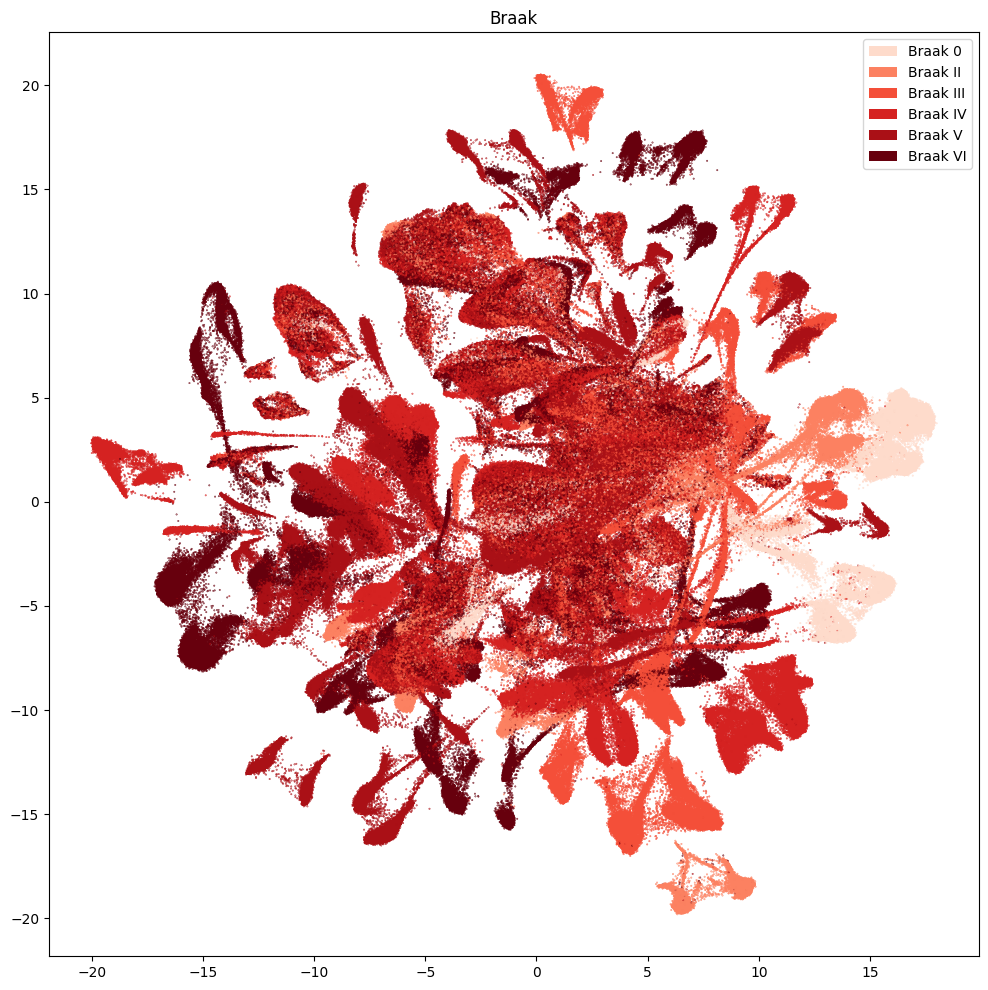

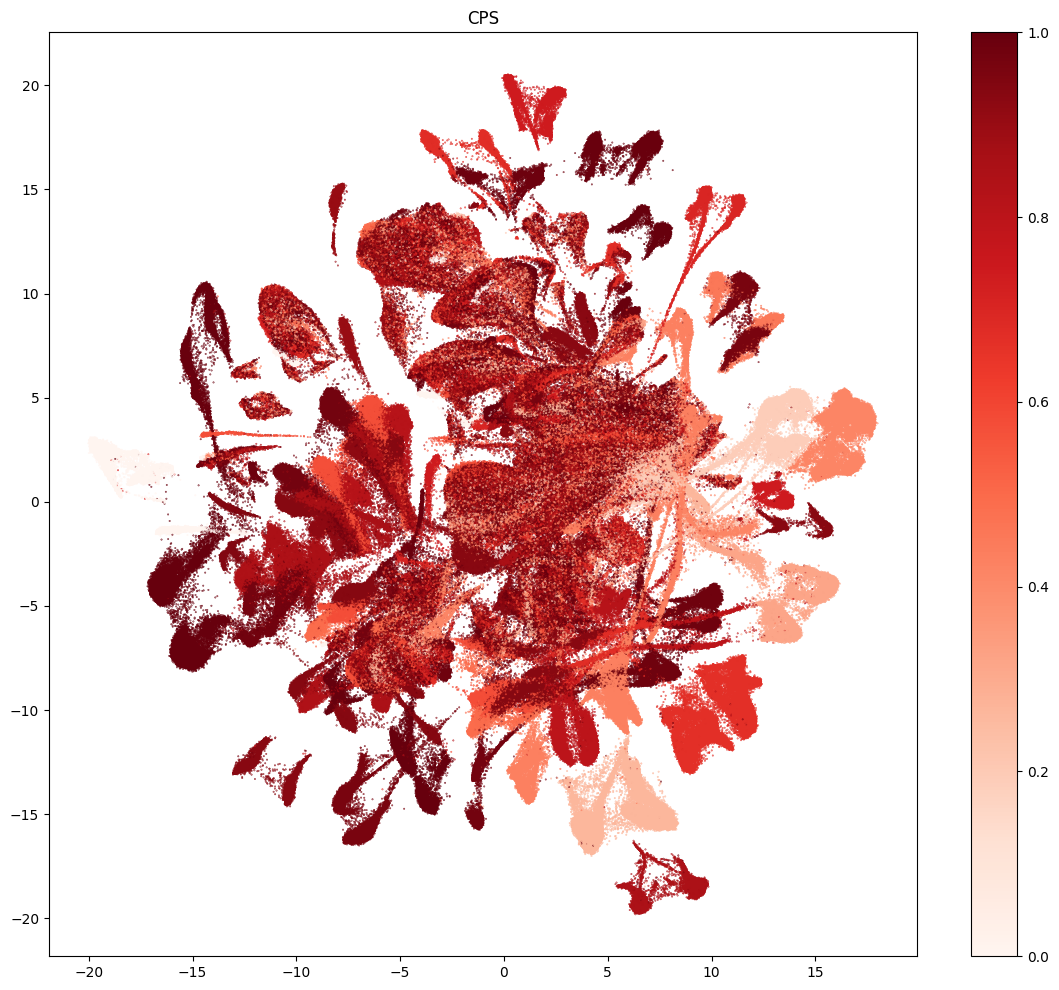

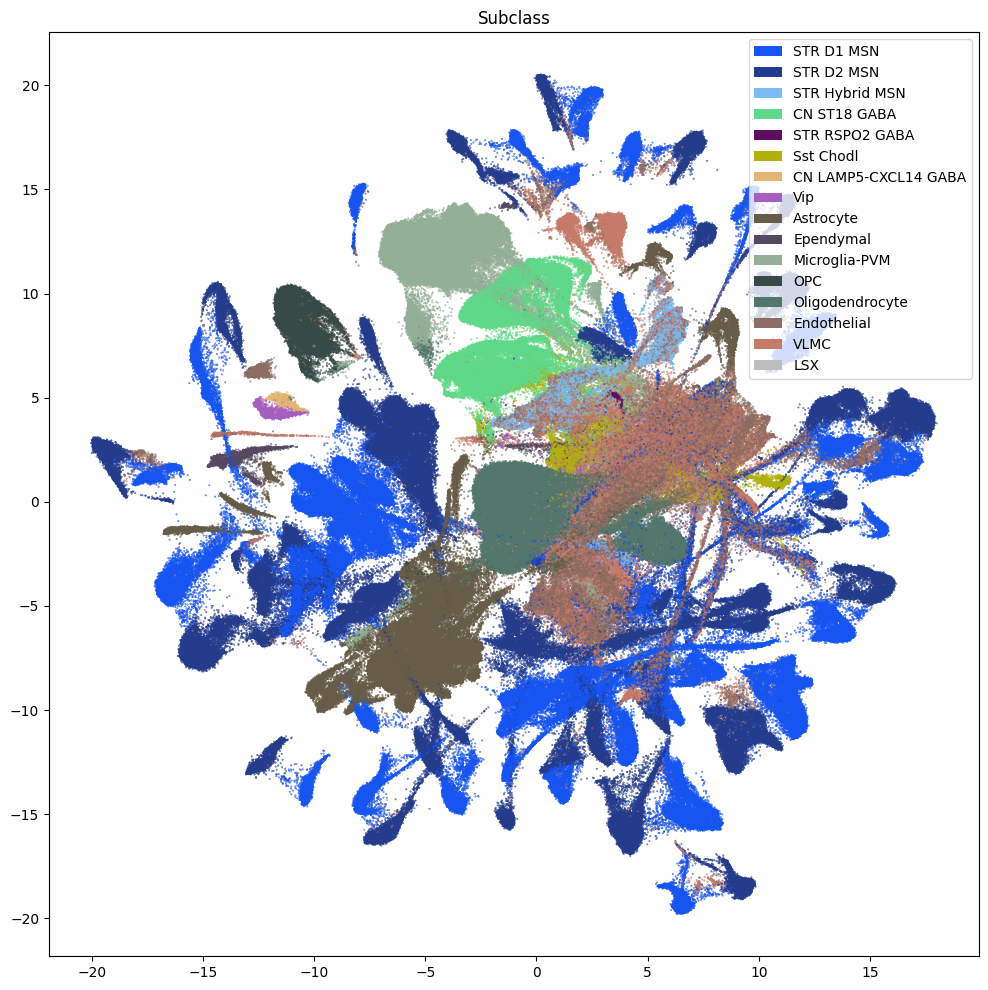

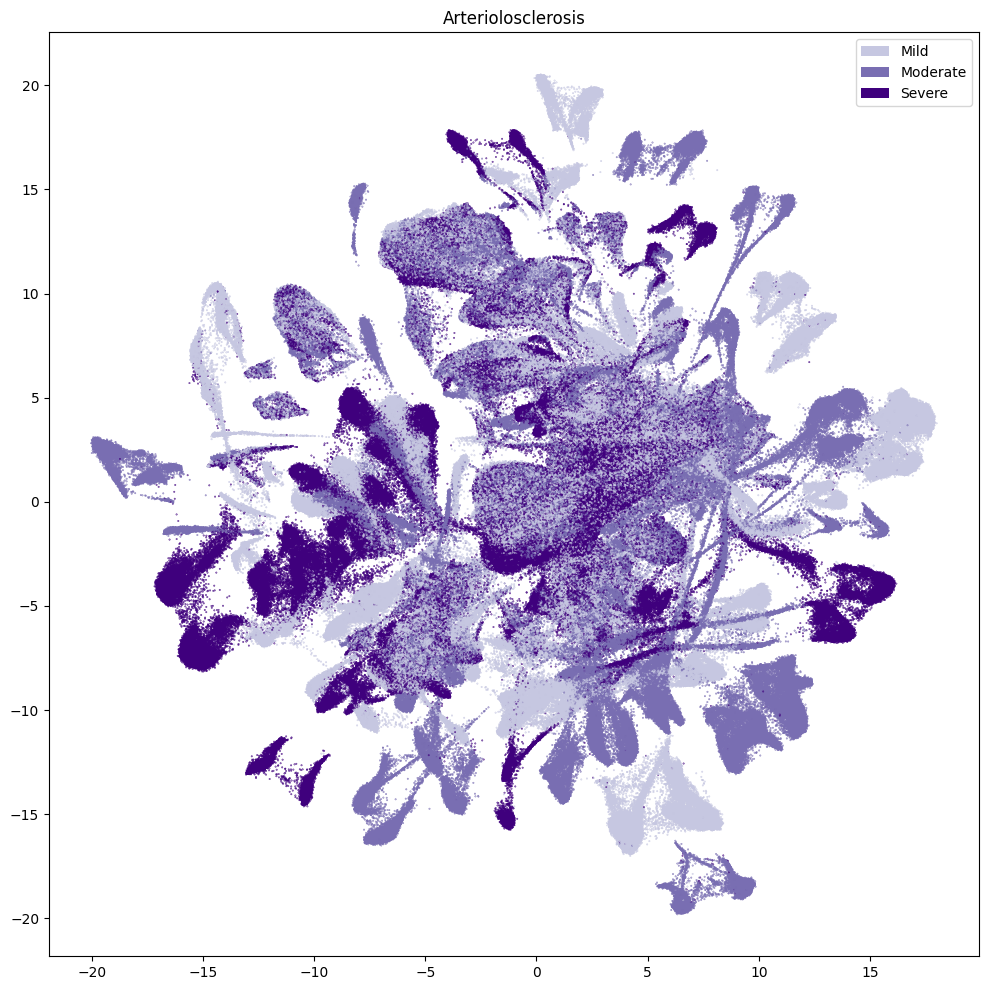

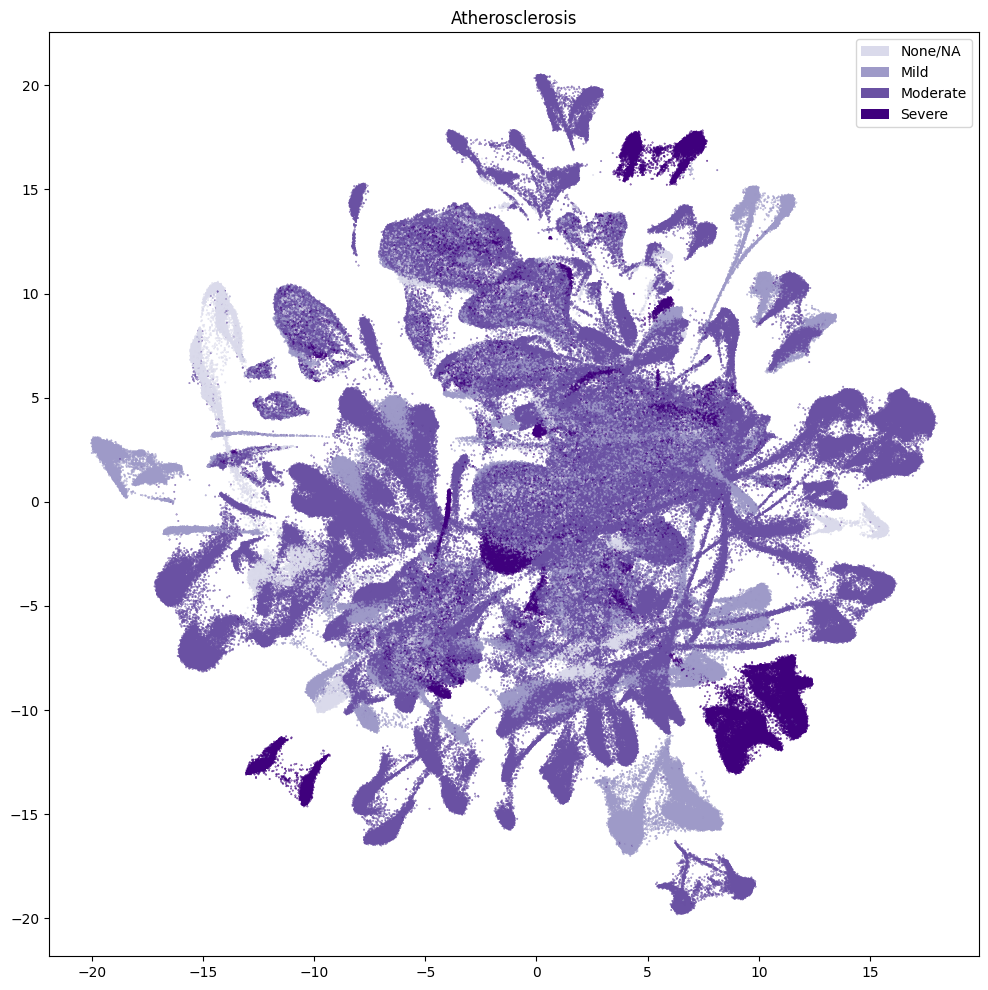

We define a small helper function plot_umap to visualize the cells on the UMAP. In the examples below we will plot associated cell information colorized by donor age, sex, region of interest etc.

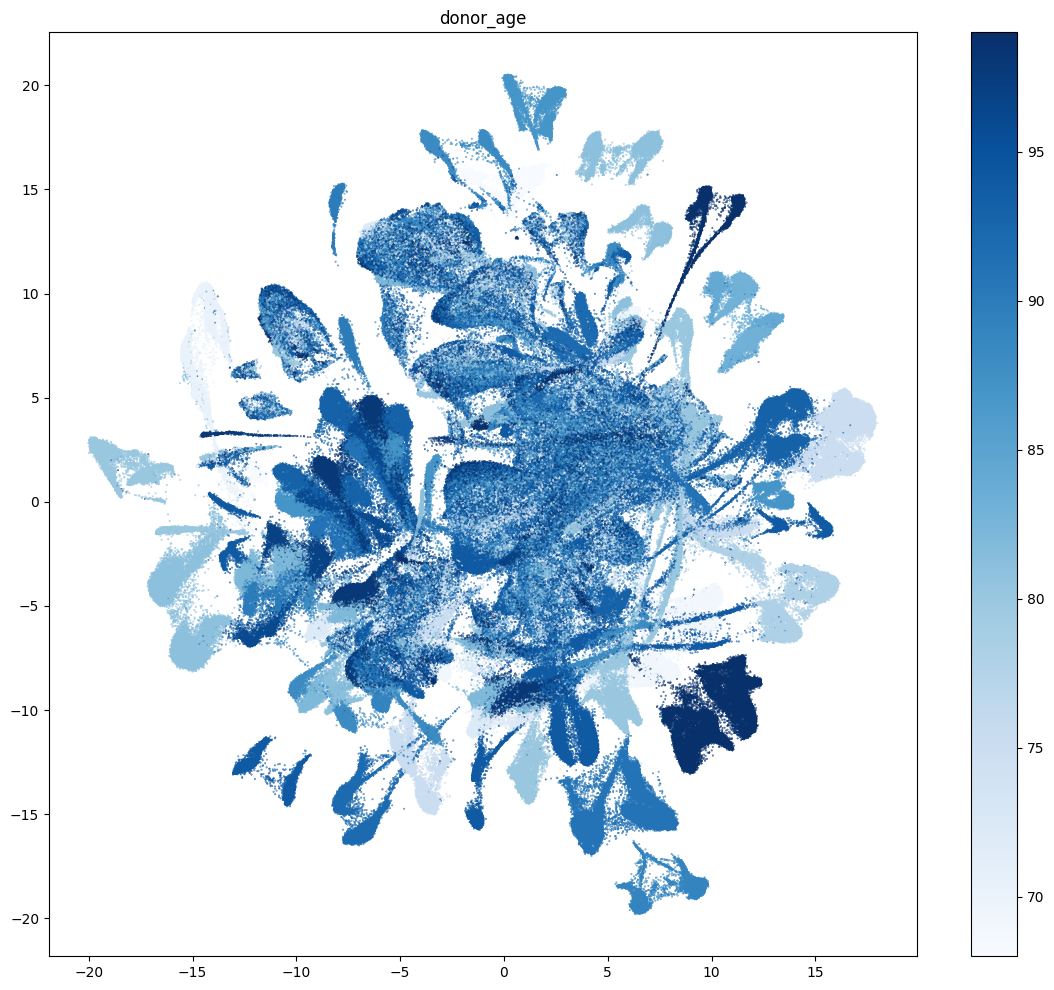

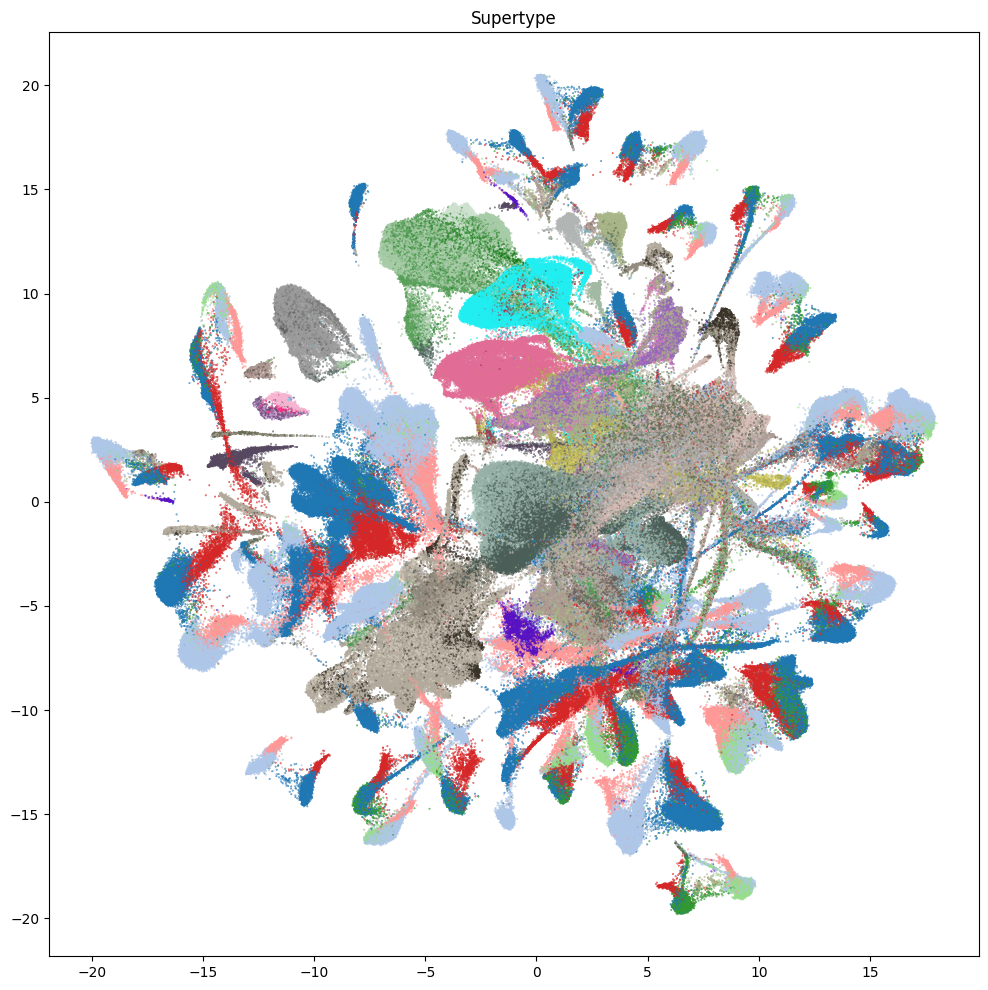

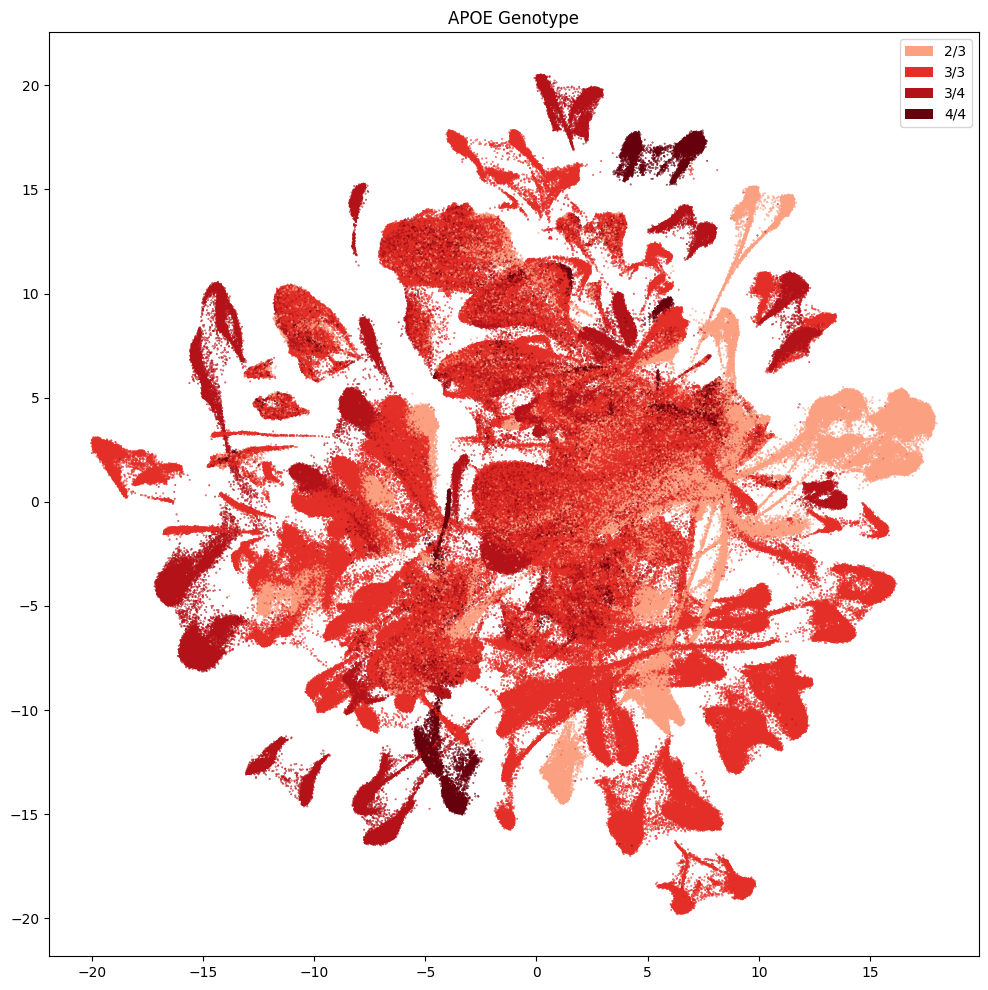

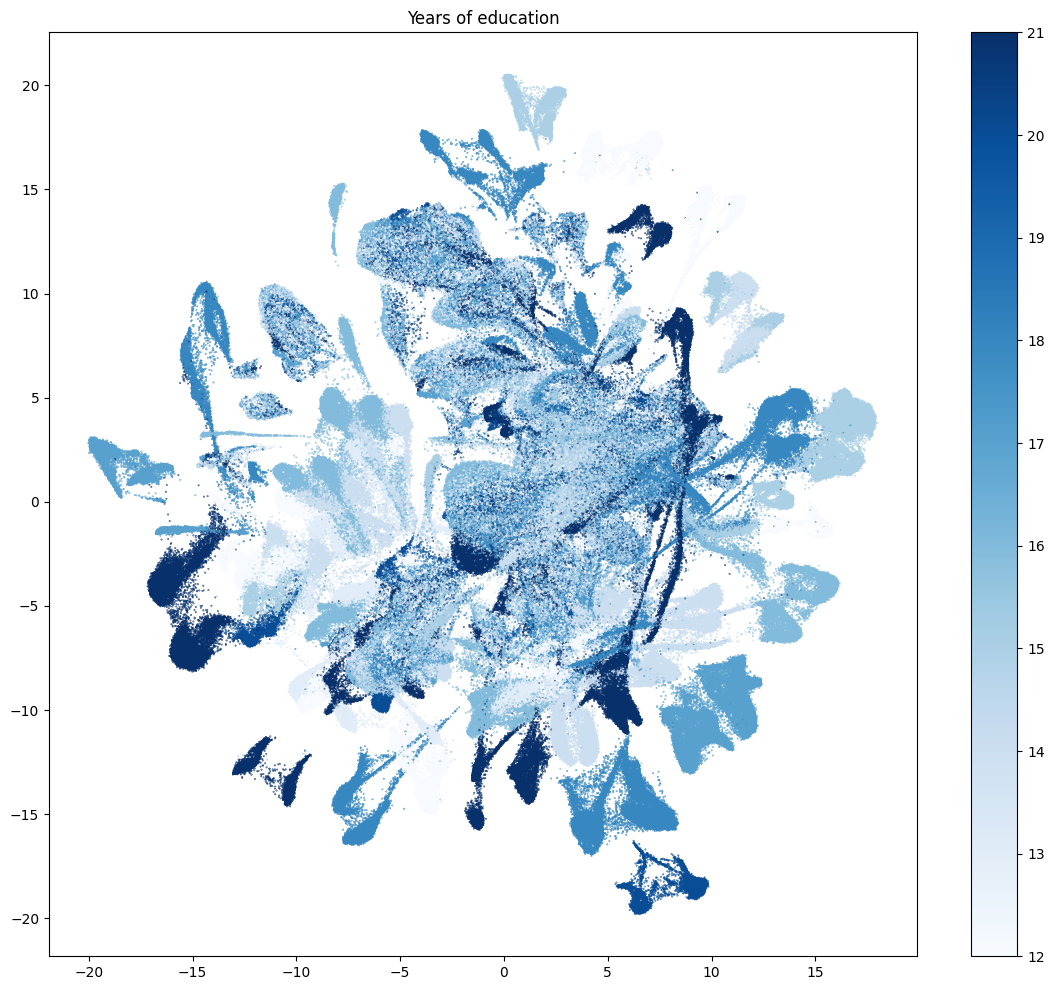

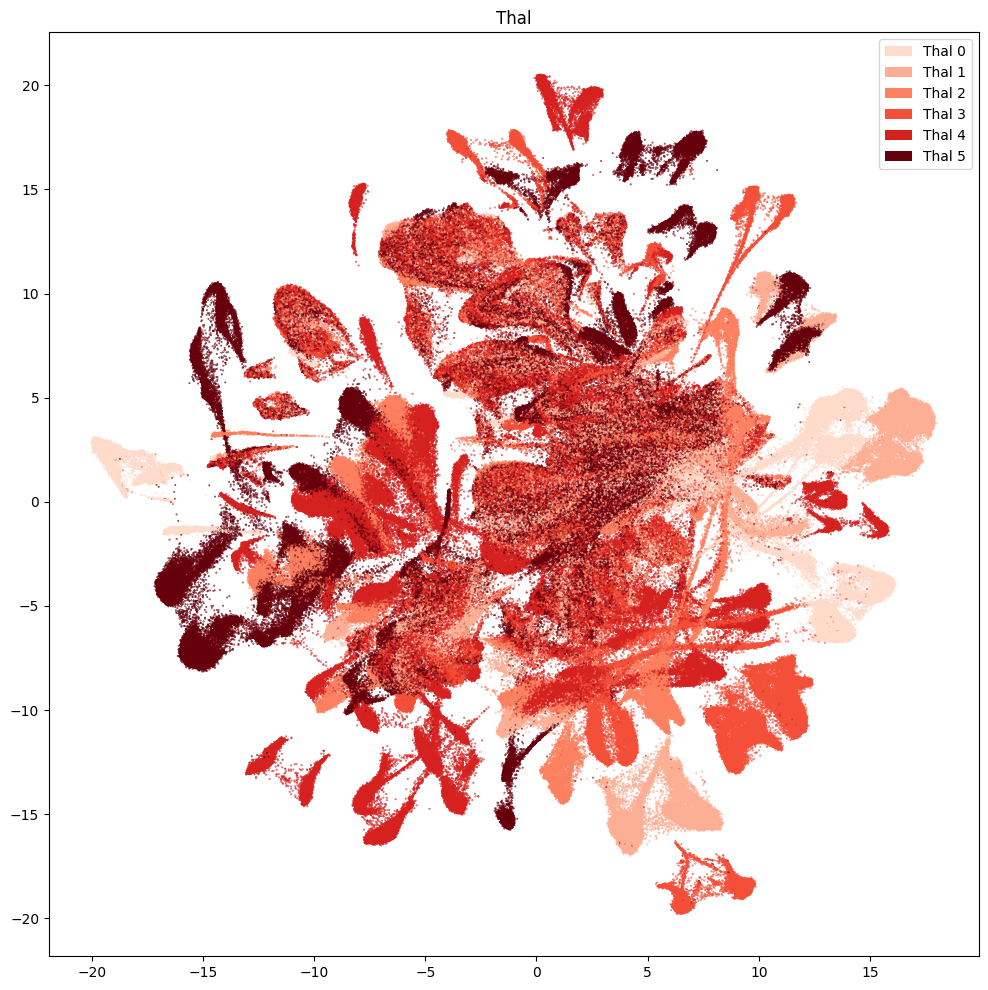

def plot_umap(
    xx: np.ndarray,
    yy: np.ndarray,
    cc: np.ndarray = None,
    val: np.ndarray = None,
    fig_width: float = 8,
    fig_height: float = 8,
    cmap: Optional[plt.Colormap] = None,
    labels: np.ndarray = None,
    term_orders: np.ndarray = None,
    colorbar: bool = False,
    sizes: np.ndarray = None,
    limit_plot: bool = True
 ) -> Tuple[plt.Figure, plt.Axes]:
    """
    Plot a scatter plot of the UMAP coordinates.

    Parameters
    ----------
    xx : array-like
        x-coordinates of the points to plot.
    yy : array-like
        y-coordinates of the points to plot.
    cc : array-like, optional
        colors of the points to plot. If None, the points will be colored by the values in `val`.
    val : array-like, optional
        values of the points to plot. If None, the points will be colored by the values in `cc`.
    fig_width : float, optional
        width of the figure in inches. Default is 8.
    fig_height : float, optional
        height of the figure in inches. Default is 8.
    cmap : str, optional
        colormap to use for coloring the points. If None, the points will be colored by the values in `cc`.
    labels : array-like, optional
        labels for the points to plot. If None, no labels will be added to the plot.
    term_orders : array-like, optional
        order of the labels for the legend. If None, the labels will be ordered by their appearance in `labels`.
    colorbar : bool, optional
        whether to add a colorbar to the plot. Default is False.
    sizes : array-like, optional
        sizes of the points to plot. If None, all points will have the same size.
    """
    if sizes is None:
        sizes = 1
    fig, ax = plt.subplots()
    fig.set_size_inches(fig_width, fig_height)

    if cmap is not None:
        scatt = ax.scatter(xx, yy, c=val, s=0.5, marker='.', cmap=cmap, alpha=sizes)
    elif cc is not None:
        scatt = ax.scatter(xx, yy, c=cc, s=0.5, marker='.', alpha=sizes)

    if labels is not None:
        from matplotlib.patches import Rectangle
        unique_label_colors = (labels + ',' + cc).unique()
        unique_labels = np.array([label_color.split(',')[0] for label_color in unique_label_colors])
        unique_colors = np.array([label_color.split(',')[1] for label_color in unique_label_colors])

        if term_orders is not None:
            unique_order = term_orders.unique()
            term_order = np.argsort(unique_order)
            unique_labels = unique_labels[term_order]
            unique_colors = unique_colors[term_order]

        rects = []
        for color in unique_colors:
            rects.append(Rectangle((0, 0), 1, 1, fc=color))

        legend = ax.legend(rects, unique_labels, loc=1)
        # ax.add_artist(legend)

    if colorbar:
        fig.colorbar(scatt, ax=ax)

    return fig, ax

Plot the various donor and library metadata available.

fig, ax = plot_umap(
    cell_extended['x'],
    cell_extended['y'],
    cc=cell_extended['donor_sex_color'],
    labels=cell_extended['donor_sex'],
    term_orders=cell_extended['donor_sex_order'],
    fig_width=12,
    fig_height=12
)
res = ax.set_title("donor_sex")
plt.show()

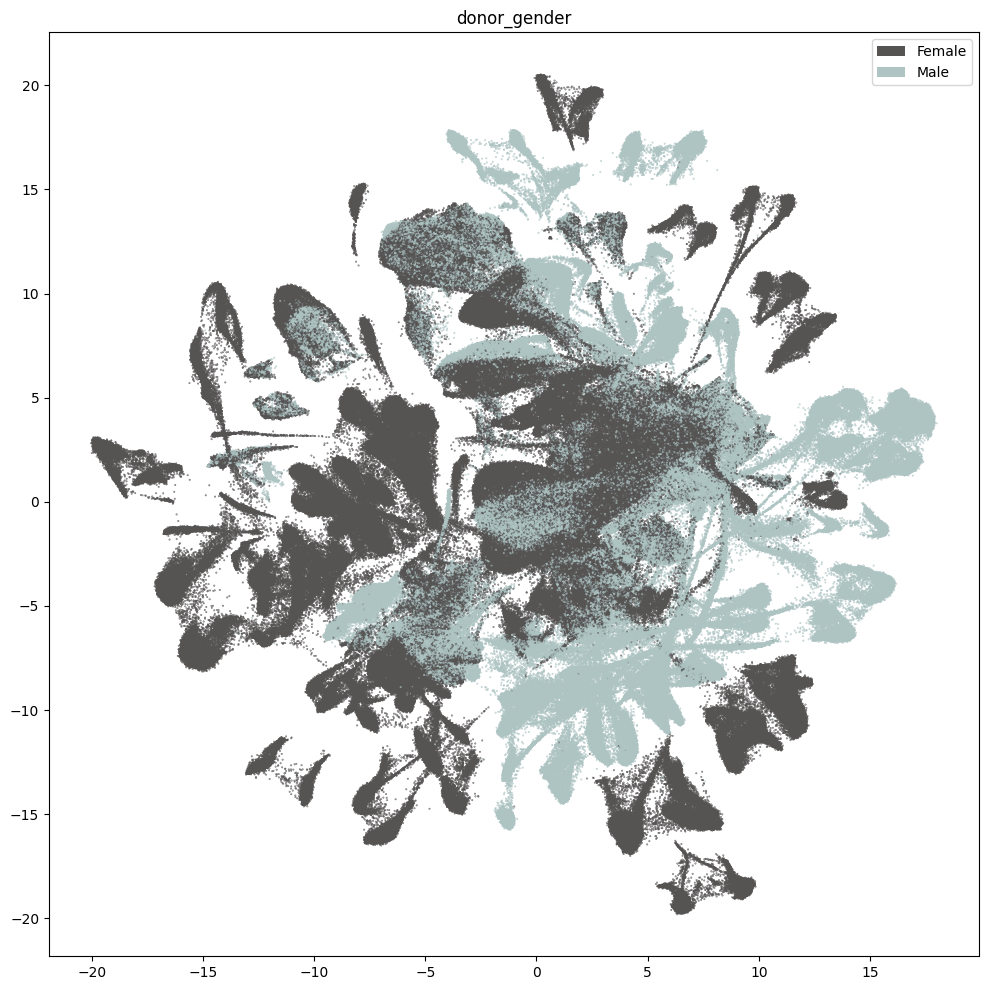

fig, ax = plot_umap(
    cell_extended['x'],
    cell_extended['y'],
    cc=cell_extended['donor_gender_color'],
    labels=cell_extended['donor_gender'],
    term_orders=cell_extended['donor_gender_order'],
    fig_width=12,
    fig_height=12
)
res = ax.set_title("donor_gender")
plt.show()

fig, ax = plot_umap(
    cell_extended['x'],
    cell_extended['y'],
    val=cell_extended['donor_age_value'],
    cmap=plt.cm.Blues,
    fig_width=14,
    fig_height=12,
    colorbar=True,
)
res = ax.set_title("donor_age")
plt.show()

fig, ax = plot_umap(
    cell_extended['x'],
    cell_extended['y'],
    val=cell_extended['Years of education'],
    cmap=plt.cm.Blues,
    fig_width=14,
    fig_height=12,
    colorbar=True,
)
res = ax.set_title("Years of education")
plt.show()

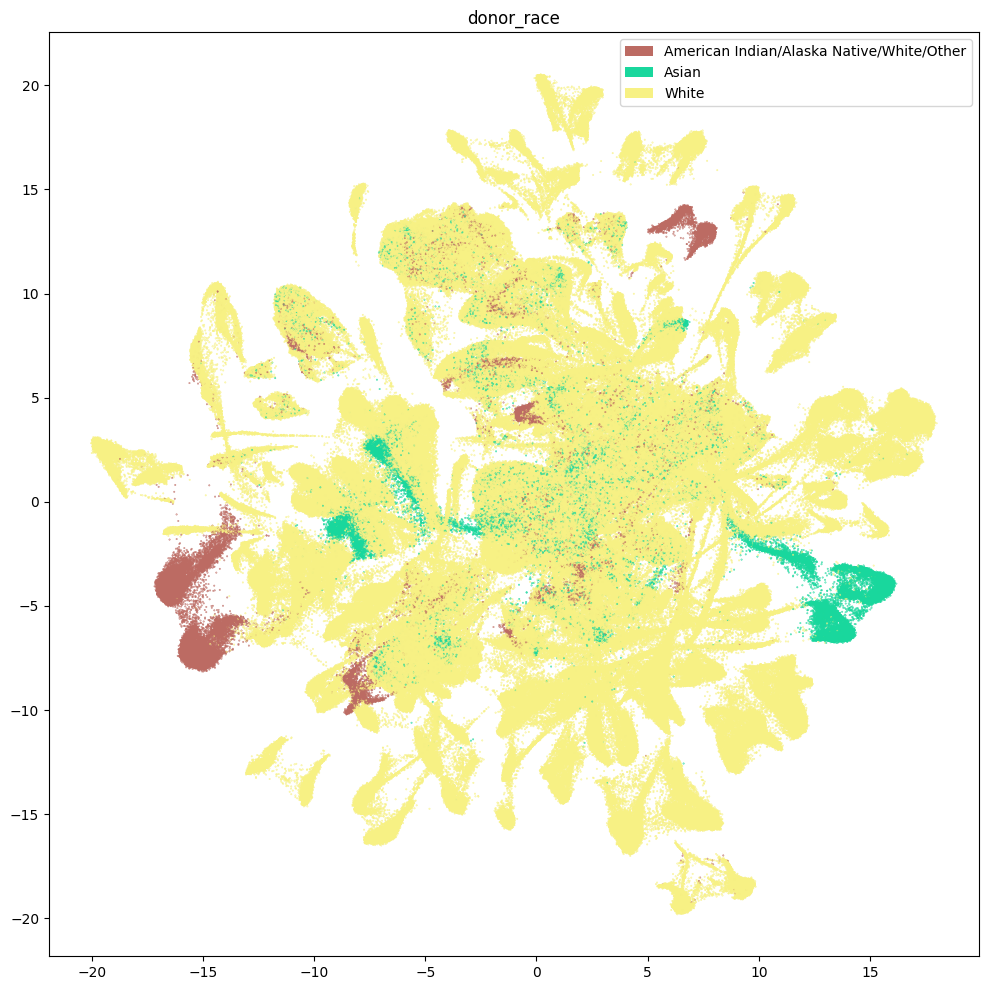

fig, ax = plot_umap(
    cell_extended['x'],
    cell_extended['y'],
    cc=cell_extended['donor_race_color'],
    labels=cell_extended['donor_race'],
    term_orders=cell_extended['donor_race_order'],
    fig_width=12,
    fig_height=12
)
res = ax.set_title("donor_race")
plt.show()

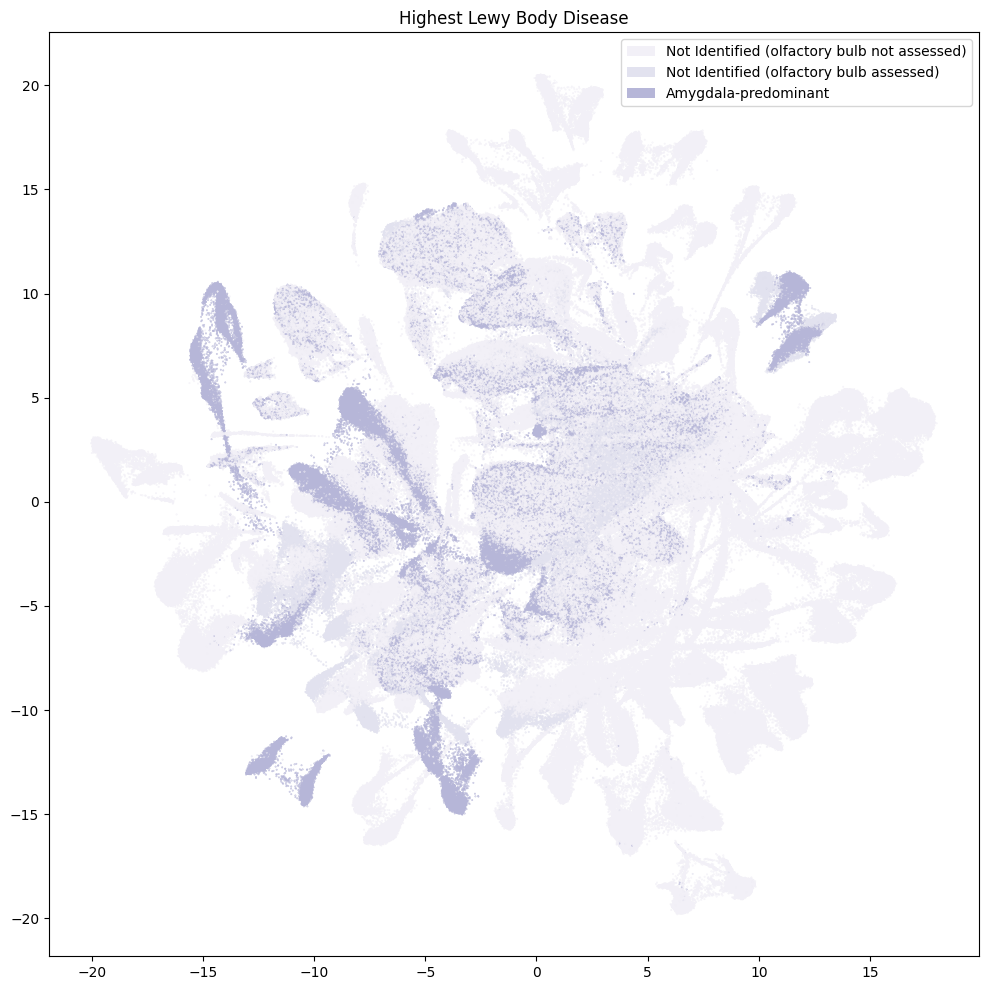

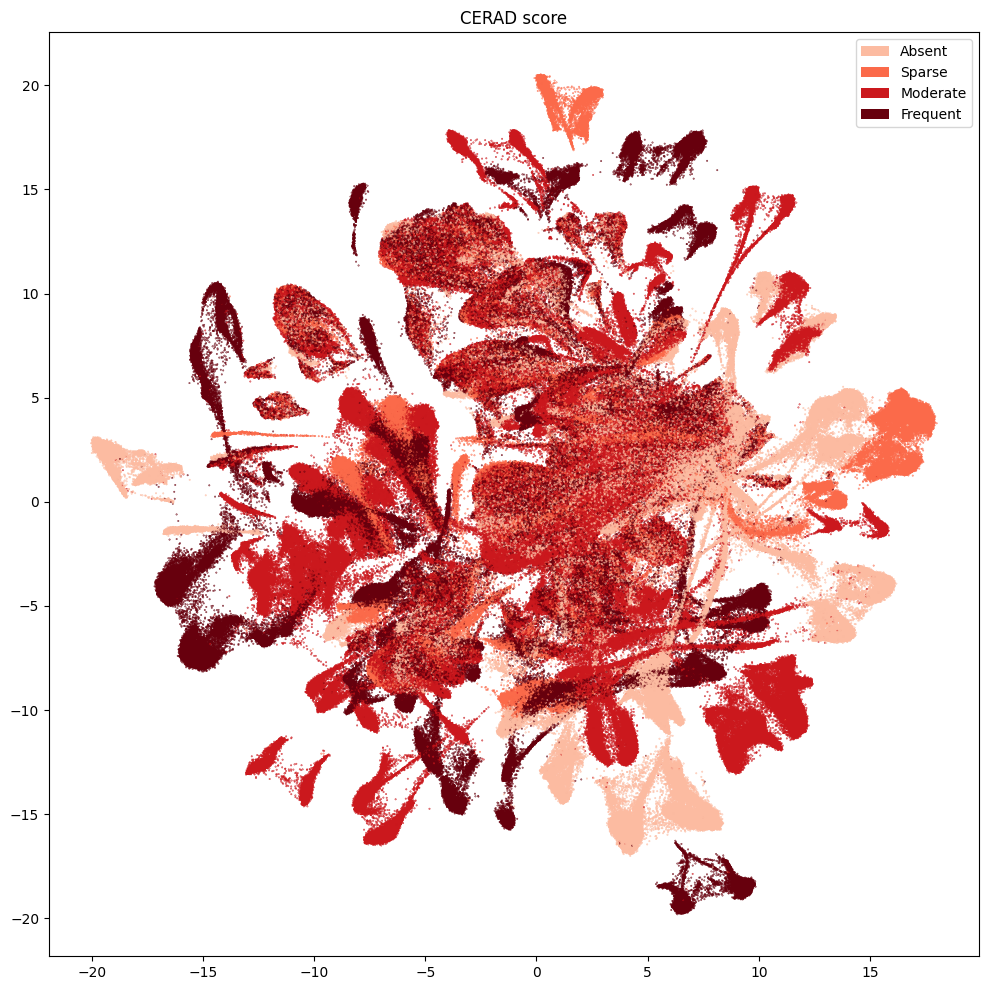

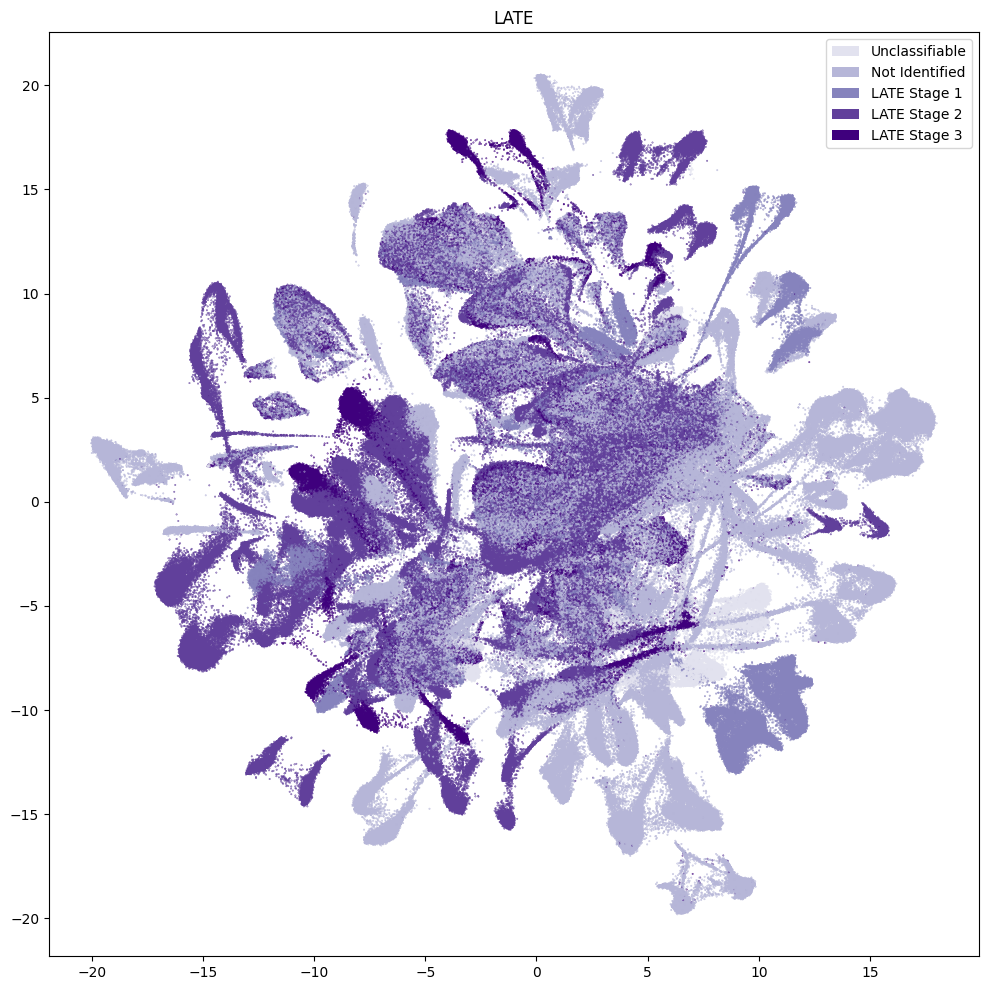

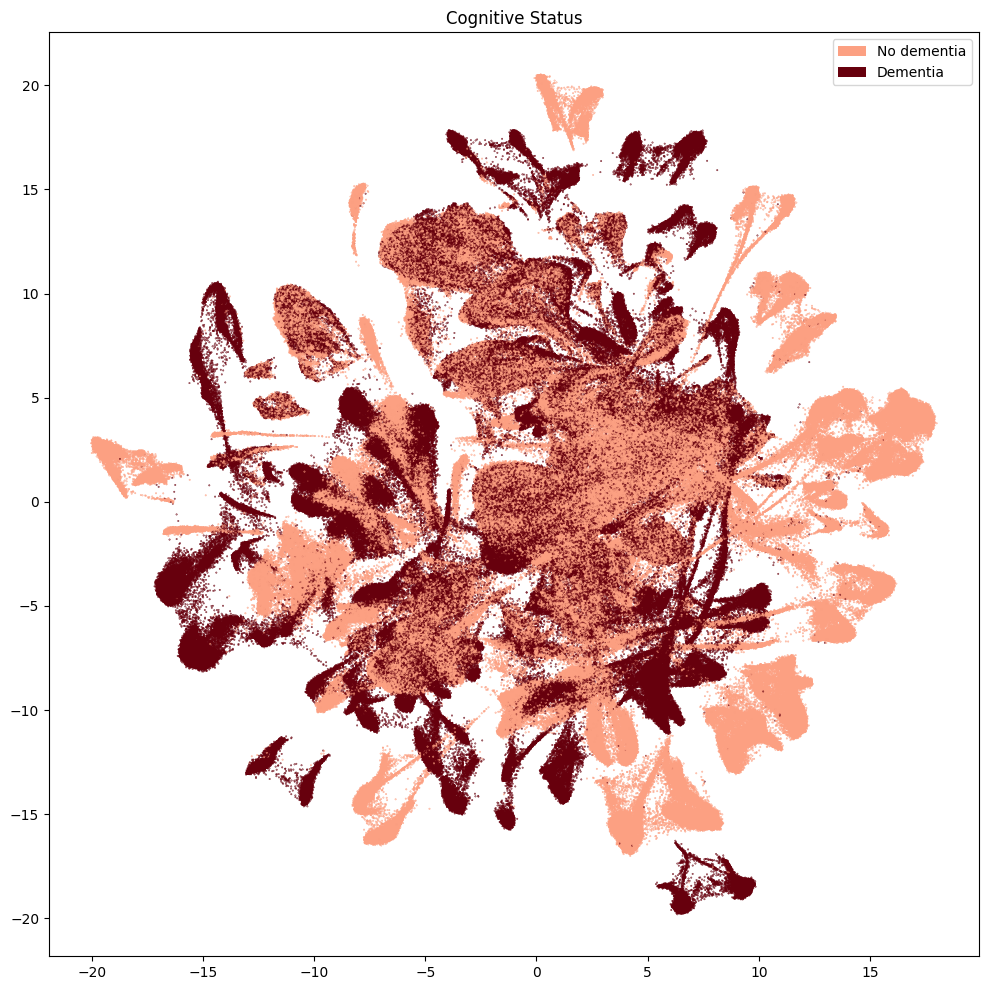

New we plot the UMAP with for the various disease markers in the data.

for disease_value in value_sets[value_sets['table'] == 'disease']['field'].unique():
    if disease_value == 'Severely Affected Donor':
        continue
    fig, ax = plot_umap(
        cell_extended['x'],
        cell_extended['y'],
        cc=cell_extended[f'{disease_value}_color'],
        labels=cell_extended[f'{disease_value}'],
        term_orders=cell_extended[f'{disease_value}_order'],
        fig_width=12,
        fig_height=12
    )
    res = ax.set_title(f"{disease_value}")
    plt.show()

Finally, we’ll plot the pseudo-progression scores (CPS) for these data.

fig, ax = plot_umap(
    cell_extended['x'],
    cell_extended['y'],
    val=cell_extended['CPS'],
    cmap=plt.cm.Reds,
    fig_width=14,
    fig_height=12,
    colorbar=True,
)
res = ax.set_title("CPS")
plt.show()

Taxonomy Information

The final set of metadata we load into our extended cell metadata file maps the cells into their assigned cluster in the taxonomy. We additionally load metadata for the clusters and compute useful information, such as the number of cells in each taxon at each level of the taxonomy. In this notebook cluster refers to the leaf node of the taxonomy as is the case throughout abc_atlas_access. In this taxonomy, the highest granularity cell type is called ‘supertype’; therefore, when you see the term ‘cluster’ below it refers to the leaf node of the taxonomy aka, the supertypes.

First, we load information associated with the lowest level in the taxonomy. This includes a useful alias value for each cluster as well as the number of cells in each supertype.

cluster = abc_cache.get_metadata_dataframe(
    directory='SEA-AD-CaH-taxonomy',
    file_name='cluster',
    dtype={'number_of_cells': 'Int64'}
).rename(columns={'label': 'cluster_annotation_term_label'}).set_index('cluster_annotation_term_label')
cluster.head()

cluster.csv: 100%|██████████| 1.80k/1.80k [00:00<00:00, 9.56kMB/s]

	cluster_alias	number_of_cells
cluster_annotation_term_label
CS20260701_SUPR_01	1	159711
CS20260701_SUPR_02	2	47339
CS20260701_SUPR_03	3	22901
CS20260701_SUPR_04	4	168087
CS20260701_SUPR_05	5	5031

Next, we load the table that describes the levels in the taxonomy from neighborhood at the highest to supertype at the lowest level.

cluster_annotation_term_set = abc_cache.get_metadata_dataframe(
    directory='SEA-AD-CaH-taxonomy',
    file_name='cluster_annotation_term_set'
).rename(columns={'label': 'cluster_annotation_term_label'})
cluster_annotation_term_set

cluster_annotation_term_set.csv: 100%|██████████| 222/222 [00:00<00:00, 1.61kMB/s]

	name	cluster_annotation_term_label	description	order	parent_term_set_label
0	Neighborhood	CCN20260701_LEVEL_0	Neighborhood	0	NaN
1	Subclass	CCN20260701_LEVEL_1	Subclass	1	CCN20260701_LEVEL_0
2	Supertype	CCN20260701_LEVEL_2	Supertype	2	CCN20260701_LEVEL_1

For the supertypes, we load information on the annotations for each supertype. This also includes the term order and color information which we will use to plot later.

cluster_annotation_term = abc_cache.get_metadata_dataframe(
    directory='SEA-AD-CaH-taxonomy',
    file_name='cluster_annotation_term',
).rename(columns={'label': 'cluster_annotation_term_label'}).set_index('cluster_annotation_term_label')
cluster_annotation_term

cluster_annotation_term.csv: 100%|██████████| 12.3k/12.3k [00:00<00:00, 101kMB/s]

	name	cluster_annotation_term_set_label	cluster_annotation_term_set_name	color_hex_triplet	term_order	term_set_order	parent_term_label	parent_term_name	parent_term_set_label	CCN20230508_label	CCN20250428_label
cluster_annotation_term_label
CS20260701_NEIG_04	Astro-Epen	CCN20260701_LEVEL_0	Neighborhood	#9A7345	4	0	NaN	NaN	NaN	NaN	NaN
CS20260701_NEIG_03	CGE	CCN20260701_LEVEL_0	Neighborhood	#C355B0	3	0	NaN	NaN	NaN	NaN	NaN
CS20260701_NEIG_05	Immune	CCN20260701_LEVEL_0	Neighborhood	#6BBC6B	5	0	NaN	NaN	NaN	NaN	NaN
CS20260701_NEIG_01	LGE	CCN20260701_LEVEL_0	Neighborhood	#5B47C1	1	0	NaN	NaN	NaN	NaN	NaN
CS20260701_NEIG_08	LSX	CCN20260701_LEVEL_0	Neighborhood	#B1B1B1	8	0	NaN	NaN	NaN	NaN	NaN
...	...	...	...	...	...	...	...	...	...	...	...
CS20260701_SUPR_30	Vip_23	CCN20260701_LEVEL_2	Supertype	#5A3D67	30	2	CS20260701_SCLA_08	Vip	CCN20260701_LEVEL_1	CS20230508_SUPT_0034	NaN
CS20260701_SUPR_31	Vip_4	CCN20260701_LEVEL_2	Supertype	#D0AEDC	31	2	CS20260701_SCLA_08	Vip	CCN20260701_LEVEL_1	CS20230508_SUPT_0022	NaN
CS20260701_SUPR_32	Vip_5	CCN20260701_LEVEL_2	Supertype	#C7A5D3	32	2	CS20260701_SCLA_08	Vip	CCN20260701_LEVEL_1	CS20230508_SUPT_0023	NaN
CS20260701_SUPR_33	Vip_6	CCN20260701_LEVEL_2	Supertype	#BE9DCA	33	2	CS20260701_SCLA_08	Vip	CCN20260701_LEVEL_1	CS20230508_SUPT_0024	NaN
CS20260701_SUPR_34	Vip_9	CCN20260701_LEVEL_2	Supertype	#B494C1	34	2	CS20260701_SCLA_08	Vip	CCN20260701_LEVEL_1	CS20230508_SUPT_0025	NaN

90 rows × 11 columns

Finally, we load the cluster to cluster annotation membership table. Each row in this table is a mapping between the subclusters and every level of the taxonomy it belongs to, including itself. We’ll use this table in a groupby to allow us to count up the number of clusters at each taxonomy level and sum the number of cells in each taxon in the taxonomy a all levels.

cluster_to_cluster_annotation_membership = abc_cache.get_metadata_dataframe(
    directory='SEA-AD-CaH-taxonomy',
    file_name='cluster_to_cluster_annotation_membership'
).set_index('cluster_annotation_term_label')
membership_with_cluster_info = cluster_to_cluster_annotation_membership.join(
    cluster.reset_index().set_index('cluster_alias')[['number_of_cells']],
    on='cluster_alias'
)
membership_with_cluster_info = membership_with_cluster_info.join(cluster_annotation_term, rsuffix='_anno_term').reset_index()
membership_groupby = membership_with_cluster_info.groupby(
    ['cluster_alias', 'cluster_annotation_term_set_name']
)
membership_with_cluster_info.head()

cluster_to_cluster_annotation_membership.csv: 100%|██████████| 12.4k/12.4k [00:00<00:00, 75.2kMB/s]

	cluster_annotation_term_label	cluster_annotation_term_set_name	cluster_annotation_term_name	cluster_alias	cluster_annotation_term_set_label	number_of_cells	name	cluster_annotation_term_set_label_anno_term	cluster_annotation_term_set_name_anno_term	color_hex_triplet	term_order	term_set_order	parent_term_label	parent_term_name	parent_term_set_label	CCN20230508_label	CCN20250428_label
0	CS20260701_NEIG_04	Neighborhood	Astro-Epen	35	CCN20260701_LEVEL_0	11849	Astro-Epen	CCN20260701_LEVEL_0	Neighborhood	#9A7345	4	0	NaN	NaN	NaN	NaN	NaN
1	CS20260701_NEIG_04	Neighborhood	Astro-Epen	36	CCN20260701_LEVEL_0	43115	Astro-Epen	CCN20260701_LEVEL_0	Neighborhood	#9A7345	4	0	NaN	NaN	NaN	NaN	NaN
2	CS20260701_NEIG_04	Neighborhood	Astro-Epen	37	CCN20260701_LEVEL_0	7424	Astro-Epen	CCN20260701_LEVEL_0	Neighborhood	#9A7345	4	0	NaN	NaN	NaN	NaN	NaN
3	CS20260701_NEIG_04	Neighborhood	Astro-Epen	38	CCN20260701_LEVEL_0	660	Astro-Epen	CCN20260701_LEVEL_0	Neighborhood	#9A7345	4	0	NaN	NaN	NaN	NaN	NaN
4	CS20260701_NEIG_04	Neighborhood	Astro-Epen	39	CCN20260701_LEVEL_0	2203	Astro-Epen	CCN20260701_LEVEL_0	Neighborhood	#9A7345	4	0	NaN	NaN	NaN	NaN	NaN

From the membership table, we create three tables via a groupby. First the name of each cluster and its parents.

# term_sets = abc_cache.get_metadata_dataframe(directory='WHB-taxonomy', file_name='cluster_annotation_term_set').set_index('label')
cluster_details = membership_groupby['cluster_annotation_term_name'].first().unstack()
cluster_details = cluster_details[cluster_annotation_term_set['name']] # order columns
cluster_details.fillna('Other', inplace=True)
cluster_details.head()

cluster_annotation_term_set_name	Neighborhood	Subclass	Supertype
cluster_alias
1	LGE	STR D1 MSN	STRd D1 Matrix MSN
2	LGE	STR D1 MSN	STRd D1 Striosome MSN
3	LGE	STR D1 MSN	STRv D1 MSN
4	LGE	STR D2 MSN	STRd D2 Matrix MSN
5	LGE	STR D2 MSN	STRd D2 StrioMat Hybrid MSN

Next the plotting order of each of the taxons and their parents.

cluster_order = membership_groupby['term_order'].first().unstack()
cluster_order.rename(
    columns={'Neighborhood': 'Neighborhood_order',
             'Subclass': 'Subclass_order',
             'Supertype': 'Supertype_order'},
    inplace=True
)
cluster_order.head()

cluster_annotation_term_set_name	Neighborhood_order	Subclass_order	Supertype_order
cluster_alias
1	1	1	1
2	1	1	2
3	1	1	3
4	1	2	4
5	1	2	5

Finally, the colors we will use to plot for each of the unique taxons at all levels.

cluster_colors = membership_groupby['color_hex_triplet'].first().unstack()
cluster_colors = cluster_colors[cluster_annotation_term_set['name']]
cluster_colors.head()

cluster_annotation_term_set_name	Neighborhood	Subclass	Supertype
cluster_alias
1	#5B47C1	#1655f2	#1f77b4
2	#5B47C1	#1655f2	#d62728
3	#5B47C1	#1655f2	#339933
4	#5B47C1	#253c8c	#aec7e8
5	#5B47C1	#253c8c	#5713c3

Next, we bring it all together by loading the mapping of cells to supertype and join into our final metadata table.

cell_to_cluster_membership = abc_cache.get_metadata_dataframe(
    directory='SEA-AD-CaH-taxonomy',
    file_name='cell_to_cluster_membership',
).set_index('cell_label')
cell_to_cluster_membership.head()

cell_to_cluster_membership.csv: 100%|██████████| 42.1M/42.1M [00:01<00:00, 23.1MMB/s]

	cluster_alias	label
cell_label
AAACCCAAGAATCTAG-1336_B04	4	CS20260701_SUPR_04
AAACCCAAGCACAAAT-1336_B04	1	CS20260701_SUPR_01
AAACCCAAGGGACTGT-1336_B04	63	CS20260701_SUPR_63
AAACCCACAATTTCCT-1336_B04	44	CS20260701_SUPR_44
AAACCCACAGCAATTC-1336_B04	60	CS20260701_SUPR_60

We merge this table with information from our taxons.

cell_extended = cell_extended.join(cell_to_cluster_membership, rsuffix='_cell_to_cluster_membership', how='inner')
cell_extended = cell_extended.join(cluster_details, on='cluster_alias')
cell_extended = cell_extended.join(cluster_colors, on='cluster_alias', rsuffix='_color')
cell_extended = cell_extended.join(cluster_order, on='cluster_alias', rsuffix='_order')

del cell_to_cluster_membership

cell_extended.head()

	cell_barcode	barcoded_cell_sample_label	library_label	alignment_job_id	doublet_score	umi_count	Used in analysis	donor_label	exp_component_name	feature_matrix_label	...	label	Neighborhood	Subclass	Supertype	Neighborhood_color	Subclass_color	Supertype_color	Neighborhood_order	Subclass_order	Supertype_order
cell_label
CTTGATTGTGGAACAC-1796_A02	CTTGATTGTGGAACAC	1796_A02	L8HX_230803_02_D08	487b2a941fe5a47c12825a77b1a61f11737ac39d	0.00	7149.0	False	H20.33.020	CTTGATTGTGGAACAC-L8HX_230803_02_D08-NY-TX4091-2	CaH-10X	...	CS20260701_SUPR_01	LGE	STR D1 MSN	STRd D1 Matrix MSN	#5B47C1	#1655f2	#1f77b4	1	1	1
TGTTCTAGTTGGACTT-1257_B01	TGTTCTAGTTGGACTT	1257_B01	L8HX_220519_03_A03	1181938672	0.00	6598.0	True	H20.33.012	TGTTCTAGTTGGACTT-L8HX_220519_03_A03-1181938672	CaH-10X	...	CS20260701_SUPR_44	Immune	Microglia-PVM	Micro-PVM_2	#6BBC6B	#94AF97	#A8CCA8	5	11	44
AGGTGTTCAAGACAAT-1190_B02	AGGTGTTCAAGACAAT	1190_B02	L8HX_220407_03_B12	1173083445	0.00	8317.0	True	H20.33.033	AGGTGTTCAAGACAAT-L8HX_220407_03_B12-1173083445	CaH-10X	...	CS20260701_SUPR_44	Immune	Microglia-PVM	Micro-PVM_2	#6BBC6B	#94AF97	#A8CCA8	5	11	44
CCCAACTCATACAGAA-1190_C02	CCCAACTCATACAGAA	1190_C02	L8HX_220407_03_C12	1173083446	0.06	33028.0	True	H21.33.039	CCCAACTCATACAGAA-L8HX_220407_03_C12-1173083446	CaH-10X	...	CS20260701_SUPR_37	Astro-Epen	Astrocyte	Astro_3	#9A7345	#665C47	#938C7F	4	9	37
CAATGACTCCAGGTCA-1476_A06	CAATGACTCCAGGTCA	1476_A06	L8XR_221027_03_H01	1225051613	0.00	26261.0	True	H20.33.025	CAATGACTCCAGGTCA-L8XR_221027_03_H01-1225051613	CaH-10X	...	CS20260701_SUPR_10	MGE	CN ST18 GABA	STR FS PTHLH-PVALB GABA	#BBB24D	#5fd989	#e16c95	2	4	10

5 rows × 107 columns

print_column_info(cell_extended)

Number of unique cell_barcode = 804174
Number of unique barcoded_cell_sample_label = 64
Number of unique library_label = 64
Number of unique alignment_job_id = 66
Number of unique doublet_score = 876
Number of unique umi_count = 111595
Number of unique Used in analysis = 2 [False, True]
Number of unique donor_label = 41
Number of unique exp_component_name = 886037
Number of unique feature_matrix_label = 1 ['CaH-10X']
Number of unique dataset_label = 1 ['SEA-AD-CaH-10X']
Number of unique donor_species = 1 ['NCBITaxon:9606']
Number of unique species_scientific_name = 1 ['Homo sapiens']
Number of unique species_genus = 1 ['Human']
Number of unique donor_sex = 2 ['Female', 'Male']
Number of unique donor_age = 23 ['68 yrs', '69 yrs', '70 yrs', '72 yrs', '75 yrs', '78 yrs', '80 yrs', '81 yrs', '82 yrs', '83 yrs', '84 yrs', '87 yrs', '88 yrs', '89 yrs', '90 yrs', '91 yrs', '92 yrs', '93 yrs', '94 yrs', '96 yrs', '97 yrs', '98 yrs', '99 yrs']
Number of unique donor_age_value = 23 [68, 69, 70, 72, 75, 78, 80, 81, 82, 83, 84, 87, 88, 89, 90, 91, 92, 93, 94, 96, 97, 98, 99]
Number of unique donor_age_unit = 1 ['years']
Number of unique donor_gender = 2 ['Female', 'Male']
Number of unique Race (choice=White) = 2 ['Checked', 'Unchecked']
Number of unique Race (choice=Black/ African American) = 1 ['Unchecked']
Number of unique Race (choice=Asian) = 2 ['Checked', 'Unchecked']
Number of unique Race (choice=American Indian/ Alaska Native) = 2 ['Checked', 'Unchecked']
Number of unique Race (choice=Native Hawaiian or Pacific Islander) = 1 ['Unchecked']
Number of unique Race (choice=Unknown or unreported) = 1 ['Unchecked']
Number of unique Race (choice=Other) = 2 ['Checked', 'Unchecked']
Number of unique Hispanic/Latino = 3 ['No', 'Unknown', 'Yes']
Number of unique specify other race = 1 ['Mixed']
Number of unique Highest level of education = 5 ['Bachelors', 'Graduate (PhD/Masters)', 'High School', 'Professional', 'Trade School/ Tech School']
Number of unique Years of education = 9 [12, 13, 14, 15, 16, 17, 18, 20, 21]
Number of unique PMI = 35
Number of unique Fresh Brain Weight = 37
Number of unique Brain pH = 11 [6.0, 6.2, 6.4, 6.5, 6.6, 6.7, 6.8, 7.0, 7.2, 7.4, 7.6]
Number of unique Primary Study Name = 2 ['ACT', 'ADRC Clinical Core']
Number of unique donor_race = 3 ['American Indian/Alaska Native/White/Other', 'Asian', 'White']
Number of unique library_method = 2 ['10xMultiome;GEX', '10xV3.1_HT']
Number of unique barcoded_cell_sample_label_library_table = 64
Number of unique enrichment_population = 4 ['45% NeuN+, 55% NeuN-', '50% NeuN+, 50% NeuN-', '62% NeuN+, 38% NeuN-', '70% NeuN+, 30% NeuN-']
Number of unique cell_specimen_type = 1 ['Nuclei']
Number of unique parcellation_term_identifier = 1 ['DHBA:10335']
Number of unique region_of_interest_label = 1 ['CaH']
Number of unique region_of_interest_name = 1 ['head of caudate']
Number of unique Brain Region = 1 ['CaH']
Number of unique donor_label_library_table = 41
Number of unique Overall AD neuropathological Change = 4 ['High', 'Intermediate', 'Low', 'Not AD']
Number of unique Thal = 6 ['Thal 0', 'Thal 1', 'Thal 2', 'Thal 3', 'Thal 4', 'Thal 5']
Number of unique Braak = 6 ['Braak 0', 'Braak II', 'Braak III', 'Braak IV', 'Braak V', 'Braak VI']
Number of unique CERAD score = 4 ['Absent', 'Frequent', 'Moderate', 'Sparse']
Number of unique Overall CAA Score = 3 ['Mild', 'Moderate', 'Not identified']
Number of unique Highest Lewy Body Disease = 3 ['Amygdala-predominant', 'Not Identified (olfactory bulb assessed)', 'Not Identified (olfactory bulb not assessed)']
Number of unique Total Microinfarcts (not observed grossly) = 3 [0, 1, 2]
Number of unique Total microinfarcts in screening sections = 3 [0, 1, 2]
Number of unique Atherosclerosis = 4 ['Mild', 'Moderate', 'None/NA', 'Severe']
Number of unique Arteriolosclerosis = 3 ['Mild', 'Moderate', 'Severe']
Number of unique LATE = 5 ['LATE Stage 1', 'LATE Stage 2', 'LATE Stage 3', 'Not Identified', 'Unclassifiable']
Number of unique Cognitive Status = 2 ['Dementia', 'No dementia']
Number of unique Last CASI Score = 19 [68.0, 70.0, 71.0, 75.0, 77.0, 79.0, 80.0, 85.0, 88.0, 89.0, 91.0, 92.0, 93.0, 94.0, 95.0, 96.0, 97.0, 98.0, 99.0]
Number of unique Interval from last CASI in months = 28 [2.4, 2.7, 3.5, 6.7, 7.8, 8.6, 11.4, 12.0, 14.5, 18.2, 18.6, 21.2, 21.8, 22.3, 22.5, 24.2, 25.8, 27.7, 28.2, 30.0, 35.1, 37.8, 39.9, 48.0, 48.6, 50.2, 81.0, 117.6]
Number of unique Last MMSE Score = 12 [14.0, 18.0, 20.0, 21.0, 22.0, 23.0, 25.0, 26.0, 27.0, 28.0, 29.0, 30.0]
Number of unique Interval from last MMSE in months = 34
Number of unique Last MOCA Score = 6 [4.0, 7.0, 17.0, 20.0, 21.0, 25.0]
Number of unique Interval from last MOCA in months = 7 [10.1, 11.1, 39.5, 41.2, 45.1, 51.3, 62.2]
Number of unique APOE Genotype = 4 ['2/3', '3/3', '3/4', '4/4']
Number of unique CPS = 41
Number of unique CPS_AT8 = 41
Number of unique CPS_6E10 = 41
Number of unique region_of_interest_label_color = 1 ['#91A06E']
Number of unique region_of_interest_label_order = 1 [2]
Number of unique APOE Genotype_color = 4 ['#67000d', '#b21218', '#e32f27', '#fca082']
Number of unique APOE Genotype_order = 4 [2, 4, 5, 6]
Number of unique Arteriolosclerosis_color = 3 ['#3f007d', '#796eb2', '#c6c7e1']
Number of unique Arteriolosclerosis_order = 3 [1, 2, 3]
Number of unique Atherosclerosis_color = 4 ['#3f007d', '#6a51a3', '#9e9ac8', '#dadaeb']
Number of unique Atherosclerosis_order = 4 [1, 2, 3, 4]
Number of unique Braak_color = 6 ['#67000d', '#aa1016', '#d52221', '#f44f39', '#fc8161', '#fedbcb']
Number of unique Braak_order = 6 [1, 3, 4, 5, 6, 7]
Number of unique CERAD score_color = 4 ['#67000d', '#cb181d', '#fb6a4a', '#fcbba1']
Number of unique CERAD score_order = 4 [1, 2, 3, 4]
Number of unique Cognitive Status_color = 2 ['#67000d', '#fca082']
Number of unique Cognitive Status_order = 2 [1, 3]
Number of unique LATE_color = 5 ['#3f007d', '#61409b', '#8683bd', '#b6b6d8', '#e2e2ef']
Number of unique LATE_order = 5 [1, 2, 3, 4, 5]
Number of unique Highest Lewy Body Disease_color = 3 ['#b6b6d8', '#e2e2ef', '#f2f0f7']
Number of unique Highest Lewy Body Disease_order = 3 [1, 2, 4]
Number of unique Overall AD neuropathological Change_color = 4 ['#67000d', '#cb181d', '#fb6a4a', '#fcbba1']
Number of unique Overall AD neuropathological Change_order = 4 [1, 2, 3, 4]
Number of unique Thal_color = 6 ['#67000d', '#d52221', '#f44f39', '#fc8161', '#fcaf94', '#fedbcb']
Number of unique Thal_order = 6 [1, 2, 3, 4, 5, 7]
Number of unique donor_sex_color = 2 ['#565353', '#ADC4C3']
Number of unique donor_sex_order = 2 [1, 2]
Number of unique donor_gender_color = 2 ['#565353', '#ADC4C3']
Number of unique donor_gender_order = 2 [1, 2]
Number of unique donor_race_color = 3 ['#19d79d', '#bc6b63', '#f7f184']
Number of unique donor_race_order = 3 [64, 65, 125]
Number of unique x = 870823
Number of unique y = 871363
Number of unique cluster_alias = 66
Number of unique label = 66
Number of unique Neighborhood = 8 ['Astro-Epen', 'CGE', 'Immune', 'LGE', 'LSX ', 'MGE', 'OPC-Oligo', 'Vascular']
Number of unique Subclass = 16 ['Astrocyte', 'CN LAMP5-CXCL14 GABA', 'CN ST18 GABA', 'Endothelial', 'Ependymal', 'LSX', 'Microglia-PVM', 'OPC', 'Oligodendrocyte', 'STR D1 MSN', 'STR D2 MSN', 'STR Hybrid MSN', 'STR RSPO2 GABA', 'Sst Chodl', 'VLMC', 'Vip']
Number of unique Supertype = 66
Number of unique Neighborhood_color = 8 ['#459A8C', '#5B47C1', '#6BBC6B', '#9A7345', '#B1B1B1', '#BBB24D', '#BF6958', '#C355B0']
Number of unique Subclass_color = 16 ['#1655f2', '#253c8c', '#374A45', '#53776C', '#564860', '#5b0e63', '#5fd989', '#665C47', '#79bdf4', '#8D6C62', '#94AF97', '#A45FBF', '#B1B10C', '#BEBEBE', '#C67A6A', '#e5b672']
Number of unique Supertype_color = 66
Number of unique Neighborhood_order = 8 [1, 2, 3, 4, 5, 6, 7, 8]
Number of unique Subclass_order = 16 [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16]
Number of unique Supertype_order = 66

Plotting the taxonomy

Now that we have our cells with associated taxonomy information, we’ll plot them into the UMAP we showed previously.

Below we plot the taxonomy mapping of the cells for each level in the taxonomy.

fig, ax = plot_umap(
    cell_extended['x'],
    cell_extended['y'],
    cc=cell_extended['Neighborhood_color'],
    labels=cell_extended['Neighborhood'],
    term_orders=cell_extended['Neighborhood_order'],
    fig_width=12,
    fig_height=12
)
res = ax.set_title("Neighborhood")
plt.show()

fig, ax = plot_umap(
    cell_extended['x'],
    cell_extended['y'],
    cc=cell_extended['Subclass_color'],
    labels=cell_extended['Subclass'],
    term_orders=cell_extended['Subclass_order'],
    fig_width=12,
    fig_height=12
)
res = ax.set_title("Subclass")
plt.show()

fig, ax = plot_umap(
    cell_extended['x'],
    cell_extended['y'],
    cc=cell_extended['Supertype_color'],
    fig_width=12,
    fig_height=12
)
res = ax.set_title("Supertype")
plt.show()

Aggregating supertype and cells counts.

Let’s investigate the taxonomy information a bit more. In this section, we’ll create bar plots showing the number of supertype and cells at each level in the taxonomy.

First, we need to compute the number of supertype that are in each of the cell type taxons above it. This is accomplished by a simple groupby in Pandas.

term_cluster_count = membership_with_cluster_info.reset_index().groupby(
        ['cluster_annotation_term_label']
    )[['cluster_alias']].count()
term_cluster_count.columns = ['number_of_supertypes']
term_cluster_count.head()

	number_of_supertypes
cluster_annotation_term_label
CS20260701_NEIG_01	9
CS20260701_NEIG_02	7
CS20260701_NEIG_03	18
CS20260701_NEIG_04	7
CS20260701_NEIG_05	8

term_cell_count = membership_with_cluster_info.reset_index().groupby(
    ['cluster_annotation_term_label']
)[['number_of_cells']].sum()
term_cell_count.head()

	number_of_cells
cluster_annotation_term_label
CS20260701_NEIG_01	477670
CS20260701_NEIG_02	55241
CS20260701_NEIG_03	4577
CS20260701_NEIG_04	76936
CS20260701_NEIG_05	46651

# Join counts with the term dataframe
term_with_counts = cluster_annotation_term.join(term_cluster_count)
term_with_counts = term_with_counts.join(term_cell_count)
term_with_counts.head()

	name	cluster_annotation_term_set_label	cluster_annotation_term_set_name	color_hex_triplet	term_order	term_set_order	parent_term_label	parent_term_name	parent_term_set_label	CCN20230508_label	CCN20250428_label	number_of_supertypes	number_of_cells
cluster_annotation_term_label
CS20260701_NEIG_04	Astro-Epen	CCN20260701_LEVEL_0	Neighborhood	#9A7345	4	0	NaN	NaN	NaN	NaN	NaN	7	76936
CS20260701_NEIG_03	CGE	CCN20260701_LEVEL_0	Neighborhood	#C355B0	3	0	NaN	NaN	NaN	NaN	NaN	18	4577
CS20260701_NEIG_05	Immune	CCN20260701_LEVEL_0	Neighborhood	#6BBC6B	5	0	NaN	NaN	NaN	NaN	NaN	8	46651
CS20260701_NEIG_01	LGE	CCN20260701_LEVEL_0	Neighborhood	#5B47C1	1	0	NaN	NaN	NaN	NaN	NaN	9	477670
CS20260701_NEIG_08	LSX	CCN20260701_LEVEL_0	Neighborhood	#B1B1B1	8	0	NaN	NaN	NaN	NaN	NaN	1	162

Below we create a function to plot the supertype and cell counts in a bar graph, coloring by the associated taxon level.

def bar_plot_by_level_and_type(
        df: pd.DataFrame,
        level: str, fig_width:
        float = 8.5, fig_height:
        float = 4,
        cell_min: int = None,
        supertype_min: int = None
    ):
    """Plot the number of cells by the specified level.

    Parameters
    ----------
    df : pd.DataFrame
        DataFrame containing cluster annotation terms with counts.
    level : str
        The level of the taxonomy to plot (e.g., 'Neighborhood', 'Class', 'Subclass', 'Group', 'Cluster').
    fig_width : float, optional
        Width of the figure in inches. Default is 8.5.
    fig_height : float, optional
        Height of the figure in inches. Default is 4.
    """

    fig, ax = plt.subplots(1, 2)
    fig.set_size_inches(fig_width, fig_height)

    for idx, ctype in enumerate(['supertypes', 'cells']):

        pred = (df['cluster_annotation_term_set_name'] == level)
        sort_order = np.argsort(df[pred]['term_order'])
        names = df[pred]['name'].iloc[sort_order]
        counts = df[pred]['number_of_%s' % ctype].iloc[sort_order]
        colors = df[pred]['color_hex_triplet'].iloc[sort_order]

        ax[idx].barh(names, counts, color=colors)
        ax[idx].set_title('Number of %s by %s' % (ctype,level))
        ax[idx].set_xlabel('Number of %s' % ctype)
        if ctype == 'supertypes' and supertype_min is not None:
                ax[idx].set_xlim(left=supertype_min)
        if ctype == 'cells':
            if cell_min is not None:
                ax[idx].set_xlim(left=cell_min)
            ax[idx].set_xscale('log')

        if idx > 0:
            ax[idx].set_yticklabels([])

    return fig, ax

Now let’s plot the counts the taxonomy levels neighborhood and subclass.

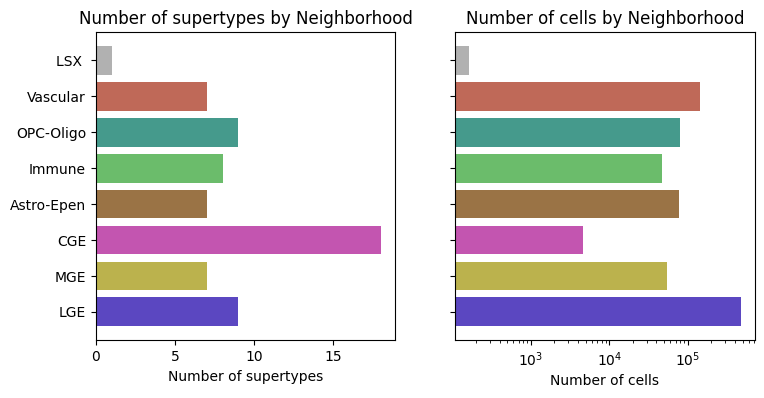

fig, ax = bar_plot_by_level_and_type(term_with_counts, 'Neighborhood')
plt.show()

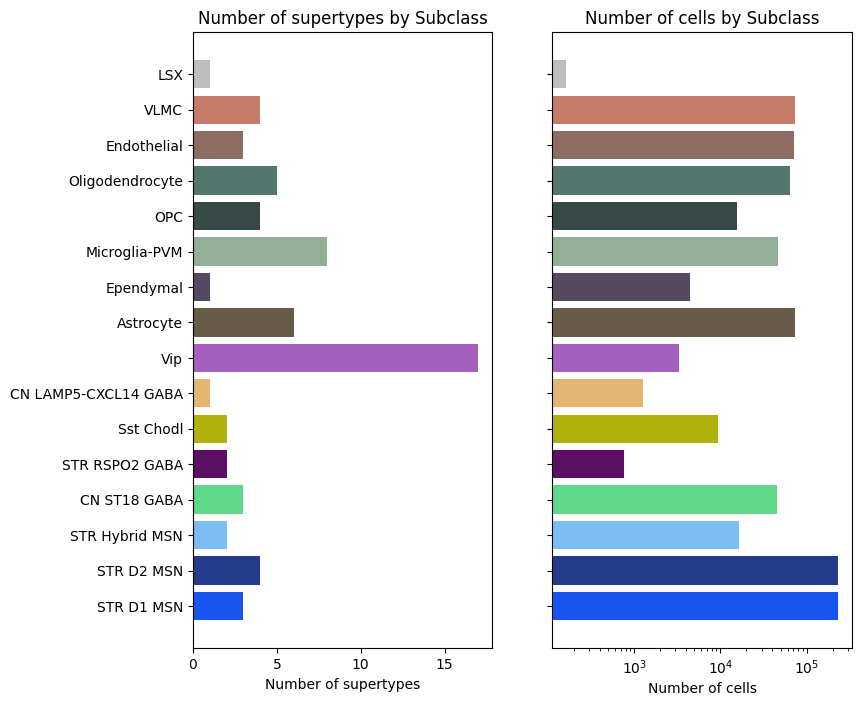

fig, ax = bar_plot_by_level_and_type(
    term_with_counts,
    'Subclass',
    fig_height=8
)
plt.show()

Visualizing the SEA-AD CaH Taxonomy

Term sets: neighborhood, subclass, and supertype define the SEA-AD CaH taxonomy. We can visualize the taxonomy as a sunburst diagram that shows the single inheritance hierarchy through a series of rings, that are sliced for each annotation term. Each ring corresponds to a level in the hierarchy. We have ordered the rings so that the neighborhood level. Rings are divided based on their hierarchical relationship to the parent slice.

levels = ['Neighborhood', 'Subclass', 'Supertype']
df = {}

# Copy the term order of the parent into each of the level below it.
if term_with_counts.index.name != 'cluster_annotation_term_label':
    term_with_counts = term_with_counts.set_index('cluster_annotation_term_label')
term_with_counts['parent_order'] = ""
for idx, row in term_with_counts.iterrows():
    if pd.isna(row['parent_term_label']):
        continue
    term_with_counts.loc[idx, 'parent_order'] = term_with_counts.loc[row['parent_term_label']]['term_order']

term_with_counts = term_with_counts.reset_index()
for lvl in levels:
    pred = term_with_counts['cluster_annotation_term_set_name'] == lvl
    df[lvl] = term_with_counts[pred]
    df[lvl] = df[lvl].sort_values(['parent_order', 'term_order'])

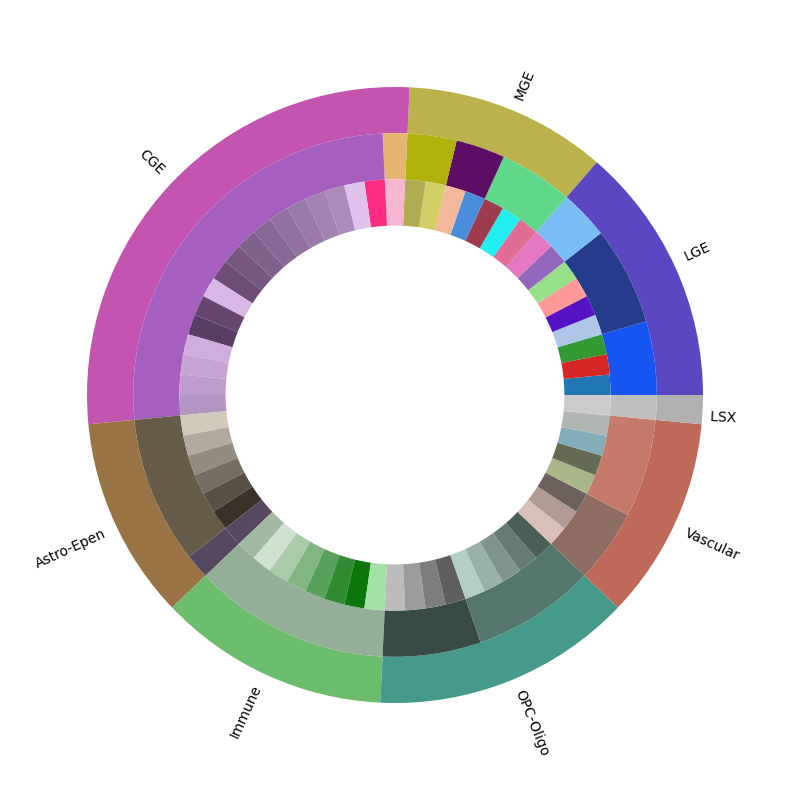

fig, ax = plt.subplots()
fig.set_size_inches(10, 10)
size = 0.15

for i, lvl in enumerate(levels):

    if lvl == 'Neighborhood':
        ax.pie(df[lvl]['number_of_supertypes'],
               colors=df[lvl]['color_hex_triplet'],
               labels = df[lvl]['name'],
               rotatelabels=True,
               labeldistance=1.025,
               radius=1,
               wedgeprops=dict(width=size, edgecolor=None),
               startangle=0)
    else :
        ax.pie(df[lvl]['number_of_supertypes'],
               colors=df[lvl]['color_hex_triplet'],
               radius=1-i*size,
               wedgeprops=dict(width=size, edgecolor=None),
               startangle=0)
term_with_counts = term_with_counts.set_index('cluster_annotation_term_label')
plt.show()

In the next tutorial, we show how to access and use SEA-AD CaH gene expression data. You can also investigate the SEA-AD Multiregion data and taxonomy here.
