Human-Mammalian Brain - Basal Ganglia spatial transcriptomics gene expression

In this notebook, we build on the our previous investigation into the cell level metadata, combining the metadata gene expressions for select genes that we extract from the released h5ad files.

You need to be connected to the internet to run this notebook and have run through the getting started notebook.

import json
import geojson
from typing import List, Tuple, Optional

import pandas as pd
from pathlib import Path
import numpy as np
import matplotlib.pyplot as plt
import matplotlib as mpl

from abc_atlas_access.abc_atlas_cache.abc_project_cache import AbcProjectCache
from abc_atlas_access.abc_atlas_cache.anndata_utils import get_gene_data

We will interact with the data using the AbcProjectCache. This cache object tracks which data has been downloaded and serves the path to the requested data on disk. For metadata, the cache can also directly serve a up a Pandas DataFrame. See the getting_started notebook for more details on using the cache including installing the cache if it has not already been.

Change the download_base variable to where you would like to download the data in your system.

download_base = Path('../../data/abc_atlas')
abc_cache = AbcProjectCache.from_cache_dir(
    cache_dir=download_base,
)

abc_cache.current_manifest

/Users/chris.morrison/src/abc_atlas_access/src/abc_atlas_access/abc_atlas_cache/cloud_cache.py:665: UserWarning: The manifest version recorded as last used for this cache -- releases/20261101/manifest.json-- is not a valid manifest for this dataset. Loading latest version -- releases/20261031/manifest.json -- instead.
  warnings.warn(msg, UserWarning)
/Users/chris.morrison/src/abc_atlas_access/src/abc_atlas_access/abc_atlas_cache/cloud_cache.py:697: OutdatedManifestWarning: You are loading
releases/20261031/manifest.json
which is newer than the most recent manifest file you have previously been working with
releases/20261101/manifest.json
It is possible that some data files have changed between these two data releases, which will force you to re-download those data files (currently downloaded files will not be overwritten). To continue using releases/20261101/manifest.json, run
type.load_manifest('releases/20261101/manifest.json')
  warnings.warn(msg, OutdatedManifestWarning)

'releases/20261101/manifest.json'

Cell metadata

Each species in the HMBA spatial dataset has it’s own h5ad files and associated cell metadata tables. We load each of these in turn starting from Human to Macaque to Marmoset. In the previous tutorial, we merged the cell metadata tables with their associated specimen metadatadata and then with the slab_plane coordinates we use to plot the cell locations.

Below we load each of the three species of the HMBA-BG data. We load the metadata tables we need for each species and join them in one cell this time.

Load the Human cells.

# Load the human cell metadata and specimen metadata
# and join them together with the slab plane coordinates.

human_cell_metadata = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Human',
    file_name='cell_metadata',
    dtype={"cell_label": str},
).set_index('cell_label')

human_specimen = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Human',
    file_name='specimen_metadata',
    dtype={"cell_label": str}
).set_index('brain_section_label')

human_cell_metadata = human_cell_metadata.join(human_specimen, on='brain_section_label', rsuffix='_specimen')

human_cell_slab_plane_coordinates = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Human',
    file_name='slab_plane_coordinates',
    dtype={"cell_label": str}
).set_index('cell_label')
human_cell_metadata = human_cell_metadata.join(
    human_cell_slab_plane_coordinates[['x_slab_mm', 'y_slab_mm']],
    on='cell_label'
)

del human_specimen
del human_cell_slab_plane_coordinates

human_cell_metadata.head()

	brain_section_label	brain_section_barcode	x_experiment	y_experiment	segmentation_job_id	cell_volume	total_counts	total_counts_genes	total_counts_genes_batch_normalized	n_unique_genes	...	hemisphere	brain_division_label	brain_division_ordinal	donor_label	slab_plane_ordinal	slab_plane_label	slab_plane_order	slab_z_order	x_slab_mm	y_slab_mm
cell_label
1315611012_1-20250227	H22.30.001.CX.16.02.03.03	1315611012	4687.0664	2342.8290	sis_cellpose_v1	78.062865	26	26	48.419523	13	...	right	H22.30.001.CX	1	H22.30.001	3	H22.30.001.CX.16.Plane.03	11603	5	22.969220	61.977645
1315611012_2-20250227	H22.30.001.CX.16.02.03.03	1315611012	4939.2110	2343.9695	sis_cellpose_v1	NaN	5	5	9.311447	5	...	right	H22.30.001.CX	1	H22.30.001	3	H22.30.001.CX.16.Plane.03	11603	5	23.121159	62.193835
1315611012_3-20250227	H22.30.001.CX.16.02.03.03	1315611012	4788.4240	2343.7327	sis_cellpose_v1	8.110529	11	11	20.485183	7	...	right	H22.30.001.CX	1	H22.30.001	3	H22.30.001.CX.16.Plane.03	11603	5	23.029942	62.064836
1315611012_4-20250227	H22.30.001.CX.16.02.03.03	1315611012	4974.0500	2352.2866	sis_cellpose_v1	NaN	4	4	7.449157	4	...	right	H22.30.001.CX	1	H22.30.001	3	H22.30.001.CX.16.Plane.03	11603	5	23.135649	62.228965
1315611012_5-20250227	H22.30.001.CX.16.02.03.03	1315611012	4681.3800	2346.6519	sis_cellpose_v1	NaN	5	5	9.311447	5	...	right	H22.30.001.CX	1	H22.30.001	3	H22.30.001.CX.16.Plane.03	11603	5	22.962727	61.975250

5 rows × 37 columns

Load the Macaque cells.

macaque_cell_metadata = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Macaque',
    file_name='cell_metadata',
    dtype={"cell_label": str}
).set_index('cell_label')

macaque_specimen = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Macaque',
    file_name='specimen_metadata',
    dtype={"cell_label": str}
).set_index('brain_section_label')

macaque_cell_metadata = macaque_cell_metadata.join(macaque_specimen, on='brain_section_label', rsuffix='_specimen')

macaque_cell_slab_plane_coordinates = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Macaque',
    file_name='slab_plane_coordinates',
    dtype={"cell_label": str}
).set_index('cell_label')
macaque_cell_metadata = macaque_cell_metadata.join(
    macaque_cell_slab_plane_coordinates[['x_slab_mm', 'y_slab_mm']],
    on='cell_label'
)

del macaque_specimen
del macaque_cell_slab_plane_coordinates

macaque_cell_metadata.head()

	brain_section_label	brain_section_barcode	x_experiment	y_experiment	segmentation_job_id	cell_volume	total_counts	total_counts_genes	total_counts_genes_batch_normalized	n_unique_genes	...	hemisphere	brain_division_label	brain_division_ordinal	donor_label	slab_plane_ordinal	slab_plane_label	slab_plane_order	slab_z_order	x_slab_mm	y_slab_mm
cell_label
1291814091_147-20250227	QM23.50.001.CX.44.01.05.01	1291814091	4432.6885	3979.6113	sis_cellpose_v1	756.243171	330	330	636.778305	83	...	right	QM23.50.001.CX	1	QM23.50.001	5	QM23.50.001.CX.44.Plane.05	14405	13	40.637941	22.217532
1291814091_157-20250227	QM23.50.001.CX.44.01.05.01	1291814091	4430.7207	3986.3145	sis_cellpose_v1	564.354610	326	326	629.059780	69	...	right	QM23.50.001.CX	1	QM23.50.001	5	QM23.50.001.CX.44.Plane.05	14405	13	40.632337	22.221703
1291814091_169-20250227	QM23.50.001.CX.44.01.05.01	1291814091	4377.2495	4001.7097	sis_cellpose_v1	167.832120	62	62	119.637136	34	...	right	QM23.50.001.CX	1	QM23.50.001	5	QM23.50.001.CX.44.Plane.05	14405	13	40.580360	22.201837
1291814091_180-20250227	QM23.50.001.CX.44.01.05.01	1291814091	4399.9390	4017.4290	sis_cellpose_v1	400.366153	231	231	445.744813	77	...	right	QM23.50.001.CX	1	QM23.50.001	5	QM23.50.001.CX.44.Plane.05	14405	13	40.589030	22.228043
1291814091_181-20250227	QM23.50.001.CX.44.01.05.01	1291814091	4392.6035	4016.5780	sis_cellpose_v1	308.688416	203	203	391.715139	70	...	right	QM23.50.001.CX	1	QM23.50.001	5	QM23.50.001.CX.44.Plane.05	14405	13	40.583682	22.222951

5 rows × 37 columns

Load the Marmoset cells.

marmoset_cell_metadata = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-Xenium-Marmoset',
    file_name='cell_metadata',
    dtype={"cell_label": str}
).set_index('cell_label')

marmoset_specimen = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-Xenium-Marmoset',
    file_name='specimen_metadata',
    dtype={"cell_label": str}
).set_index('brain_section_label')

marmoset_cell_metadata = marmoset_cell_metadata.join(marmoset_specimen, on='brain_section_label', rsuffix='_specimen')
marmoset_cell_slab_plane_coordinates = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-Xenium-Marmoset',
    file_name='slab_plane_coordinates',
    dtype={"cell_label": str}
).set_index('cell_label')
marmoset_cell_metadata = marmoset_cell_metadata.join(
    marmoset_cell_slab_plane_coordinates[['x_slab_mm', 'y_slab_mm']],
    on='cell_label'
)

del marmoset_specimen
del marmoset_cell_slab_plane_coordinates

marmoset_cell_metadata.head()

	brain_section_label	brain_section_barcode	x_experiment	y_experiment	segmentation_job_id	segmentation_method	cell_area	nucleus_area	n_nuclei_in_cell	total_counts	...	hemisphere	brain_division_label	brain_division_ordinal	donor_label	slab_plane_ordinal	slab_plane_label	slab_plane_order	slab_z_order	x_slab_mm	y_slab_mm
cell_label
1382042951_abmkfncc-1-20250227	CJ23.56.004.CX.42.01.06	1382042951	5923.4927	6160.6543	10X cell segmentation kit - default	Segmented by boundary stain (ATP1A1+CD45+E-Cad...	123.005630	72.566090	1	354	...	right	CJ23.56.004.CX	1	CJ23.56.004	1	CJ23.56.004.CX.42.Plane.01	14201	1	22.351042	13.197058
1382042951_abmmdgea-1-20250227	CJ23.56.004.CX.42.01.06	1382042951	6137.5723	6217.0757	10X cell segmentation kit - default	Segmented by boundary stain (ATP1A1+CD45+E-Cad...	46.194847	NaN	0	193	...	right	CJ23.56.004.CX	1	CJ23.56.004	1	CJ23.56.004.CX.42.Plane.01	14201	1	22.161345	13.311200
1382042951_abmojfce-1-20250227	CJ23.56.004.CX.42.01.06	1382042951	5802.6750	5614.0080	10X cell segmentation kit - default	Segmented by boundary stain (ATP1A1+CD45+E-Cad...	52.652190	19.462345	2	313	...	right	CJ23.56.004.CX	1	CJ23.56.004	1	CJ23.56.004.CX.42.Plane.01	14201	1	22.313862	12.638454
1382042951_abmomnim-1-20250227	CJ23.56.004.CX.42.01.06	1382042951	5805.9424	5599.3257	10X cell segmentation kit - default	Segmented by boundary stain (ATP1A1+CD45+E-Cad...	35.492813	14.766094	1	161	...	right	CJ23.56.004.CX	1	CJ23.56.004	1	CJ23.56.004.CX.42.Plane.01	14201	1	22.306610	12.625276
1382042951_aeiamgga-1-20250227	CJ23.56.004.CX.42.01.06	1382042951	6291.2680	6068.7200	10X cell segmentation kit - default	Segmented by boundary stain (ATP1A1+CD45+E-Cad...	167.800630	66.921560	2	603	...	right	CJ23.56.004.CX	1	CJ23.56.004	1	CJ23.56.004.CX.42.Plane.01	14201	1	21.972239	13.211849

5 rows × 40 columns

Geojson polygons

The dataset includes polygons outlining select regions of the Basal Ganglia, which can be plotted over slab coordinates. These polygon annotations were manually drawn using a combination of taxonomy cell types, select gene expression from the spatial transcriptomics gene panel, and cell segmentation stains with best attempts made to be consistent across species and planes. Manual annotations include the striatum (STR; encompasses the caudate, putamen, nucleus accumbens, and olfactory tubercle), the globus pallidus (GP) and its nested subregions (the external (GPe) and internal (GPi) segments), the ventral pallidum (VeP), the substantia nigra (SN), and the subthalamic nucleus (STH).. However, please note that these polygons are not derived from registration to the Harmonized Ontology of Mammalian Brain Anatomy (HOMBA). They should instead be used as cellular groupings to orient the user in the anatomical context of the spatial transcriptomics data and subset the data into more manageable, anatomically-related chunks. These polygons are provided in geojson format, and here we use the associated geojson python package to load the jsons for use in our visualization. First though, we load the term set for these data. This provides colors and plotting order for the annotations that we can use in our figures.These are provided in geojson format. We use the associated python package to load the jsons for use in our analysis.

value_sets = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Human',
    file_name='value_sets'
)
pred = value_sets['field'] == 'parcellation_term_symbol'
parcellation_terms = value_sets[pred].copy()
parcellation_terms.set_index('label', inplace=True)
parcellation_terms.head()

value_sets.csv: 100%|██████████| 3.98k/3.98k [00:00<00:00, 54.0kMB/s]

	field	table	description	order	external_identifier	parent_label	color_hex_triplet
label
Basal ganglia and adjacent	parcellation_term_symbol	cell_anatomical_annotations	Basal ganglia and adjacent	1	basal_ganglia_and_adjacent	NaN	#BEBEBE
STR	parcellation_term_symbol	cell_anatomical_annotations	striatum	2	HOMBA:10333	Basal ganglia and adjacent	#cd86cc
GP	parcellation_term_symbol	cell_anatomical_annotations	globus pallidus	3	HOMBA:10342	Basal ganglia and adjacent	#7AE361
GPe	parcellation_term_symbol	cell_anatomical_annotations	external segment of globus pallidus	4	HOMBA:10343	Basal ganglia and adjacent	#53DB33
GPi	parcellation_term_symbol	cell_anatomical_annotations	internal segment of globus pallidus	5	HOMBA:10344	Basal ganglia and adjacent	#A7DB33

Below we define two functions that will be used in our plotting of the geojsons. The first takes in the data and a matplotlib axis object and plots the geojson data on the provided axis, extracting color and name information from the value/term set. The second loads the data based on the appropriate slab and species provided.

def plot_geo_data(geo_data: dict, ax: plt.Axes, terms=parcellation_terms):
    """Plot a geojson polygon over the input axis.

    Parameters
    ----------
    geo_data: dict
        Geojson formatted dictionary containing Polygons to plot.
    ax: matplotlib.pyplot.axis
        Axis object to plot the geojson data over.
    terms: pandas.DataFrame
        Term list containing the colors and orders for the parcellation, brain region terms.
    """
    if geo_data is None:
        return None
    # If the geo_data is a FeatureCollection, we need to iterate over its
    # features and plot each one.
    if geo_data['type'] == 'FeatureCollection':
        for sub_data in geo_data['features']:
            plot_geo_data(sub_data, ax)
    elif geo_data['type'] == 'Feature':
        geometry_data = geo_data['geometry']
        name = geo_data['properties']['label']
        color = terms.loc[name, 'color_hex_triplet'] # Get the color for this object from the term list.
        # If the geometry is a GeometryCollection, we need to iterate over its
        # geometries that make up the complete feature.
        if geometry_data['type'] == 'GeometryCollection':
            for idx, geometry in enumerate(geometry_data['geometries']):
                coords = np.array(list(geojson.coords(geometry)))
                # Only label the first geometry in the collection. Others
                # will be plotted without a label to avoid duplicate legend entries.
                if idx == 0:
                    ax.fill(coords[:, 0],
                            coords[:, 1],
                            edgecolor=color,
                            fill=False,
                            linewidth=3,
                            label=name)
                else:
                    ax.fill(coords[:, 0],
                            coords[:, 1],
                            edgecolor=color,
                            fill=False,
                            linewidth=3)
        else:
            coords = np.array(list(geojson.coords(geometry_data)))
            try:
                ax.fill(coords[:, 0],
                        coords[:, 1],
                        edgecolor=color,
                        fill=False,
                        linewidth=3,
                        label=name)
            except ValueError as e:
                import pdb; pdb.set_trace()
    else:
        print("unknown data", geo_data)

def get_polygons(slab_name: str, species: str) -> dict:
    """Load the geojson polygons for the specified slab and species.

    Parameters
    ----------
    slab_name: str
        Name of the slab to load.
    species: str
        Species of the slab, one of 'macaque', 'marmoset', or 'human'.

    Returns
    -------
    dict
        Geojson formatted dictionary containing the polygons for the specified slab and species.
    """

    if species == 'macaque':
        base_dir = 'HMBA-BG-MERSCOPE-Macaque'
    elif species == 'marmoset':
        base_dir = 'HMBA-BG-Xenium-Marmoset'
    elif species == 'human':
        base_dir = 'HMBA-BG-MERSCOPE-Human'
    else:
        raise ValueError('Invalid species')

    file_path = abc_cache.get_file_path(directory=base_dir, file_name=slab_name)
    if not file_path.exists():
        return None

    with open(file_path) as jfile:
        data = json.load(jfile)

    return data

Gene expression data

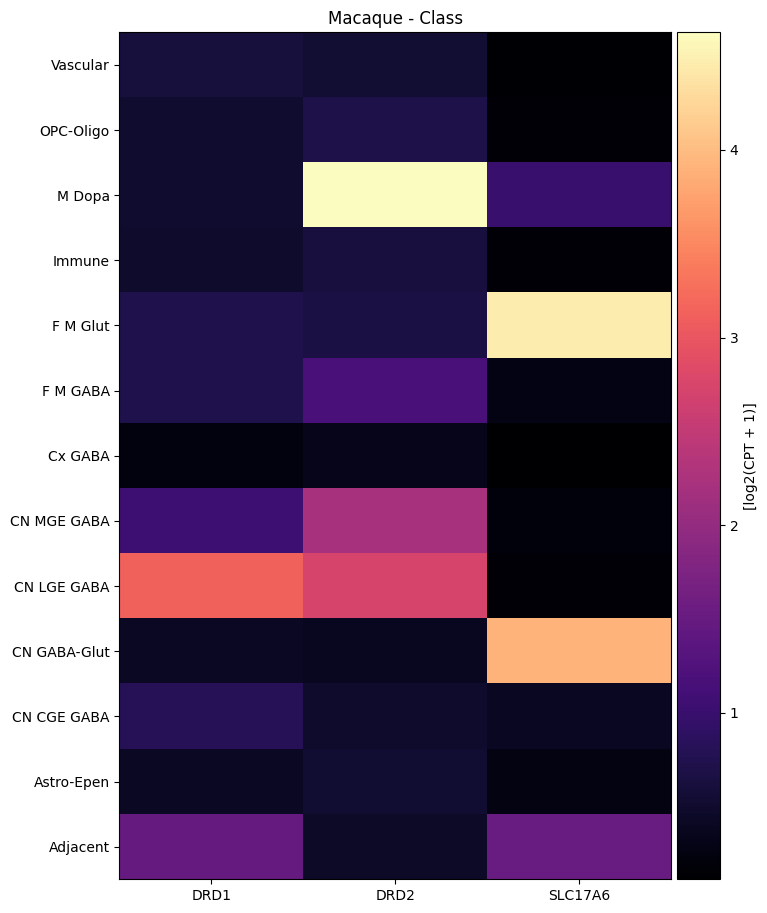

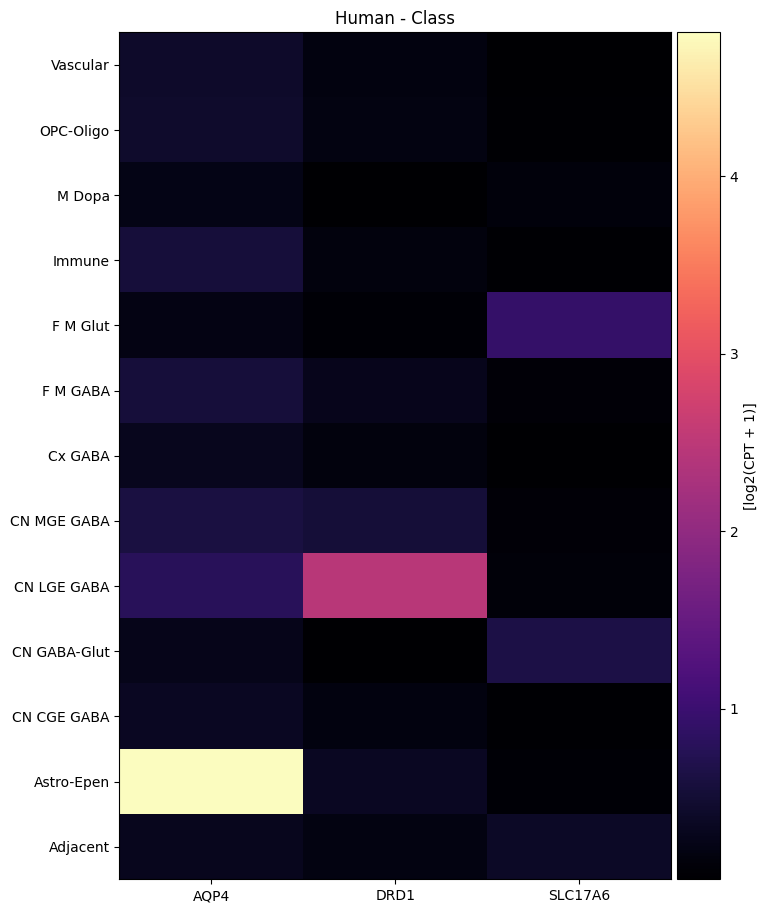

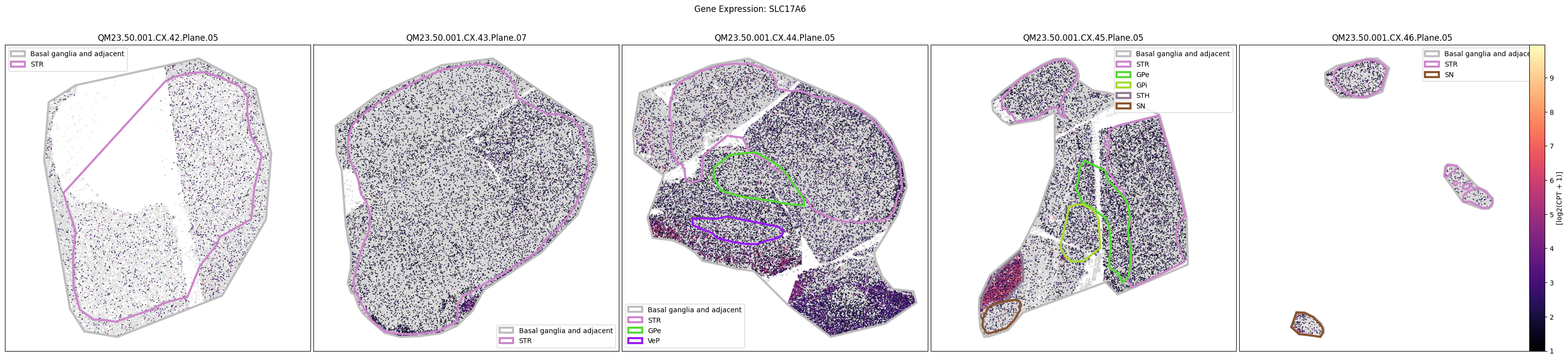

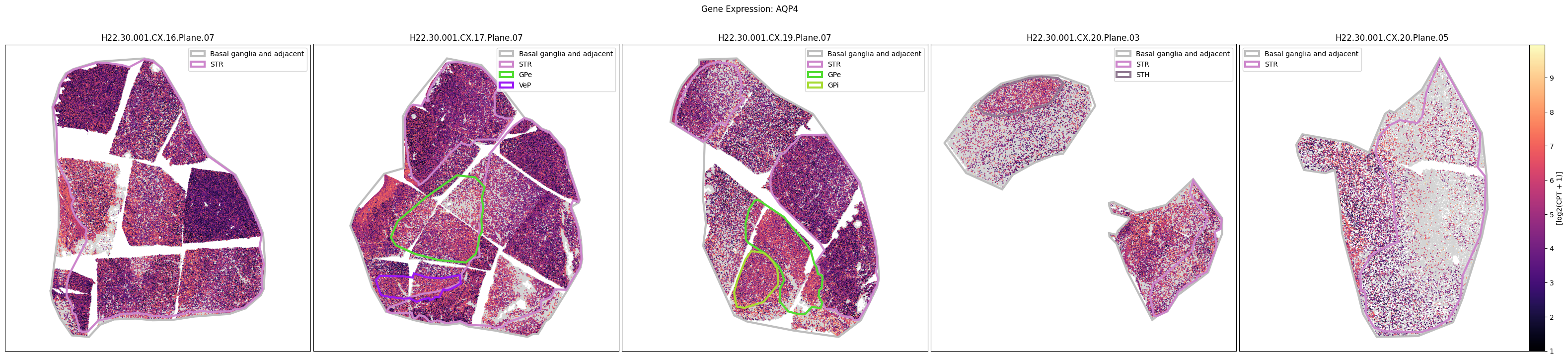

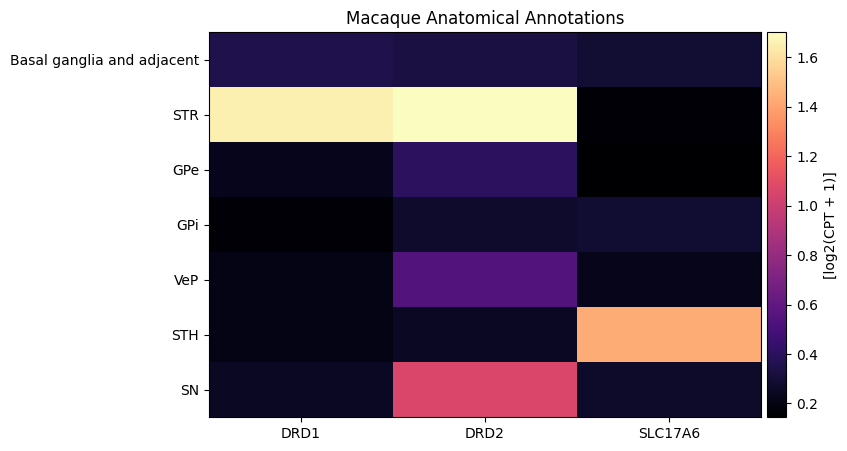

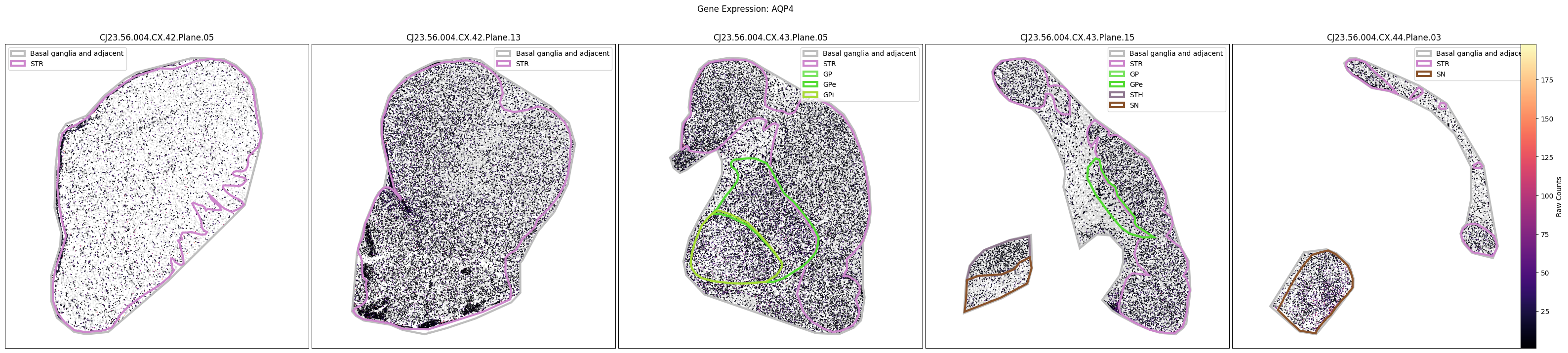

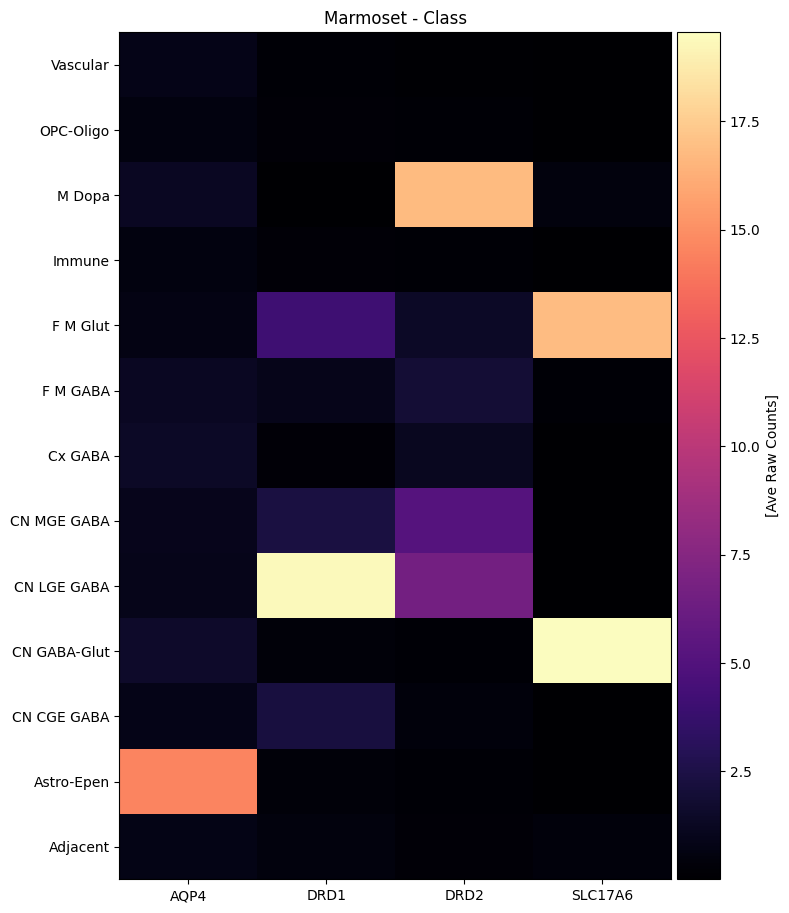

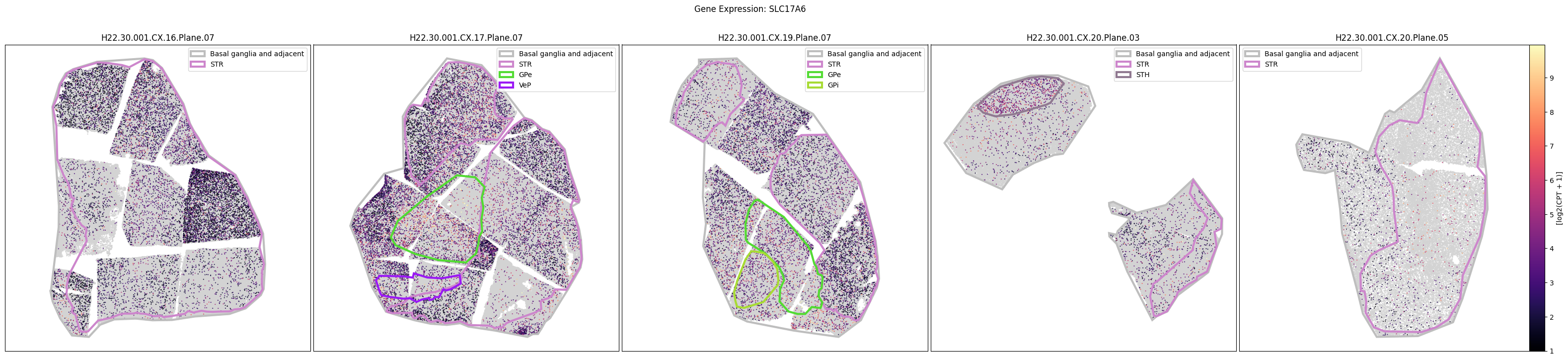

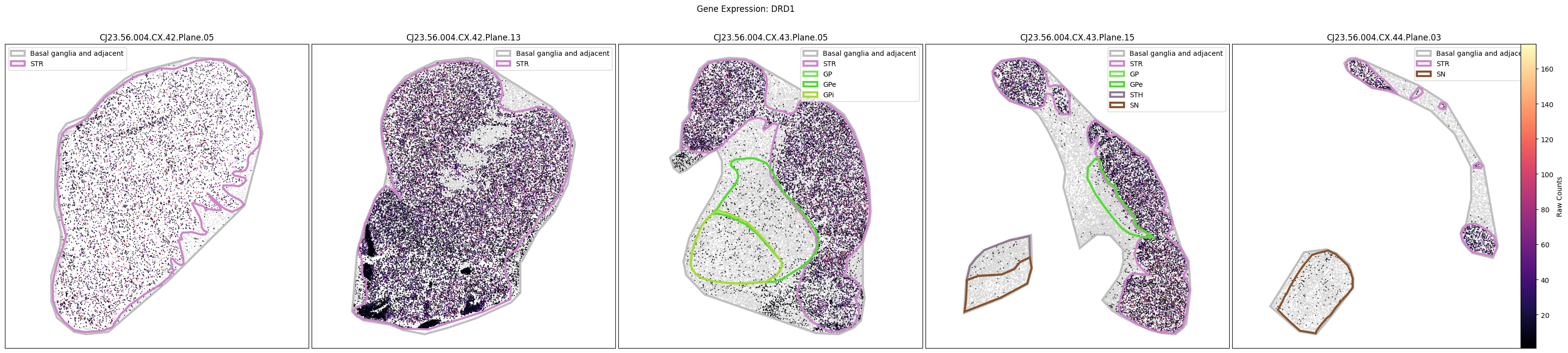

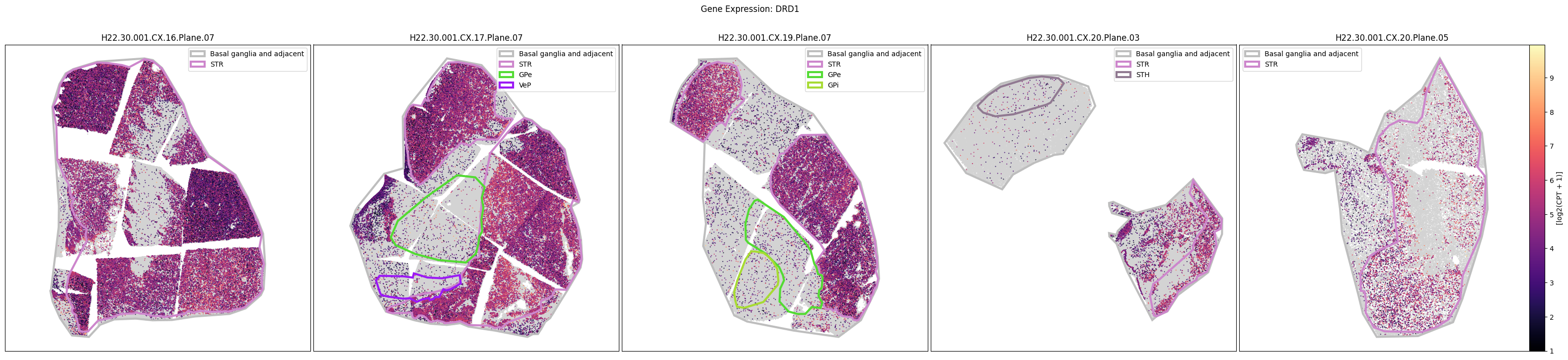

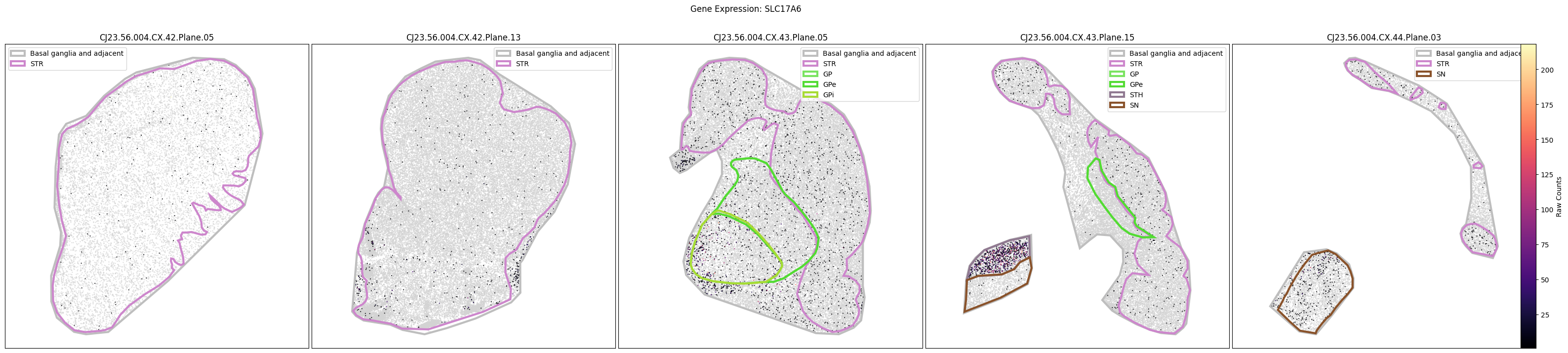

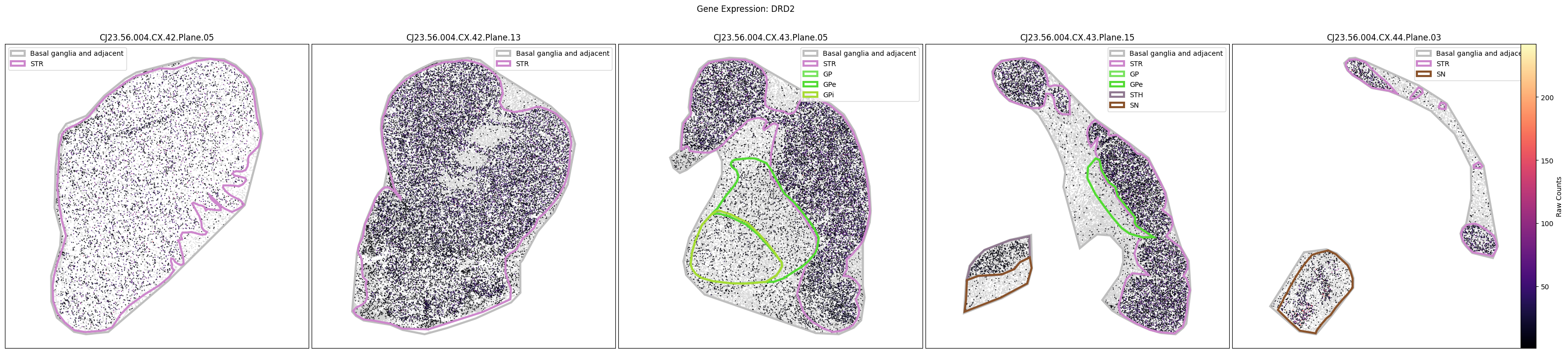

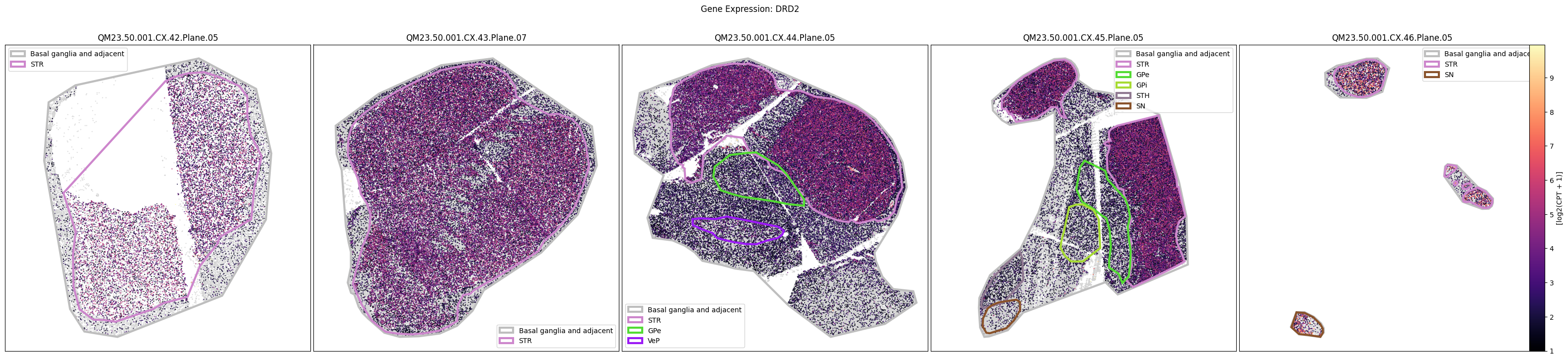

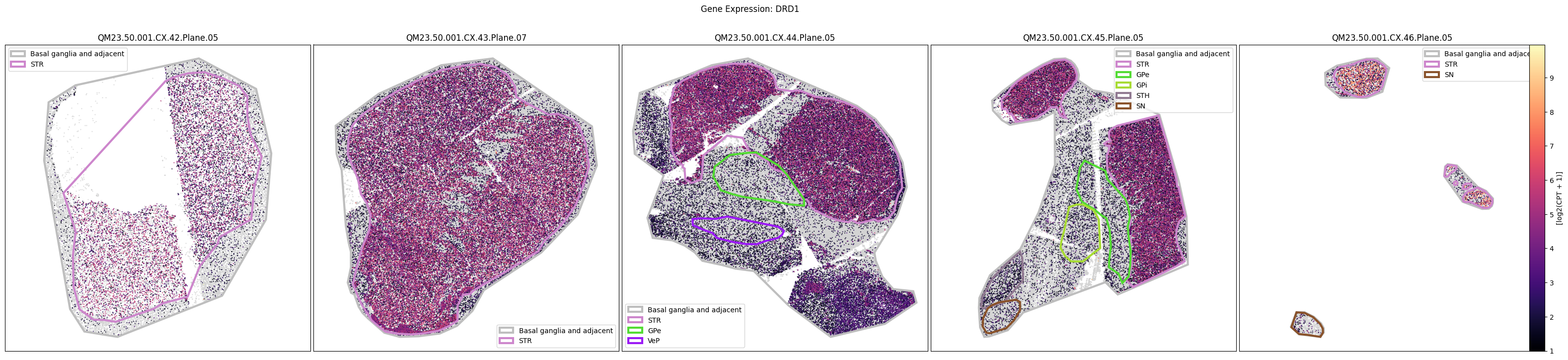

Now we can extract expression for specific genes from the h5ad files and pair it with our gene metadata. In general, we can use the function get_gene_data to extract the expression of specific genes for all the cells in a given dataset or a subset of cells.. For more details on using this convenience function, see the Accessing 10x RNA-seq gene expression data tutorial notebook.

For this tutorial we will use precomputed tables of the expression for specific genes to compare expression both spatially and by the taxonomy.

To use the gene expression data, we first load the set of genes for each of the 3 species in HMBA-BG.

human_genes = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Human',
    file_name='gene',
).set_index('gene_identifier')
human_genes.head()

gene.csv: 100%|██████████| 29.0k/29.0k [00:00<00:00, 450kMB/s]

	gene_symbol	description	transcript_identifier	chromosome	molecular_type	is_transcript
gene_identifier
ENSG00000118777	ABCG2	ATP binding cassette subfamily G member 2 (Jun...	ENST00000237612	chr4	protein_coding	True
ENSG00000103740	ACSBG1	acyl-CoA synthetase bubblegum family member 1	ENST00000258873	chr15	protein_coding	True
ENSG00000042980	ADAM28	ADAM metallopeptidase domain 28	ENST00000521629	chr8	protein_coding	True
ENSG00000140873	ADAMTS18	ADAM metallopeptidase with thrombospondin type...	ENST00000282849	chr16	protein_coding	True
ENSG00000173157	ADAMTS20	ADAM metallopeptidase with thrombospondin type...	ENST00000549670	chr12	protein_coding	True

macaque_genes = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Macaque',
    file_name='gene',
).set_index('gene_identifier')
macaque_genes.head()

gene.csv: 100%|██████████| 52.6k/52.6k [00:00<00:00, 557kMB/s]

	gene_symbol	description	molecular_type	ensembl_gene_identifier	ncbi_gene_identifier	ncbi_gene_symbol	ncbi_description	match_method	is_transcript
gene_identifier
ENSMMUG00000015100	ABO	ABO, alpha 1-3-N-acetylgalactosaminyltransfera...	protein_coding	ENSEMBL:ENSMMUG00000015100	NCBIGene:722252	ABO	ABO, alpha 1-3-N-acetylgalactosaminyltransfera...	ensembl_biomart	True
ENSMMUG00000009661	ADAM12	ADAM metallopeptidase domain 12	protein_coding	ENSEMBL:ENSMMUG00000009661	NCBIGene:696405	ADAM12	ADAM metallopeptidase domain 12	ensembl_biomart	True
ENSMMUG00000000824	ADAMTS18	ADAM metallopeptidase with thrombospondin type...	protein_coding	ENSEMBL:ENSMMUG00000000824	NCBIGene:712710	ADAMTS18	ADAM metallopeptidase with thrombospondin type...	ensembl_biomart	True
ENSMMUG00000044658	ADAMTSL1	ADAMTS like 1	protein_coding	ENSEMBL:ENSMMUG00000044658	NCBIGene:712844	ADAMTSL1	ADAMTS like 1	ensembl_biomart	True
ENSMMUG00000017120	ADARB2	adenosine deaminase RNA specific B2 (inactive)	protein_coding	ENSEMBL:ENSMMUG00000017120	NCBIGene:722075	ADARB2	adenosine deaminase RNA specific B2 (inactive)	ensembl_biomart	True

marmoset_genes = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-Xenium-Marmoset',
    file_name='gene',
).set_index('gene_identifier')
marmoset_genes.head()

gene.csv: 100%|██████████| 37.3k/37.3k [00:00<00:00, 583kMB/s]

	gene_symbol	description	molecular_type	is_transcript
gene_identifier
NCBIGene:100393956	ABI3BP	ABI family member 3 binding protein	protein_coding	True
NCBIGene:100388523	ABL2	ABL proto-oncogene 2, non-receptor tyrosine ki...	protein_coding	True
NCBIGene:100389219	ABLIM1	actin binding LIM protein 1	protein_coding	True
NCBIGene:100400228	ACAP2	ArfGAP with coiled-coil, ankyrin repeat and PH...	protein_coding	True
NCBIGene:100392257	ACHE	acetylcholinesterase (Cartwright blood group)	protein_coding	True

We define a set of genes to load via their symbol. We reuse the smaller overlapping subset of genes we used in the previous 10X gene expression notebook.

gene_names = ['AQP4', 'DRD1', 'DRD2', 'SLC17A6']

In the cell below, we show how to use the get_gene_data function to extract the expression of specific genes from the h5ad metadata. In the commented code, we combine our abc_cache object, cell metadata, gene metadata, and gene symbols we would like select in our get_gene_data function that downloads and extracts gene expression data from the h5ad file. Note that this function is an example and should not be used on small systems to extract a large number of genes for all cells at once. For a small subset of cells, it can be used to pull expression data from the h5ad file for all genes.

The methods below will pull data from the natural-log, batch-normalized data. These are data where the raw counts are normalized by scaling all cells within each section (per brain_section_barcode) to the mean total counts of a reference cell population, in this case the counts in the cell type Group, Astrocyte. This is done because their population count correlates with the total neuron count across sections and they are distributed across diverse anatomical regions using the following qsudo-code:

section_factor = global_reference_cells_mean / section_reference_cells_mean
batch_normalized_counts = section_factor * raw_counts

For this tutorial we will skip using these functions and instead use a pre-computed gene expression to save time. For specifics on how to use the below functions see this tutorial.

"""
human_gene_data = get_gene_data(
    abc_atlas_cache=abc_cache,
    all_cells=human_cell_metadata,
    all_genes=human_genes,
    selected_genes=gene_names,
    data_type='ln'
)
macaque_gene_data = get_gene_data(
    abc_atlas_cache=abc_cache,
    all_cells=macaque_cell_metadata,
    all_genes=macaque_genes,
    selected_genes=gene_names,
    data_type='ln'
)
marmoset_gene_data = get_gene_data(
    abc_atlas_cache=abc_cache,
    all_cells=marmoset_cell_metadata,
    all_genes=marmoset_genes,
    selected_genes=gene_names,
    data_type='ln'
)"""

"\nhuman_gene_data = get_gene_data(\n    abc_atlas_cache=abc_cache,\n    all_cells=human_cell_metadata,\n    all_genes=human_genes,\n    selected_genes=gene_names,\n    data_type='ln'\n)\nmacaque_gene_data = get_gene_data(\n    abc_atlas_cache=abc_cache,\n    all_cells=macaque_cell_metadata,\n    all_genes=macaque_genes,\n    selected_genes=gene_names,\n    data_type='ln'\n)\nmarmoset_gene_data = get_gene_data(\n    abc_atlas_cache=abc_cache,\n    all_cells=marmoset_cell_metadata,\n    all_genes=marmoset_genes,\n    selected_genes=gene_names,\n    data_type='ln'\n)"

We load the precomputed gene expressions for each species below instead of running the processing. Note that the Human and Marmoset data contain all 4 of the genes we requested, however AQP4 is not in the Macaque data.

human_gene_data = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Human',
    file_name='example_gene_expression',
).set_index('cell_label')
human_gene_data.head()

example_gene_expression.csv: 100%|██████████| 218M/218M [00:12<00:00, 18.0MMB/s]

	AQP4	DRD1	SLC17A6
cell_label
1315611012_1-20250227	0.0	0.0	0.0
1315611012_2-20250227	0.0	0.0	0.0
1315611012_3-20250227	0.0	0.0	0.0
1315611012_4-20250227	0.0	0.0	0.0
1315611012_5-20250227	0.0	0.0	0.0

macaque_gene_data = macaque_genes = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Macaque',
    file_name='example_gene_expression',
).set_index('cell_label')
macaque_gene_data.head()

example_gene_expression.csv: 100%|██████████| 139M/139M [00:08<00:00, 16.9MMB/s]

	DRD1	DRD2	SLC17A6
cell_label
1291814091_147-20250227	0.0	0.0	0.0
1291814091_157-20250227	0.0	0.0	0.0
1291814091_169-20250227	0.0	0.0	0.0
1291814091_180-20250227	0.0	0.0	0.0
1291814091_181-20250227	0.0	0.0	0.0

marmoset_gene_data = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-Xenium-Marmoset',
    file_name='example_gene_expression',
).set_index('cell_label')
marmoset_gene_data.head()

example_gene_expression.csv: 100%|██████████| 72.6M/72.6M [00:04<00:00, 15.5MMB/s]

	AQP4	DRD1	DRD2	SLC17A6
cell_label
1382042951_abmkfncc-1-20250227	1.190510	0.566971	0.0	0.0
1382042951_abmmdgea-1-20250227	2.239871	0.000000	0.0	0.0
1382042951_abmojfce-1-20250227	2.239871	0.000000	0.0	0.0
1382042951_abmomnim-1-20250227	1.571653	0.000000	0.0	0.0
1382042951_aeiamgga-1-20250227	0.000000	0.926574	0.0	0.0

Now that we’ve loaded our expression matrix tables, indexed by cell_label, we can merge them into our cell metadata tables.

human_cell_metadata_with_genes = human_cell_metadata.join(human_gene_data, on='cell_label')
macaque_cell_metadata_with_genes = macaque_cell_metadata.join(macaque_gene_data, on='cell_label')
marmoset_cell_metadata_with_genes = marmoset_cell_metadata.join(marmoset_gene_data, on='cell_label')

# clean up memory
del human_gene_data
del macaque_gene_data
del marmoset_gene_data

Plotting the Slabs

We define a helper function plot_slabs to visualize the cells for a specified set of brain sections either by colorized metadata or gene expression. This function can be used to plot individual brain sections as well.

def plot_slabs(
    df: pd.DataFrame,
    feature: str,
    slab_list: List[str],
    species: str,
    cmap: Optional[plt.Colormap] = None,
    vmin: Optional[float] = None,
    vmax: Optional[float] = None,
    fig_width: float = 40,
    fig_height: float = 8,
    plot_polygons: bool = False,
    point_size: float = 1.0,
    unit: str = '[ln(batch-normalized + 1)]',
    fix_bounds: bool = False
) -> Tuple[plt.Figure, np.ndarray]:
    """Plot spatial transcriptomics data.

    Parameters
    ----------
    df: pandas.DataFrame
        cell metadata data frame with x,y locations to plot.
    feature: str
        Expression value or color column to plot.
    slab_list: List[str]
        List of slab_plane ids to plot.
    species: str
        Species to plot (human, macaque, marmoset).
    cmap: matplotlib.colors.Colormap
        Colormap for expression features.
    vmin: float
        Minimum value for color mapping. Defaults to min of values in the feature column. Values lower than
        this will be plotted as grey.
    vmax: float
        Maximum value for color mapping. Defaults to max of values in the feature column. Values higher than
        this will be plotted as grey.
    fig_width: int
        Width of the plotted figure.
    fig_height: int
        Height of the plotted figure.
    plot_polygons: bool
        Overplot geojson polygons. Note that these are note available for human
        and this should be set to False.
    point_size: float
        Size of the points to plot.
    fix_bounds: bool
        If True, fix the x and y bounds across all slabs to be the same.
    """
    if isinstance(slab_list, str):
        slab_list = [slab_list]

    fig, ax = plt.subplots(1, len(slab_list))
    fig.set_size_inches(fig_width, fig_height)

    if len(slab_list) == 1:
        ax = [ax]

    if 'x' in df.columns:
        x_col = 'x'
    elif 'x_slab_mm' in df.columns:
        x_col = 'x_slab_mm'
    if 'y' in df.columns:
        y_col = 'y'
    elif 'y_slab_mm' in df.columns:
        y_col = 'y_slab_mm'

    if fix_bounds:
        x_min = df[x_col].min()
        x_max = df[x_col].max()
        y_min = df[y_col].min()
        y_max = df[y_col].max()

    vv = df[feature]
    if vmin is None:
        vmin = vv.min()

    if vmax is None:
        vmax = vv.max()

    norm = mpl.colors.Normalize(vmin=vmin, vmax=vmax)
    sm = plt.cm.ScalarMappable(cmap=cmap, norm=norm)
    cmap = sm.get_cmap()

    for idx, slab in enumerate(slab_list):

        if 'slab_plane_label' in df.columns:
            filtered = df[df['slab_plane_label'] == slab]
        elif 'brain_section_label' in df.columns:
            filtered = df[df['brain_section_label'] == slab]

        xx = filtered[x_col]
        yy = filtered[y_col]
        vv = filtered[feature]

        if cmap is not None:
            mask = np.logical_and(vv >= vmin, vv <= vmax)
            if mask.any():
                ax[idx].scatter(xx[~mask], yy[~mask], s=1.0, c='#D3D3D3', marker='.')
                ax[idx].scatter(xx[mask], yy[mask], s=1.0, c=vv[mask], marker='.', cmap=cmap)
            else :
                ax[idx].scatter(xx, yy, s=1.0, color=vv, marker=".")
        else :
            ax[idx].scatter(xx, yy, s=point_size, c=vv, marker=".")

        if plot_polygons:
            plot_geo_data(get_polygons(slab, species=species), ax[idx])

        ax[idx].axis('equal')
        ylim = ax[idx].get_ylim()
        if fix_bounds:
            ylim = (y_min, y_max)
            ax[idx].set_xlim(x_min, x_max)
        ax[idx].set_ylim(ylim[1], ylim[0])
        ax[idx].set_xticks([])
        ax[idx].set_yticks([])

        ax[idx].set_title(slab)
        ax[idx].legend(loc=0, markerscale=10)


    cbar = fig.colorbar(sm, ax=ax, orientation='vertical', fraction=0.01, pad=0.01)
    cbar.set_label(unit)

    plt.subplots_adjust(wspace=0.01, hspace=0.01)
    return fig, ax

Below we plot the spatial expression of our genes across the different species. We select a minium expression value of which effectively masks out zero expression cells from the plots, showing a bit more contrast. Feel free to experiment with different vmin and vmax values in investigate the gene expressions more in depth.

human_gene_names = human_cell_metadata_with_genes.columns[
    human_cell_metadata_with_genes.columns.isin(gene_names)
].to_numpy()
human_slab_list = [
    'H22.30.001.CX.16.Plane.07', 'H22.30.001.CX.17.Plane.07',
    'H22.30.001.CX.19.Plane.07', 'H22.30.001.CX.20.Plane.03', 'H22.30.001.CX.20.Plane.05'
]
for gene_symbol in human_gene_names:
    fig, ax = plot_slabs(
        human_cell_metadata_with_genes,
        gene_symbol,
        human_slab_list,
        species='human',
        cmap=plt.cm.magma_r,
        plot_polygons=True,
    )
    fig.suptitle(f'Gene Expression: {gene_symbol}')
    plt.show()

macaque_gene_names = macaque_cell_metadata_with_genes.columns[
    macaque_cell_metadata_with_genes.columns.isin(gene_names)
].to_numpy()
macaque_slab_list = [
    'QM23.50.001.CX.42.Plane.05', 'QM23.50.001.CX.43.Plane.07', 'QM23.50.001.CX.44.Plane.05',
    'QM23.50.001.CX.45.Plane.05', 'QM23.50.001.CX.46.Plane.05'
]
for gene_symbol in macaque_gene_names:
    fig, ax = plot_slabs(
        macaque_cell_metadata_with_genes,
        gene_symbol,
        macaque_slab_list,
        species='macaque',
        cmap=plt.cm.magma_r,
        plot_polygons=True,
    )
    fig.suptitle(f'Gene Expression: {gene_symbol}')
    plt.show()

QM23.50.001.CX.42.Plane.05.geojson: 100%|██████████| 1.61k/1.61k [00:00<00:00, 16.2kMB/s]

marmoset_gene_names = marmoset_cell_metadata_with_genes.columns[
    marmoset_cell_metadata_with_genes.columns.isin(gene_names)
].to_numpy()
marmoset_slab_list = [
    'CJ23.56.004.CX.42.Plane.05', 'CJ23.56.004.CX.42.Plane.13', 'CJ23.56.004.CX.43.Plane.05',
    'CJ23.56.004.CX.43.Plane.15', 'CJ23.56.004.CX.44.Plane.03'
]
for gene_symbol in marmoset_gene_names:
    fig, ax = plot_slabs(
        marmoset_cell_metadata_with_genes,
        gene_symbol,
        marmoset_slab_list,
        species='marmoset',
        cmap=plt.cm.magma_r,
        plot_polygons=True,
    )
    fig.suptitle(f'Gene Expression: {gene_symbol}')
    plt.show()

CJ23.56.004.CX.42.Plane.13.geojson: 100%|██████████| 6.53k/6.53k [00:00<00:00, 116kMB/s]

Manual anatomical annotations

We load tables that allow us to assign cells to the manual annotations plotted using the geojsons. These tables contain boolean assignments to a given manual annotation and column specifying a single unique assignment.

human_cell_anatomical_annotations = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Human',
    file_name='cell_anatomical_annotations'
).set_index('cell_label')

macaque_cell_anatomical_annotations = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Macaque',
    file_name='cell_anatomical_annotations'
).set_index('cell_label')

marmoset_cell_anatomical_annotations = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-Xenium-Marmoset',
    file_name='cell_anatomical_annotations'
).set_index('cell_label')

value_sets = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Human',
    file_name='value_sets',
)
pred = value_sets['field'] == 'parcellation_term_symbol'
parcellation_terms = value_sets[pred].copy()
parcellation_terms.set_index('label', inplace=True)
parcellation_terms

def extract_value_set(cell_metadata_df: pd.DataFrame, input_value_set: pd.DataFrame, input_value_set_label: str):
    """Add color and order columns to the cell metadata dataframe based on the input
    value set.

    Columns are added as {input_value_set_label}_color and {input_value_set_label}_order.

    Parameters
    ----------
    cell_metadata_df : pd.DataFrame
        DataFrame containing cell metadata.
    input_value_set : pd.DataFrame
        DataFrame containing the value set information.
    input_value_set_label : str
        The the column name to extract color and order information for. will be added to the cell metadata.
    """
    cell_metadata_df[f'{input_value_set_label}_color'] = input_value_set[
        input_value_set['field'] == input_value_set_label
    ].loc[cell_metadata_df[input_value_set_label]]['color_hex_triplet'].values
    cell_metadata_df[f'{input_value_set_label}_order'] = input_value_set[
        input_value_set['field'] == input_value_set_label
    ].loc[cell_metadata_df[input_value_set_label]]['order'].values

human_cell_metadata_with_genes = human_cell_metadata_with_genes.join(
    human_cell_anatomical_annotations[['parcellation_term_symbol']]
)
macaque_cell_metadata_with_genes = macaque_cell_metadata_with_genes.join(
    macaque_cell_anatomical_annotations[['parcellation_term_symbol']]
)
marmoset_cell_metadata_with_genes = marmoset_cell_metadata_with_genes.join(
    marmoset_cell_anatomical_annotations[['parcellation_term_symbol']]
)
extract_value_set(human_cell_metadata_with_genes, parcellation_terms, 'parcellation_term_symbol')
extract_value_set(macaque_cell_metadata_with_genes, parcellation_terms, 'parcellation_term_symbol')
extract_value_set(marmoset_cell_metadata_with_genes, parcellation_terms, 'parcellation_term_symbol')

# clean up memory
del human_cell_anatomical_annotations
del macaque_cell_anatomical_annotations
del marmoset_cell_anatomical_annotations

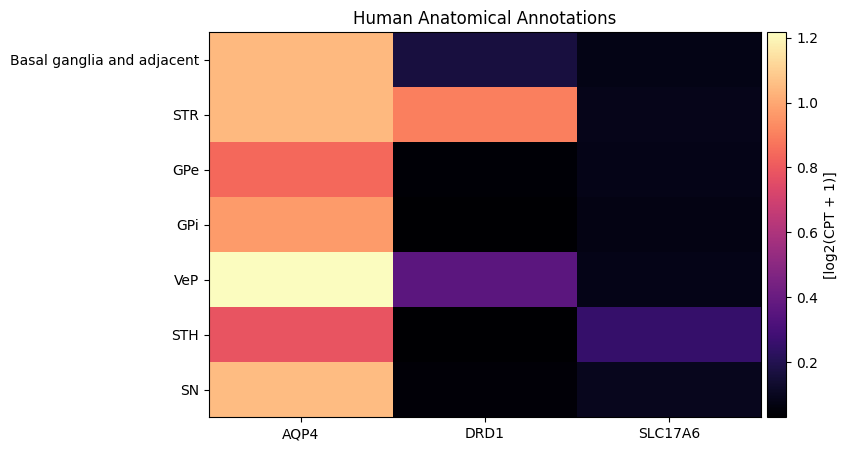

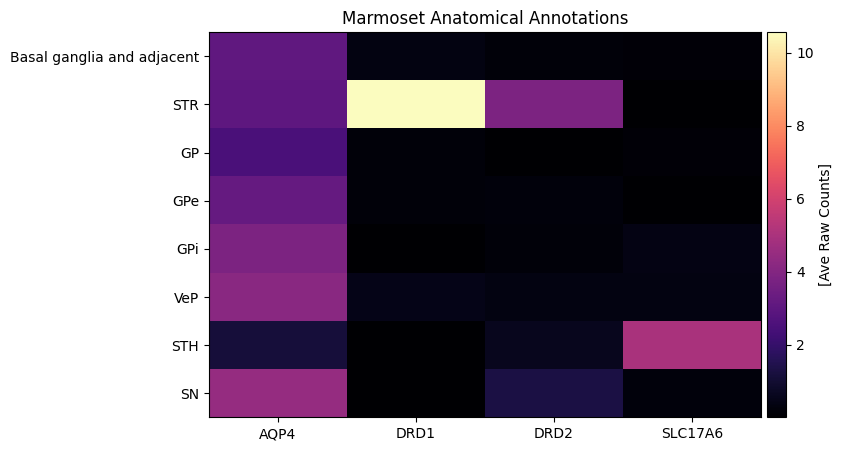

Plotting heatmap expression data.

We define a helper functions aggregate_by_metadata to compute the average expression for a given category. Note that this is a simple wrapper of the Pandas GroupBy functionality. Other summary statistics beyond just the mean are listed here: https://pandas.pydata.org/docs/reference/groupby.html#dataframegroupby-computations-descriptive-stats

We also define a function to plot the resultant averaged data in a heatmap.

def aggregate_by_metadata(df: pd.DataFrame, gnames: List[str], value: str, sort: bool = False) -> pd.DataFrame:
    """Aggregate gene expression data by metadata.

    Parameters
    ----------
    df: pandas.DataFrame
        DataFrame containing gene expression and metadata.
    gnames: List[str]
        List of gene names to aggregate.
    value: str
    sort: bool
        Metadata column to group by.
        If True, sort the output by the first gene in gnames.

    Returns
    -------
    pandas.DataFrame
        DataFrame with aggregated gene expression values.
    """
    grouped = df.groupby(value)[gnames].mean()
    if sort:
        grouped = grouped.sort_values(by=gnames[0], ascending=False)
    return grouped


def plot_heatmap(
        df: pd.DataFrame,
        fig_width: int = 8,
        fig_height: int = 4,
        cmap: mpl.colormaps = plt.cm.magma,
        vmax: Optional[float] = None,
        unit: str = '[ln(batch-normalized + 1)]'
    ) -> Tuple[plt.Figure, plt.Axes]:
    """Plot a heatmap from a DataFrame.

    Parameters
    ----------
    df: pandas.DataFrame
        DataFrame to plot as a heatmap.
    fig_width: int
        Width of the figure.
    fig_height: int
        Height of the figure.
    cmap: matplotlib.colors.Colormap
        Colormap to use for the heatmap.

    Returns
    -------
    fig: matplotlib.pyplot.Figure
        Figure object containing the heatmap.
    ax: matplotlib.pyplot.Axes
        Axes object containing the heatmap.
    """

    arr = df.to_numpy().astype('float')

    vmin = arr.min()
    vmax = arr.max()
    norm = mpl.colors.Normalize(vmin=vmin, vmax=vmax)
    sm = plt.cm.ScalarMappable(cmap=cmap, norm=norm)
    cmap = sm.get_cmap()

    fig, ax = plt.subplots()
    fig.set_size_inches(fig_width, fig_height)

    ax.imshow(arr, cmap=cmap, aspect='auto')
    xlabs = df.columns.values
    ylabs = df.index.values

    ax.set_xticks(range(len(xlabs)))
    ax.set_xticklabels(xlabs)

    ax.set_yticks(range(len(ylabs)))
    ax.set_yticklabels(ylabs)

    cbar = fig.colorbar(sm, ax=ax, orientation='vertical', fraction=0.1, pad=0.01)
    cbar.set_label(unit)

    return fig, ax

Visualize gene expression for selected genes by manual annotation region.

Below we average the expression of our selected genes across the different manually annotated regions that each cell is uniquely assigned to. We compute these expressions for each species individually. For a side by side comparison of gene expression heatmaps for each species, see the HMBA 10X gene expression tutorial.

human_gene_names = human_cell_metadata_with_genes.columns[
    human_cell_metadata_with_genes.columns.isin(gene_names)
].to_numpy()
agg = aggregate_by_metadata(human_cell_metadata_with_genes, human_gene_names, 'parcellation_term_symbol', sort=True)
agg = agg.loc[parcellation_terms.index[parcellation_terms.index.isin(agg.index)]]
plot_heatmap(agg, 8, 5)
plt.title('Human Anatomical Annotations')
plt.show()

macaque_gene_names = macaque_cell_metadata_with_genes.columns[
    macaque_cell_metadata_with_genes.columns.isin(gene_names)
].to_numpy()
agg = aggregate_by_metadata(macaque_cell_metadata_with_genes, macaque_gene_names, 'parcellation_term_symbol', sort=True)
agg = agg.loc[parcellation_terms.index[parcellation_terms.index.isin(agg.index)]]
plot_heatmap(agg, 8, 5)
plt.title('Macaque Anatomical Annotations')
plt.show()

marmoset_gene_names = marmoset_cell_metadata_with_genes.columns[
    marmoset_cell_metadata_with_genes.columns.isin(gene_names)
].to_numpy()
agg = aggregate_by_metadata(marmoset_cell_metadata_with_genes, marmoset_gene_names, 'parcellation_term_symbol', sort=True)
agg = agg.loc[parcellation_terms.index[parcellation_terms.index.isin(agg.index)]]
plot_heatmap(agg, 8, 5)
plt.title('Marmoset Anatomical Annotations')
plt.show()

Taxonomy mapping

Finally, let’s load the taxonomy information so that we can plot gene expression versus various taxons in a heatmap for each species. Below, we load and merge all the information we need to plot cell colors and taxonomy as done in previous HMBA tutorial.

cluster = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-taxonomy',
    file_name='cluster',
    dtype={'number_of_cells': 'Int64'}
).rename(columns={'label': 'cluster_annotation_term_label'}).set_index('cluster_annotation_term_label')
cluster_annotation_term_set = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-taxonomy',
    file_name='cluster_annotation_term_set'
).rename(columns={'label': 'cluster_annotation_term_label'})

cluster_annotation_term = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-taxonomy',
    file_name='cluster_annotation_term',
).rename(columns={'label': 'cluster_annotation_term_label'}).set_index('cluster_annotation_term_label')

cluster_to_cluster_annotation_membership = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-taxonomy',
    file_name='cluster_to_cluster_annotation_membership',
).set_index('cluster_annotation_term_label')
membership_with_cluster_info = cluster_to_cluster_annotation_membership.join(
    cluster.reset_index().set_index('cluster_alias')[['number_of_cells']],
    on='cluster_alias'
)
membership_with_cluster_info = membership_with_cluster_info.join(cluster_annotation_term, rsuffix='_anno_term').reset_index()
membership_groupby = membership_with_cluster_info.groupby(
    ['cluster_alias', 'cluster_annotation_term_set_name']
)

cluster_annotation_term_set = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-taxonomy',
    file_name='cluster_annotation_term_set'
).rename(columns={'label': 'cluster_annotation_term_label'})

# term_sets = abc_cache.get_metadata_dataframe(directory='WHB-taxonomy', file_name='cluster_annotation_term_set').set_index('label')
cluster_details = membership_groupby['cluster_annotation_term_name'].first().unstack()
cluster_order = membership_groupby['term_order'].first().unstack()
cluster_order.sort_values(['Neighborhood', 'Class', 'Subclass', 'Group', 'Cluster'], inplace=True)
cluster_order.rename(
    columns={'Neighborhood': 'Neighborhood_order',
             'Class': 'Class_order',
             'Subclass': 'Subclass_order',
             'Group': 'Group_order',
             'Cluster': 'Cluster_order'},
    inplace=True
)

cluster_colors = membership_groupby['color_hex_triplet'].first().unstack()
cluster_colors = cluster_colors[cluster_annotation_term_set['name']]
cluster_colors.sort_values(
    ['Neighborhood', 'Class', 'Subclass', 'Group', 'Cluster'],
    inplace=True
)

Each of the three species gene expression has been mapped to the HMBA 10X taxonomy using MapMyCells. Below we load the mapping of each cell to the cluster it was assigned data for each species in the HMBA-BG dataset.

human_cell_to_cluster = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Human',
    file_name='mmc_results'
).set_index('cell_label')[['Cluster']].rename(columns={'Cluster': 'cluster_alias'})

macaque_cell_to_cluster = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-MERSCOPE-Macaque',
    file_name='mmc_results',
).set_index('cell_label')[['Cluster']].rename(columns={'Cluster': 'cluster_alias'})

marmoset_cell_to_cluster = abc_cache.get_metadata_dataframe(
    directory='HMBA-BG-Xenium-Marmoset',
    file_name='mmc_results',
).set_index('cell_label')[['Cluster']].rename(columns={'Cluster': 'cluster_alias'})

As in the previous spatial tutorial, the spatial data of the 3 HMBA-BG species in this release are registered to a extended version of the the taxonomy that contains clusters that are considered Adjacent to the Basal Ganglia. These are cell types that are present in the data but are not considered part of the basal ganglia. These clusters are mapped into a Group, Subclass, Class, and Neighborhood in a single path of the taxonomy called Adjacent. The release consensus taxonomy does not explicitly contain this taxon. We thus add them below, assigning any cell that was not mapped into to a group in the taxonomy an Adjacent cell type at all levels with a grey color. We give these Adjacent taxons a odering at the very end of the set of taxons at each level.

def fill_adjacent_data(input_df):
    output_df = input_df.fillna(
        {'cluster_alias': 'Adjacent',
         'cluster_label': 'Adjacent',
         'Class': 'Adjacent',
         'Cluster': 'Adjacent',
         'Group': 'Adjacent',
         'Neighborhood': 'Adjacent',
         'Subclass': 'Adjacent',
         'Neighborhood_color': '#808080',
         'Class_color': '#808080',
         'Subclass_color': '#808080',
         'Group_color': '#808080',
         'Cluster_color': '#808080',
         'Neighborhood_order': cluster_order.max()['Neighborhood_order'] + 1,
         'Class_order': cluster_order.max()['Class_order'] + 1,
         'Subclass_order': cluster_order.max()['Subclass_order'] + 1,
         'Group_order': cluster_order.max()['Group_order'] + 1,
         'Cluster_order': cluster_order.max()['Cluster_order'] + 1,
        }
    )
    return output_df.astype(
        {
            'Neighborhood_order': 'int',
            'Class_order': 'int',
            'Subclass_order': 'int',
            'Group_order': 'int',
            'Cluster_order': 'int',
        }
    )

human_cell_metadata_with_genes = human_cell_metadata_with_genes.join(human_cell_to_cluster)
human_cell_metadata_with_genes = human_cell_metadata_with_genes.join(cluster_details, on='cluster_alias')
human_cell_metadata_with_genes = human_cell_metadata_with_genes.join(cluster_colors, on='cluster_alias', rsuffix='_color')
human_cell_metadata_with_genes = human_cell_metadata_with_genes.join(cluster_order, on='cluster_alias')
human_cell_metadata_with_genes = fill_adjacent_data(human_cell_metadata_with_genes)

del human_cell_to_cluster

human_cell_metadata_with_genes.head()

	brain_section_label	brain_section_barcode	x_experiment	y_experiment	segmentation_job_id	cell_volume	total_counts	total_counts_genes	total_counts_genes_batch_normalized	n_unique_genes	...	Neighborhood_color	Class_color	Subclass_color	Group_color	Cluster_color	Class_order	Cluster_order	Group_order	Neighborhood_order	Subclass_order
cell_label
1315611012_1-20250227	H22.30.001.CX.16.02.03.03	1315611012	4687.0664	2342.8290	sis_cellpose_v1	78.062865	26	26	48.419523	13	...	#f2ca7d	#8605d4	#def476	#488edc	#a9de1a	3	142	9	1	7
1315611012_2-20250227	H22.30.001.CX.16.02.03.03	1315611012	4939.2110	2343.9695	sis_cellpose_v1	NaN	5	5	9.311447	5	...	#f2ca7d	#aa6dec	#761646	#cbfc1e	#940ebc	2	100	4	1	3
1315611012_3-20250227	H22.30.001.CX.16.02.03.03	1315611012	4788.4240	2343.7327	sis_cellpose_v1	8.110529	11	11	20.485183	7	...	#f2ca7d	#8605d4	#def476	#488edc	#a9de1a	3	142	9	1	7
1315611012_4-20250227	H22.30.001.CX.16.02.03.03	1315611012	4974.0500	2352.2866	sis_cellpose_v1	NaN	4	4	7.449157	4	...	#f2ca7d	#8605d4	#def476	#401e66	#88772d	3	160	10	1	7
1315611012_5-20250227	H22.30.001.CX.16.02.03.03	1315611012	4681.3800	2346.6519	sis_cellpose_v1	NaN	5	5	9.311447	5	...	#f2ca7d	#8605d4	#def476	#401e66	#88772d	3	160	10	1	7

5 rows × 59 columns

Load the Macaque and Marmoset data in the same way.

macaque_cell_metadata_with_genes = macaque_cell_metadata_with_genes.join(macaque_cell_to_cluster)
macaque_cell_metadata_with_genes = macaque_cell_metadata_with_genes.join(cluster_details, on='cluster_alias')
macaque_cell_metadata_with_genes = macaque_cell_metadata_with_genes.join(cluster_colors, on='cluster_alias', rsuffix='_color')
macaque_cell_metadata_with_genes = macaque_cell_metadata_with_genes.join(cluster_order, on='cluster_alias')
macaque_cell_metadata_with_genes = fill_adjacent_data(macaque_cell_metadata_with_genes)

del macaque_cell_to_cluster

macaque_cell_metadata_with_genes.head()

	brain_section_label	brain_section_barcode	x_experiment	y_experiment	segmentation_job_id	cell_volume	total_counts	total_counts_genes	total_counts_genes_batch_normalized	n_unique_genes	...	Neighborhood_color	Class_color	Subclass_color	Group_color	Cluster_color	Class_order	Cluster_order	Group_order	Neighborhood_order	Subclass_order
cell_label
1291814091_147-20250227	QM23.50.001.CX.44.01.05.01	1291814091	4432.6885	3979.6113	sis_cellpose_v1	756.243171	330	330	636.778305	83	...	#f2ca7d	#8605d4	#def476	#488edc	#a5e9f2	3	149	9	1	7
1291814091_157-20250227	QM23.50.001.CX.44.01.05.01	1291814091	4430.7207	3986.3145	sis_cellpose_v1	564.354610	326	326	629.059780	69	...	#f2ca7d	#8605d4	#def476	#488edc	#62620e	3	146	9	1	7
1291814091_169-20250227	QM23.50.001.CX.44.01.05.01	1291814091	4377.2495	4001.7097	sis_cellpose_v1	167.832120	62	62	119.637136	34	...	#f2ca7d	#cba5ec	#f6390c	#361d61	#b89f3b	4	241	14	1	10
1291814091_180-20250227	QM23.50.001.CX.44.01.05.01	1291814091	4399.9390	4017.4290	sis_cellpose_v1	400.366153	231	231	445.744813	77	...	#f2ca7d	#6ec0da	#604f15	#e16c95	#21e5fe	1	25	1	1	1
1291814091_181-20250227	QM23.50.001.CX.44.01.05.01	1291814091	4392.6035	4016.5780	sis_cellpose_v1	308.688416	203	203	391.715139	70	...	#f2ca7d	#6ec0da	#604f15	#e16c95	#21e5fe	1	25	1	1	1

5 rows × 59 columns

marmoset_cell_metadata_with_genes = marmoset_cell_metadata_with_genes.join(marmoset_cell_to_cluster)
marmoset_cell_metadata_with_genes = marmoset_cell_metadata_with_genes.join(cluster_details, on='cluster_alias')
marmoset_cell_metadata_with_genes = marmoset_cell_metadata_with_genes.join(cluster_colors, on='cluster_alias', rsuffix='_color')
marmoset_cell_metadata_with_genes = marmoset_cell_metadata_with_genes.join(cluster_order, on='cluster_alias')
marmoset_cell_metadata_with_genes = fill_adjacent_data(marmoset_cell_metadata_with_genes)

del marmoset_cell_to_cluster

marmoset_cell_metadata_with_genes.head()

	brain_section_label	brain_section_barcode	x_experiment	y_experiment	segmentation_job_id	segmentation_method	cell_area	nucleus_area	n_nuclei_in_cell	total_counts	...	Neighborhood_color	Class_color	Subclass_color	Group_color	Cluster_color	Class_order	Cluster_order	Group_order	Neighborhood_order	Subclass_order
cell_label
1382042951_abmkfncc-1-20250227	CJ23.56.004.CX.42.01.06	1382042951	5923.4927	6160.6543	10X cell segmentation kit - default	Segmented by boundary stain (ATP1A1+CD45+E-Cad...	123.005630	72.566090	1	354	...	#f2ca7d	#8605d4	#def476	#488edc	#5a9ad6	3	158	9	1	7
1382042951_abmmdgea-1-20250227	CJ23.56.004.CX.42.01.06	1382042951	6137.5723	6217.0757	10X cell segmentation kit - default	Segmented by boundary stain (ATP1A1+CD45+E-Cad...	46.194847	NaN	0	193	...	#f2ca7d	#6ec0da	#604f15	#e16c95	#9c3de0	1	36	1	1	1
1382042951_abmojfce-1-20250227	CJ23.56.004.CX.42.01.06	1382042951	5802.6750	5614.0080	10X cell segmentation kit - default	Segmented by boundary stain (ATP1A1+CD45+E-Cad...	52.652190	19.462345	2	313	...	#f2ca7d	#6ec0da	#7f207a	#c96e0a	#f12367	1	81	3	1	2
1382042951_abmomnim-1-20250227	CJ23.56.004.CX.42.01.06	1382042951	5805.9424	5599.3257	10X cell segmentation kit - default	Segmented by boundary stain (ATP1A1+CD45+E-Cad...	35.492813	14.766094	1	161	...	#f2ca7d	#6ec0da	#7f207a	#c96e0a	#82d054	1	84	3	1	2
1382042951_aeiamgga-1-20250227	CJ23.56.004.CX.42.01.06	1382042951	6291.2680	6068.7200	10X cell segmentation kit - default	Segmented by boundary stain (ATP1A1+CD45+E-Cad...	167.800630	66.921560	2	603	...	#f2ca7d	#8605d4	#def476	#488edc	#5a9ad6	3	158	9	1	7

5 rows × 63 columns

Visualize gene expression for selected genes by the HMBA-BG taxonomy.

Below we average the expression of our selected genes across taxons from the HMBA-BG taxonomy. We show the expression for taxons at the class level for each species. For a side by side comparison of gene expression heatmaps for each species, see the HMBA 10X gene expression tutorial.

human_gene_names = human_cell_metadata_with_genes.columns[
    human_cell_metadata_with_genes.columns.isin(gene_names)
].to_numpy()
agg = aggregate_by_metadata(human_cell_metadata_with_genes, human_gene_names, 'Class')
agg = agg.loc[list(reversed(list(agg.index)))]
plot_heatmap(agg, 8, 11, vmax=15)
plt.title('Human - Class')
plt.show()

macaque_gene_names = macaque_cell_metadata_with_genes.columns[
    macaque_cell_metadata_with_genes.columns.isin(gene_names)
].to_numpy()
agg = aggregate_by_metadata(macaque_cell_metadata_with_genes, macaque_gene_names, 'Class')
agg = agg.loc[list(reversed(list(agg.index)))]
plot_heatmap(agg, 8, 11, vmax=15)
plt.title('Macaque - Class')
plt.show()

marmoset_gene_names = marmoset_cell_metadata_with_genes.columns[
    marmoset_cell_metadata_with_genes.columns.isin(gene_names)
].to_numpy()
agg = aggregate_by_metadata(marmoset_cell_metadata_with_genes, marmoset_gene_names, 'Class')
agg = agg.loc[list(reversed(list(agg.index)))]
plot_heatmap(agg, 8, 11, vmax=15)
plt.title('Marmoset - Class')
plt.show()

To learn more about the spatial data see the HBMA-BG Spatial Slabs and Taxonomy notebook.

To learn more about the taxonomy used in this notebook and the data it is derived from, see the HMBA-BG Clustering Analysis and Taxonomy notebook.
