OpenScope’s Psycode Dataset

This notebook explores the “PsyCode” dataset, an OpenScope project designed to investigate the effects of psilocybin on visual processing and behavior in the mouse visual cortex. The core experimental design follows a ‘pre-drug / post-drug’ structure, allowing for a within-subject comparison of neural activity and task performance. Initially, mice are trained on a visual change detection task, similar to the paradigm used in the Visual Behavior Optical Physiology and Visual Behavior Neuropixels projects. In this go/no-go task, mice are shown a continuous series of briefly presented natural images (presented for 250 ms), and they earn water rewards by correctly reporting when the identity of the image changes. Alongside this behavior, the experiment includes a battery of passive visual stimulation protocols to probe the functional properties of visual neurons.

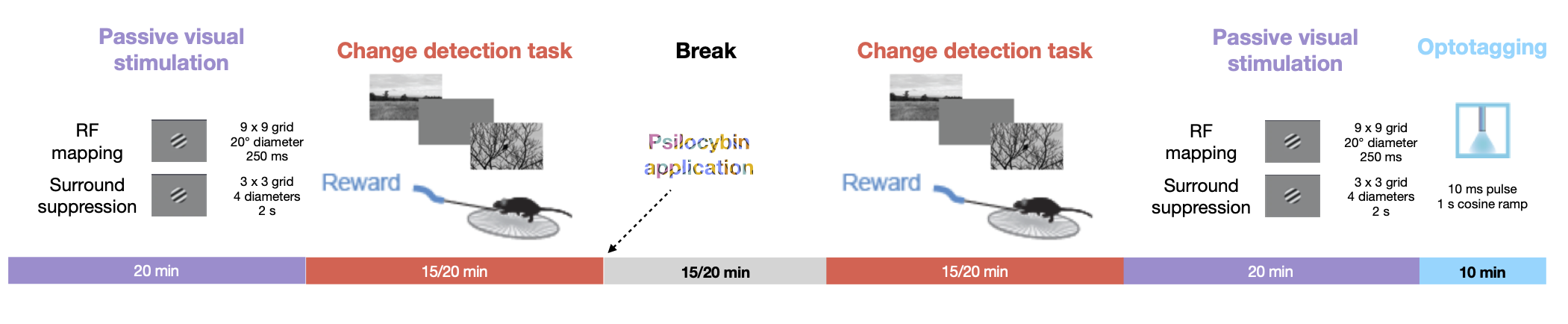

The experimental timeline follows a structured sequence. Before psilocybin application, mice first undergo passive visual stimulation for receptive field (RF) mapping and a surround suppression paradigm, providing a baseline measurement of each neuron’s tuning properties. This is followed by the change detection task to end the pre-injection epoch. After psilocybin is administered, the same sequence of stimuli is presented in reverse: first the change detection task, followed by receptive field mapping and surround suppression. Finally, passive visual stimulation is repeated, now including an optotagging protocol at the end to identify cortical SST neurons. This symmetrical design—with both behavioral and passive protocols repeated before and after drug administration—enables a powerful within-subject analysis of how psilocybin modulates visual processing, from basic receptive field properties to complex task-dependent dynamics involving natural image perception. The dataset therefore offers a unique opportunity to link molecularly-specific cell types, natural image perception, and the state-dependent changes induced by a psychedelic compound.

Session structure

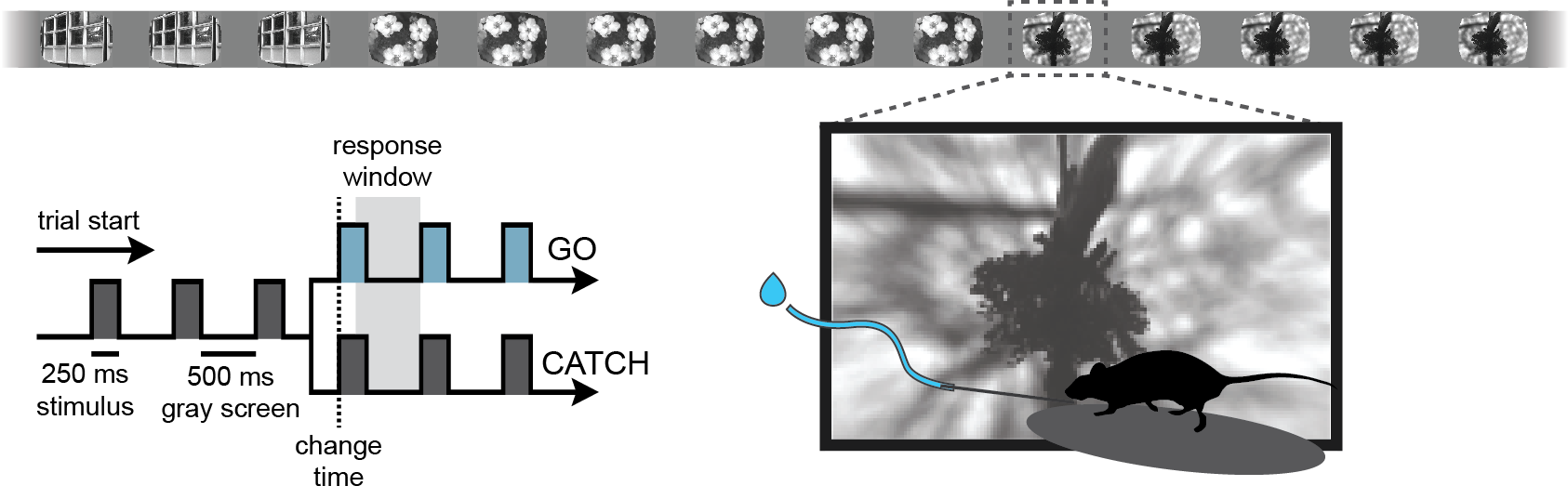

Change detection task

Environment Setup

⚠️Note: If running on a new environment, run this cell once and then restart the kernel⚠️

import warnings
warnings.filterwarnings('ignore')

try:
    from databook_utils.dandi_utils import dandi_download_open
except:
    !git clone https://github.com/AllenInstitute/openscope_databook.git
    %cd openscope_databook
    %pip install -e .
    %cd docs/projects

import os

import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

from math import floor, ceil, isclose
from PIL import Image
from collections import Counter

The Experiment

As shown in the metadata table below, Openscope’s Psycode Experiment has produced 20 main files on the DANDI Archive, with 6 males and 14 females which all have Sst genotypes. This table was generated from Getting Experimental Metadata from DANDI.

session_files = pd.read_csv("../../data/psycode_sessions.csv")
session_files

	Unnamed: 0	identifier	size	path	session_time	sub_name	session_id	sub_sex	sub_age	sub_genotype	probes	stim types	#_units	session_length
0	0	460eb1a0-9707-4a24-970d-e41a6c1d8792	16765763553	sub-767932/sub-767932_ses-ecephys-767932-2025-...	2025-03-26 14:07:06-07:00	767932	ecephys_767932_2025-03-26_14-07-06	F	P185D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	3443	7324.32257
1	1	5de7caf3-111f-4155-9f70-6b570e884883	17526605372	sub-767932/sub-767932_ses-ecephys-767932-2025-...	2025-03-25 14:35:45-07:00	767932	ecephys_767932_2025-03-25_14-35-45	F	P184D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	3913	7316.97920
2	2	94742fda-d92e-4847-8c61-463115a0bde6	17272136529	sub-753316/sub-753316_ses-ecephys-753316-2025-...	2025-01-29 13:57:16-08:00	753316	ecephys_753316_2025-01-29_13-57-16	F	P202D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	3854	7319.29586
3	3	3b7e99ce-184c-4b1b-aff0-4ecd76757fc8	18491019021	sub-760322/sub-760322_ses-ecephys-760322-2025-...	2025-02-06 14:07:25-08:00	760322	ecephys_760322_2025-02-06_14-07-25	F	P176D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	4743	7313.39442
4	4	d55671d7-de8b-4873-8b30-9fadc1a4bf43	17661675315	sub-767925/sub-767925_ses-ecephys-767925-2025-...	2025-02-13 11:40:19-08:00	767925	ecephys_767925_2025-02-13_11-40-19	M	P144D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	3932	7323.10842
5	5	f5850f67-1961-4f66-a476-0389b7ff127d	18238462077	sub-760324/sub-760324_ses-ecephys-760324-2025-...	2025-02-20 11:31:01-08:00	760324	ecephys_760324_2025-02-20_11-31-01	F	P190D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	4471	7319.64269
6	6	2981ef2f-55e0-4cc7-a920-a2d1dc591357	17752907004	sub-767926/sub-767926_ses-ecephys-767926-2025-...	2025-02-27 15:12:01-08:00	767926	ecephys_767926_2025-02-27_15-12-01	M	P158D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	4086	7323.49644
7	7	4f7f4edf-19e7-405a-9052-94be8b50a7b3	18935765451	sub-760322/sub-760322_ses-ecephys-760322-2025-...	2025-02-05 14:30:46-08:00	760322	ecephys_760322_2025-02-05_14-30-46	F	P175D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	5057	7321.59033
8	8	4b006de0-a806-48f0-bd60-6725da547e3d	18616606786	sub-760324/sub-760324_ses-ecephys-760324-2025-...	2025-02-19 10:56:40-08:00	760324	ecephys_760324_2025-02-19_10-56-40	F	P189D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	4626	7322.07561
9	9	8bf19ba7-725c-430e-8f82-b3da1acb4e10	18965757347	sub-767926/sub-767926_ses-ecephys-767926-2025-...	2025-02-26 15:49:35-08:00	767926	ecephys_767926_2025-02-26_15-49-35	M	P157D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	4712	7324.71362
10	10	1886aeaf-6577-48bd-9228-7fd95983da87	17679713514	sub-752309/sub-752309_ses-ecephys-752309-2025-...	2025-02-12 13:53:52-08:00	752309	ecephys_752309_2025-02-12_13-53-52	F	P221D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	4055	7315.83889
11	11	655ce33a-a55c-4fa9-8ca5-f40d92b0918f	17866278661	sub-752309/sub-752309_ses-ecephys-752309-2025-...	2025-02-11 14:00:40-08:00	752309	ecephys_752309_2025-02-11_14-00-40	F	P220D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	4113	7322.80188
12	12	3e1dc8b4-83b3-499c-9108-c8766c4a5784	17956789173	sub-753316/sub-753316_ses-ecephys-753316-2025-...	2025-01-28 13:57:06-08:00	753316	ecephys_753316_2025-01-28_13-57-06	F	P201D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	4351	6667.37102
13	13	34ada156-5beb-48f9-8e31-a2c566be630b	17202278421	sub-767925/sub-767925_ses-ecephys-767925-2025-...	2025-02-14 11:04:33-08:00	767925	ecephys_767925_2025-02-14_11-04-33	M	P145D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	3714	7314.29516
14	14	b405e945-91c7-4c41-bd92-93b038406a15	18617345691	sub-752312/sub-752312_ses-ecephys-752312-2025-...	2025-01-31 11:02:20-08:00	752312	ecephys_752312_2025-01-31_11-02-20	F	P209D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	4596	7323.18802
15	15	090e4d8a-8a64-4c35-a88d-785be4e99921	16996611365	sub-773206/sub-773206_ses-ecephys-773206-2025-...	2025-04-02 11:46:05-07:00	773206	ecephys_773206_2025-04-02_11-46-05	M	P164D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	3759	7318.80519
16	16	0c20f8dd-941a-42ac-9070-3e016adb5b46	16798139189	sub-773206/sub-773206_ses-ecephys-773206-2025-...	2025-04-01 10:47:58-07:00	773206	ecephys_773206_2025-04-01_10-47-58	M	P163D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	3558	7324.60082
17	17	945726f2-f198-4fca-b757-a43b2070462e	18354872351	sub-752311/sub-752311_ses-ecephys-752311-2025-...	2025-01-22 14:05:21-08:00	752311	ecephys_752311_2025-01-22_14-05-21	F	P200D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	4331	7323.62331
18	18	7dccf2da-3639-455a-b57e-78a27244539e	14925269966	sub-752312/sub-752312_ses-ecephys-752312-2025-...	2025-01-30 11:44:04-08:00	752312	ecephys_752312_2025-01-30_11-44-04	F	P208D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeA', 'Prob...	{'5 hz pulse train_presentations', 'behavior_p...	3287	7317.49155
19	19	d3ea4393-391f-417a-ab84-aebb5f8f5abb	18036250278	sub-752311/sub-752311_ses-ecephys-752311-2025-...	2025-01-23 14:00:04-08:00	752311	ecephys_752311_2025-01-23_14-00-04	F	P201D	Sst-IRES-Cre/wt;Ai32(RCL-ChR2(H134R)_EYFP)/wt	{'ProbeC', 'ProbeE', 'ProbeD', 'ProbeF', 'Devi...	{'5 hz pulse train_presentations', 'behavior_p...	4141	7316.28601

m_count = len(session_files["sub_sex"][session_files["sub_sex"] == "M"])
f_count = len(session_files["sub_sex"][session_files["sub_sex"] == "F"])
sst_count = len(session_files[session_files["sub_genotype"].str.count("Sst") >= 1])
pval_count = len(session_files[session_files["sub_genotype"].str.count("Pval") >= 1])
wt_count = len(session_files[session_files["sub_genotype"].str.count("wt/wt") >= 1])

print("Dandiset Overview:")
print(len(session_files), "files")
print(len(set(session_files["sub_name"])), "subjects", m_count, "males,", f_count, "females")
print(sst_count, "sst,", pval_count, "pval,", wt_count, "wt")

Dandiset Overview:
20 files
10 subjects 6 males, 14 females
20 sst, 0 pval, 0 wt

Downloading Ecephys Files

dandiset_id = "001417"
dandi_filepath_saline = "sub-753316/sub-753316_ses-ecephys-753316-2025-01-28-13-57-06_ecephys.nwb"
dandi_filepath_psilo = "sub-753316/sub-753316_ses-ecephys-753316-2025-01-29-13-57-16_ecephys.nwb"
download_loc = "."
dandi_api_key = os.environ["DANDI_API_KEY"]

# This can sometimes take a while depending on the size of the file
io_saline = dandi_download_open(dandiset_id, dandi_filepath_saline, download_loc, dandi_api_key=dandi_api_key)
nwb_saline = io_saline.read()

io_psilo = dandi_download_open(dandiset_id, dandi_filepath_psilo, download_loc, dandi_api_key=dandi_api_key)
nwb_psilo = io_psilo.read()

File already exists
Opening file
File already exists
Opening file

Showing Probe Tracks

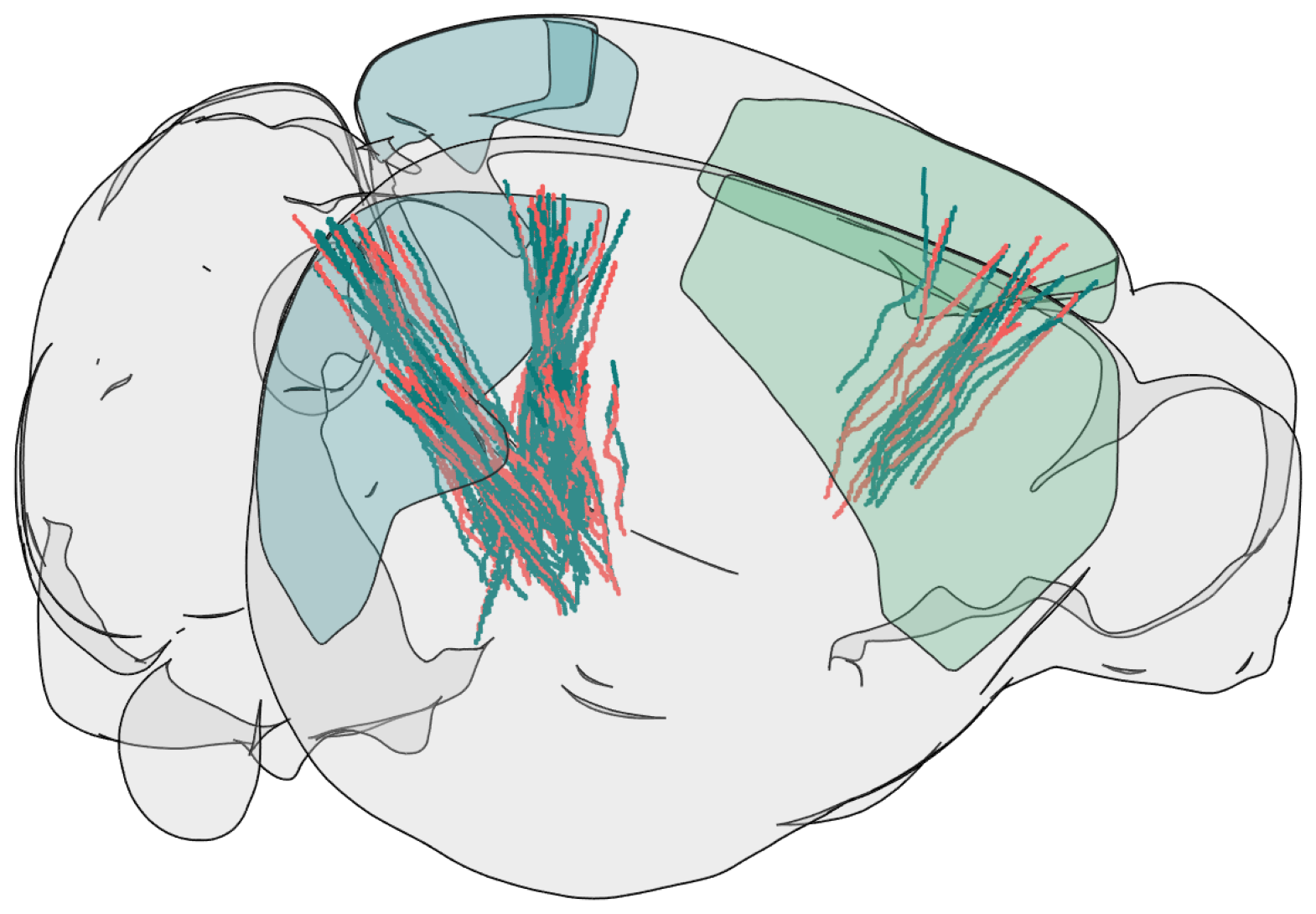

The images below were rendered using the Visualizing Neuropixels Probe Locations notebook. The probes are using the Common Coordinate Framework (CCF). The experiment uses six probes labeled A-F to target various regions.

teal = saline

salmon = psilocybin

all_probes = Image.open("../../data/images/psycode_all_probes.png")

fig, ax = plt.subplots(1,1,figsize=(20,60))

ax.imshow(all_probes)

# for ax in axes:
ax.axis("off")

(-0.5, 1166.5, 805.5, -0.5)

Extracting Units Spikes

Below, the Units table is retrieved from the file. It contains many metrics for every putative neuronal unit, printed below. For the analysis in this notebook, we are only interested in the spike_times attribute. This is an array of timestamps that a spike is measured for each unit. For more information on the various unit metrics, see Visualizing Unit Quality Metrics.

units_saline = nwb_saline.units.to_dataframe()
units_saline[:10]

	spike_times	electrodes	waveform_mean	waveform_sd	unit_name	exp_decay	device_name	nn_hit_rate	depth	amplitude	...	ks_unit_id	estimated_x	drift_ptp	l_ratio	amplitude_cv_range	firing_rate	sync_spike_4	drift_mad	amplitude_cutoff	velocity_above
id
0	[24.254828959684225, 28.56911275642596, 36.389...	location ...	[[-0.6786001324653625, -0.8564395904541016, -0...	[[16.961021423339844, 17.432619094848633, 17.1...	bb52adf6-b908-4bdf-8dfc-d68072c088eb	0.070916	ProbeA	0.230469	59.15	81.73	...	0	3.79	4.164932	0.328409	NaN	5.864713	0.000793	0.460940	0.000204	NaN
1	[2797.073748351054, 2797.264680967297, 2797.30...	location ...	[[-1.661401391029358, -1.2168009281158447, -0....	[[21.353561401367188, 24.988924026489258, 17.5...	e8e5231b-fc3a-423a-a0c6-b1a4633951c1	0.025485	ProbeA	0.959635	42.77	326.36	...	1	0.33	NaN	0.002154	NaN	0.370570	0.000738	NaN	0.000459	NaN
2	[39.21427277614529, 39.44813856447665, 45.5282...	location ...	[[-1.5912011861801147, -1.0951205492019653, -1...	[[17.77315902709961, 19.262195587158203, 18.13...	b453c3ec-0e19-4bed-83a4-e3901c486158	0.017647	ProbeA	0.453333	19.08	120.50	...	2	54.12	5.990026	0.383660	NaN	3.592614	0.001028	0.332858	0.000141	NaN
3	[24.25489562610051, 27.72414926320878, 28.5692...	location ...	[[-1.3899598121643066, -2.335320234298706, -2....	[[19.17218017578125, 21.91944694519043, 16.453...	263d4288-03f7-468d-87e6-8f932f3e60b2	0.028515	ProbeA	0.851598	28.78	358.12	...	3	5.93	NaN	0.162596	NaN	0.133323	0.001026	NaN	0.006551	NaN
4	[20.502176386944075, 22.088603762094387, 22.11...	location ...	[[-0.6130804419517517, 0.8096398115158081, -0....	[[13.425420761108398, 15.351962089538574, 15.3...	3288e605-d6fb-4da2-8bba-976c90065590	0.027983	ProbeA	0.452222	-3.58	106.37	...	4	35.46	NaN	2.151348	1.037750	1.392304	0.003241	NaN	0.001459	NaN
5	[1308.6085386152433, 1333.9201102186387, 1392....	location ...	[[-0.8049142956733704, 0.8164132833480835, -1....	[[17.11772918701172, 20.254188537597656, 15.07...	22d32b90-2188-4390-a1c5-7d71bf075989	0.029629	ProbeA	0.635724	34.00	322.87	...	5	3.69	NaN	0.156626	NaN	0.055654	0.000000	NaN	NaN	NaN
6	[2805.3872837943777, 2805.4413169247778, 2805....	location ...	[[-0.6598799824714661, 0.4679998457431793, 0.0...	[[18.709257125854492, 18.72583770751953, 17.29...	2c6fd919-7f85-4e6c-b405-b8d2672e3a2f	NaN	ProbeA	0.837240	80.18	182.32	...	6	20.12	NaN	0.022394	NaN	0.242580	0.001127	NaN	0.002586	632.246536
7	[28.092014548275046, 36.78661522708982, 36.948...	location ...	[[-3.116880178451538, -1.895399570465088, -1.9...	[[21.290372848510742, 22.783222198486328, 23.8...	d08c8379-41c2-4395-990d-c6bf2d53ceb8	0.034820	ProbeA	0.924444	4.33	303.72	...	7	21.27	NaN	0.001605	NaN	0.124572	0.000000	NaN	0.001914	482.258327
8	[21.827338076669466, 23.11983322241471, 24.028...	location ...	[[-2.045161247253418, -1.1278799772262573, -1....	[[13.081856727600098, 14.002058982849121, 13.0...	979520c9-8daf-4d75-831e-f4eb8cbee593	0.035066	ProbeA	0.611111	-0.40	134.03	...	8	25.14	NaN	0.747981	1.612507	0.664838	0.002057	NaN	0.001777	NaN
9	[20.22021077926235, 20.245410684618463, 20.451...	location ...	[[-0.6973198056221008, -0.8845196962356567, 0....	[[14.150551795959473, 16.857603073120117, 15.2...	cb94c05c-06b8-4e82-8a91-3e5cc03844a8	0.023434	ProbeA	0.610000	13.28	165.63	...	9	53.71	NaN	0.223352	NaN	1.836577	0.000372	NaN	0.000218	NaN

10 rows × 54 columns

def get_unit_location(unit_row):
    mean_waveforms = unit_row['waveform_mean']
    waveform_mins = np.min(mean_waveforms, axis=0)
    peak_channel_idx = np.argmin(waveform_mins)
    detected_electrodes = unit_row['electrodes']
    unit_location = detected_electrodes.iloc[peak_channel_idx].location
    return unit_location

print(set(get_unit_location(row) for _, row in units_saline.iterrows()))

{'VISp6a', 'LSc', 'POST', 'fp', 'MOs1', 'VISp1', 'LGd-sh', 'LGv', 'ACAv2/3', 'VISp2/3', 'root', 'VPM', 'ACAd2/3', 'VISal1', 'PP', 'VISa6a', 'DG-po', 'LT', 'SSp-bfd2/3', 'SSp-bfd6a', 'DG-sg', 'SSp-bfd4', 'VISp5', 'ACAv5', 'PIL', 'CA2', 'SSp-bfd1', 'fiber tracts', 'VISp6b', 'VISam6b', 'VISal6b', 'ccs', 'ccb', 'ACAv1', 'VISrl6a', 'SUB', 'VISp4', 'MOs2/3', 'LGd-co', 'void', 'CA1', 'VISal2/3', 'VISal6a', 'ACAd5', 'VISrl5', 'bsc', 'DG-mo', 'VISal4', 'VISa2/3', 'LSr', 'VISam5', 'MGm', 'or', 'alv', 'VISam2/3', 'VISam4', 'VISa6b', 'CA3', 'MGd', 'MGv', 'MOs5', 'TH', 'dhc', 'VISal5', 'SSp-bfd5', 'VISam6a', 'VISa1'}

locations = [get_unit_location(row) for _, row in units_saline.iterrows()]
counts = Counter(locations)

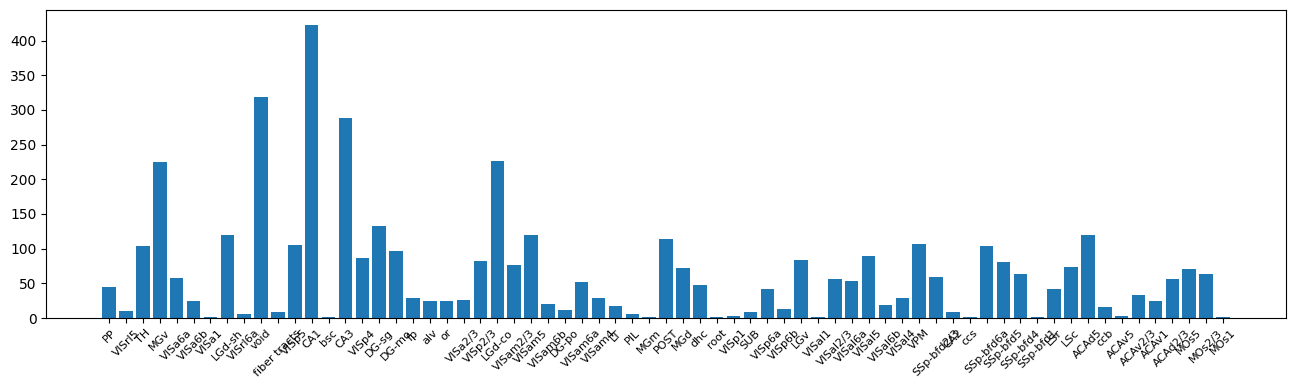

fig, ax = plt.subplots(figsize=(16,4))
ax.bar(counts.keys(), counts.values())

ax.tick_params(axis='x', labelrotation=45, labelsize=8)

let s focus on primary visual cortex to see responses to a single natural image

### you can uncommnet and check responses in other areas

brain_regions = [
    # --- LGd (Lateral Geniculate Nucleus) ---
    #'LGd-co', 'LGd-sh', 'LGv',

    # --- ACA (Anterior Cingulate) ---
    #'ACAd2/3', 'ACAv2/3', 'ACAv5',

    # --- VISp (Primary Visual) - Ordered 1→6 ---
    'VISp1', 'VISp2/3', 'VISp4', 'VISp5', 'VISp6a', 'VISp6b',

    # --- VISal (Anterolateral) ---
    #'VISal2/3', 'VISal4', 'VISal5', 'VISal6a', 'VISal6b',

    # --- VISam (Anteromedial) ---
    'VISam2/3', 'VISam4', 'VISam5', 'VISam6a', 'VISam6b',

    # --- VISa (Auditory-visual? / Anterior) ---
    #'VISa2/3', 'VISa6a', 'VISa6b',

    # --- VISrl (Rostrolateral) ---
    #'VISrl5', 'VISrl6a',
]

# select units based if they have 'good' quality and exists in one of the specified brain_regions
def select_units(units):
    units_spike_times = []
    location_units_spike_times = []
    for location in brain_regions:
        for _, row in units.query('(firing_range > 8) & (decoder_label== "sua") & (presence_ratio >.95)').iterrows():
            if get_unit_location(row) == location:
                location_units_spike_times.append(row.spike_times)
    units_spike_times += location_units_spike_times
    return units_spike_times

units_spike_times_saline = select_units(units_saline)
print(f"Selected {len(units_spike_times_saline)} units")

Selected 89 units

Session Timeline

To get a good idea of the order and the way stimulus is shown throughout the session, the code below generates a timeline of the various ‘epochs’ of stimulus. It can be seen that there are many repeated epochs of the gratings presentation, interspersed with intermission presentations, followed by an epoch of receptive field presentations.

nwb_saline.intervals['behavior_presentations']

behavior_presentations (TimeIntervals)

description: Presentation times and stimuli details for 'behavior' stimuli. Note: image_name references control_description in stimulus/templates

columns

start_time

Start time of epoch, in seconds

stop_time

Stop time of epoch, in seconds

duration

Description of duration

image_index

Description of image_index

image_name

Description of image_name

image_set

Description of image_set

omitted

Description of omitted

stim_name

Description of stim_name

timeseries

index into a TimeSeries object

table

	start_time	stop_time	duration	image_index	image_name	image_set	omitted	stim_name	timeseries
id
0	1440.39521	1440.64542	0.2502099999999245	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2694, 1, timestamps pynwb.base.TimeSeries at 0x2130140930848\nFields:\n comments: no comments\n conversion: 1.0\n data: <HDF5 dataset "data": shape (14085,), type "<f8">\n description: no description\n interval: 1\n offset: 0.0\n resolution: -1.0\n timestamps: <HDF5 dataset "timestamps": shape (14085,), type "<f8">\n timestamps_unit: seconds\n unit: s\n)]
1	1441.14580	1441.39601	0.2502099999999245	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2695, 1, timestamps pynwb.base.TimeSeries at 0x2130140930848\nFields:\n comments: no comments\n conversion: 1.0\n data: <HDF5 dataset "data": shape (14085,), type "<f8">\n description: no description\n interval: 1\n offset: 0.0\n resolution: -1.0\n timestamps: <HDF5 dataset "timestamps": shape (14085,), type "<f8">\n timestamps_unit: seconds\n unit: s\n)]
2	1441.89643	1442.14664	0.2502099999999245	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2696, 1, timestamps pynwb.base.TimeSeries at 0x2130140930848\nFields:\n comments: no comments\n conversion: 1.0\n data: <HDF5 dataset "data": shape (14085,), type "<f8">\n description: no description\n interval: 1\n offset: 0.0\n resolution: -1.0\n timestamps: <HDF5 dataset "timestamps": shape (14085,), type "<f8">\n timestamps_unit: seconds\n unit: s\n)]
3	1442.64706	1442.89726	0.2501999999999498	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2697, 1, timestamps pynwb.base.TimeSeries at 0x2130140930848\nFields:\n comments: no comments\n conversion: 1.0\n data: <HDF5 dataset "data": shape (14085,), type "<f8">\n description: no description\n interval: 1\n offset: 0.0\n resolution: -1.0\n timestamps: <HDF5 dataset "timestamps": shape (14085,), type "<f8">\n timestamps_unit: seconds\n unit: s\n)]

... and 3594 more row(s).

injection_time = nwb_saline.intervals["injection_times"].to_dataframe()["start_time"].iloc[0]
print("Injection time:", injection_time)

Injection time: 2881.3192

# extract epoch times from stim table where stimulus rows have a different 'block' than following row
# returns list of epochs, where an epoch is of the form (stimulus name, stimulus block, start time, stop time)
def extract_epochs(stim_name, stim_table, epochs):

    # specify a current epoch stop and start time
    epoch_start = stim_table.start_time[0]
    epoch_stop = stim_table.stop_time[0]

    # for each row, try to extend current epoch stop_time
    for i in range(len(stim_table)):
        this_block = stim_table.stim_name[i]
        # if end of table, end the current epoch
        if i+1 >= len(stim_table):
            epochs.append((stim_name, this_block, epoch_start, epoch_stop))
            break

        next_block = stim_table.stim_name[i+1]
        # if next row is the same stim block, push back epoch_stop time
        if next_block == this_block:
            epoch_stop = stim_table.stop_time[i+1]
        # otherwise, end the current epoch, start new epoch
        else:
            epochs.append((stim_name, this_block, epoch_start, epoch_stop))
            epoch_start = stim_table.start_time[i+1]
            epoch_stop = stim_table.stop_time[i+1]

    return epochs

# extract epochs from all valid stimulus tables
epochs = []
for stim_name in nwb_saline.intervals.keys():
    stim_table = nwb_saline.intervals[stim_name]
    try:
        epochs = extract_epochs(stim_name, stim_table, epochs)
    except:
        continue

# epochs take the form (stimulus name, stimulus block, start time, stop time)
print(len(epochs))
epochs.sort(key=lambda x: x[2])
for epoch in epochs:
    print(epoch)

9
('pre_receptive_field_mapping_presentations', 'pre_receptive_field_mapping', 44.391760000000005, 530.8161600000001)
('spontaneous_presentations', 'spontaneous', 530.8161600000001, 6436.58232)
('pre_surround_suppression_mapping_presentations', 'pre_surround_suppression_mapping', 985.78085, 1435.8580399999998)
('behavior_presentations', 'behavior', 1440.39521, 5040.26209)
('post_receptive_field_mapping_presentations', 'post_receptive_field_mapping', 5045.41641, 5531.82405)
('post_surround_suppression_mapping_presentations', 'post_surround_suppression_mapping', 5986.78866, 6436.88252)
('40 hz pulse train_presentations', '40 hz pulse train', 6452.19863, 6653.49075)
('raised_cosine_presentations', 'raised_cosine', 6454.01119, 6667.37102)
('5 hz pulse train_presentations', '5 hz pulse train', 6455.88564, 6651.78086)

time_start = floor(min([epoch[2] for epoch in epochs]))
time_end = ceil(max([epoch[3] for epoch in epochs]))
all_units_spike_times_saline = np.concatenate(units_spike_times_saline).ravel()
print(time_start, time_end)

# make histogram of unit spikes per second over specified timeframe
time_bin_edges = np.linspace(time_start, time_end, (time_end-time_start))
hist, bins = np.histogram(all_units_spike_times_saline, bins=time_bin_edges)

44 6668

# generate plot of spike histogram with colored epoch intervals and legend
fig, ax = plt.subplots(figsize=(15,5))

# assign unique color to each stimulus name
stim_names = list({epoch[0] for epoch in epochs})
colors = plt.cm.rainbow(np.linspace(0,1,len(stim_names)))
stim_color_map = {stim_names[i]:colors[i] for i in range(len(stim_names))}

epoch_key = {}
height = max(hist)
# draw colored rectangles for each epoch
for epoch in epochs:
    stim_name, stim_block, epoch_start, epoch_end = epoch
    color = stim_color_map[stim_name]
    rec = ax.add_patch(mpl.patches.Rectangle((epoch_start, 0), epoch_end-epoch_start, height, alpha=0.2, facecolor=color))
    epoch_key[stim_name] = rec

ax.set_xlim(time_start, time_end)
ax.set_ylim(-0.1, height+0.1)
ax.set_xlabel("time (s)")
ax.set_ylabel("# spikes")
ax.set_title("All Unit Spikes Per Second Throughout Epochs")

fig.legend(epoch_key.values(), epoch_key.keys(), loc="lower right", bbox_to_anchor=(1.18, 0.25))
ax.plot(bins[:-1], hist)

ax.axvline(injection_time, color="k", linestyle="--")

<matplotlib.lines.Line2D at 0x1f1bc5468c0>

Extracting Stimulus Times

nwb_saline.intervals.keys()

dict_keys(['40 hz pulse train_presentations', '5 hz pulse train_presentations', 'behavior_presentations', 'injection_times', 'post_receptive_field_mapping_presentations', 'post_surround_suppression_mapping_presentations', 'pre_receptive_field_mapping_presentations', 'pre_surround_suppression_mapping_presentations', 'raised_cosine_presentations', 'spontaneous_presentations'])

stim_table_saline = nwb_saline.intervals["behavior_presentations"]
print(np.mean(np.diff(stim_table_saline.start_time)))
print(set(stim_table_saline.image_name))

1.0007274589936057
{'im047_r', 'im036_r', 'im012_r', 'im083_r', 'im044_r', 'im115_r', 'im078_r', 'im111_r'}

stim_table_saline[:10]

	start_time	stop_time	duration	image_index	image_name	image_set	omitted	stim_name	timeseries
id
0	1440.39521	1440.64542	0.2502099999999245	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2694, 1, timestamps pynwb.base.TimeSeries at...
1	1441.14580	1441.39601	0.2502099999999245	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2695, 1, timestamps pynwb.base.TimeSeries at...
2	1441.89643	1442.14664	0.2502099999999245	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2696, 1, timestamps pynwb.base.TimeSeries at...
3	1442.64706	1442.89726	0.2501999999999498	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2697, 1, timestamps pynwb.base.TimeSeries at...
4	1443.39769	1443.64790	0.2502099999999245	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2698, 1, timestamps pynwb.base.TimeSeries at...
5	1444.14832	1444.39852	0.2501999999999498	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2699, 1, timestamps pynwb.base.TimeSeries at...
6	1444.89895	1445.14915	0.2501999999999498	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2700, 1, timestamps pynwb.base.TimeSeries at...
7	1445.64958	1445.89978	0.2501999999999498	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2701, 1, timestamps pynwb.base.TimeSeries at...
8	1446.40021	1446.65041	0.2501999999999498	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2702, 1, timestamps pynwb.base.TimeSeries at...
9	1447.15084	1447.40104	0.2501999999999498	0.0	im036_r	Natural_Images_Lum_Matched_set_ophys_G_2019.05.26	False	behavior	[(2703, 1, timestamps pynwb.base.TimeSeries at...

# select times where im036_r was displayed
selected_stim_times_saline = [stim_table_saline[i].start_time.item() for i in range(len(stim_table_saline)) if stim_table_saline.image_name[i] == "im036_r"]
print(f"Selected {len(selected_stim_times_saline)} stimulus trials")

Selected 430 stimulus trials

Generating Spike Matrix

# bin size for counting spikes
time_resolution = 0.005

# start and end times (relative to the stimulus at 0 seconds) that we want to examine and align spikes to
window_start_time = -0.25
window_end_time = 0.5

def get_spike_matrix(stim_times, units_spike_times, bin_edges):
    time_resolution = np.mean(np.diff(bin_edges))
    # 3D spike matrix to be populated with spike counts
    spike_matrix = np.zeros((len(units_spike_times), len(stim_times), len(bin_edges)-1))

    # populate 3D spike matrix for each unit for each stimulus trial by counting spikes into bins
    for unit_idx in range(len(units_spike_times)):
        spike_times = units_spike_times[unit_idx]

        for stim_idx, stim_time in enumerate(stim_times):
            # get spike times that fall within the bin's time range relative to the stim time
            first_bin_time = stim_time + bin_edges[0]
            last_bin_time = stim_time + bin_edges[-1]
            first_spike_in_range, last_spike_in_range = np.searchsorted(spike_times, [first_bin_time, last_bin_time])
            spike_times_in_range = spike_times[first_spike_in_range:last_spike_in_range]

            # convert spike times into relative time bin indices
            bin_indices = ((spike_times_in_range - (first_bin_time)) / time_resolution).astype(int)

            # mark that there is a spike at these bin times for this unit on this stim trial
            for bin_idx in bin_indices:
                spike_matrix[unit_idx, stim_idx, bin_idx] += 1

    return spike_matrix

# time bins used
n_bins = int((window_end_time - window_start_time) / time_resolution)
bin_edges = np.linspace(window_start_time, window_end_time, n_bins, endpoint=True)

# calculate baseline and stimulus interval indices for use later
stimulus_onset_idx = int(-bin_edges[0] / time_resolution)

spike_matrix_saline = get_spike_matrix(selected_stim_times_saline, units_spike_times_saline, bin_edges)

print(spike_matrix_saline.shape)

(89, 430, 149)

Showing Response Windows

After generating spike matrices, we can view the PSTHs for each unit. Some cells show clear image aligned responses

def show_response(ax, window, window_start_time, window_end_time, aspect="auto", vmin=None, vmax=None, yticklabels=[], skipticks=1, xlabel="Time (s)", ylabel="ROI", cbar=True, cbar_label=None):
    if len(window) == 0:
        print("Input data has length 0; Nothing to display")
        return

    img = ax.imshow(window, aspect=aspect, extent=[window_start_time, window_end_time, 0, len(window)], interpolation="none", vmin=vmin, vmax=vmax)
    if cbar:
        ax.colorbar(img, shrink=0.5, label=cbar_label)

    ax.plot([0,0],[0, len(window)], ":", color="white", linewidth=1.0)

    if len(yticklabels) != 0:
        ax.set_yticks(range(len(yticklabels)))
        ax.set_yticklabels(yticklabels, fontsize=8)

        n_ticks = len(yticklabels[::skipticks])
        ax.yaxis.set_major_locator(plt.MaxNLocator(n_ticks))

    ax.set_xlabel(xlabel)
    ax.set_ylabel(ylabel)

def show_many_responses(windows, rows, cols, window_idxs=None, title=None, subplot_title="", xlabel=None, ylabel=None, cbar_label=None,
                        vmin=0, vmax=1.5):
    if window_idxs is None:
        window_idxs = range(len(windows))
    windows = windows[window_idxs]

    # handle case with no input data
    if len(windows) == 0:
        print("Input data has length 0; Nothing to display")
        return
    # handle cases when there aren't enough windows for number of rows
    if len(windows) < rows*cols:
        rows = (len(windows) // cols) + 1

    fig, axes = plt.subplots(rows, cols, figsize=(2*cols, 3*rows), layout="constrained")
    # handle case when there's only one row
    if len(axes.shape) == 1:
        axes = axes.reshape((1, axes.shape[0]))

    for i in range(rows*cols):
        ax_row = int(i // cols)
        ax_col = i % cols
        ax = axes[ax_row][ax_col]

        if i > len(windows)-1:
            ax.set_visible(False)
            continue

        window = windows[i]
        show_response(ax, window, window_start_time, window_end_time, xlabel=xlabel, ylabel=ylabel, cbar=False, vmin=vmin, vmax=vmax)
        ax.set_title(f"{subplot_title} {window_idxs[i]}")
        if ax_row != rows-1:
            ax.get_xaxis().set_visible(False)
        if ax_col != 0:
            ax.get_yaxis().set_visible(False)

    fig.suptitle(title)
    norm = mpl.colors.Normalize(vmin=vmin, vmax=vmax)
    colorbar = fig.colorbar(mpl.cm.ScalarMappable(norm=norm), ax=axes, shrink=2/cols, label=cbar_label)

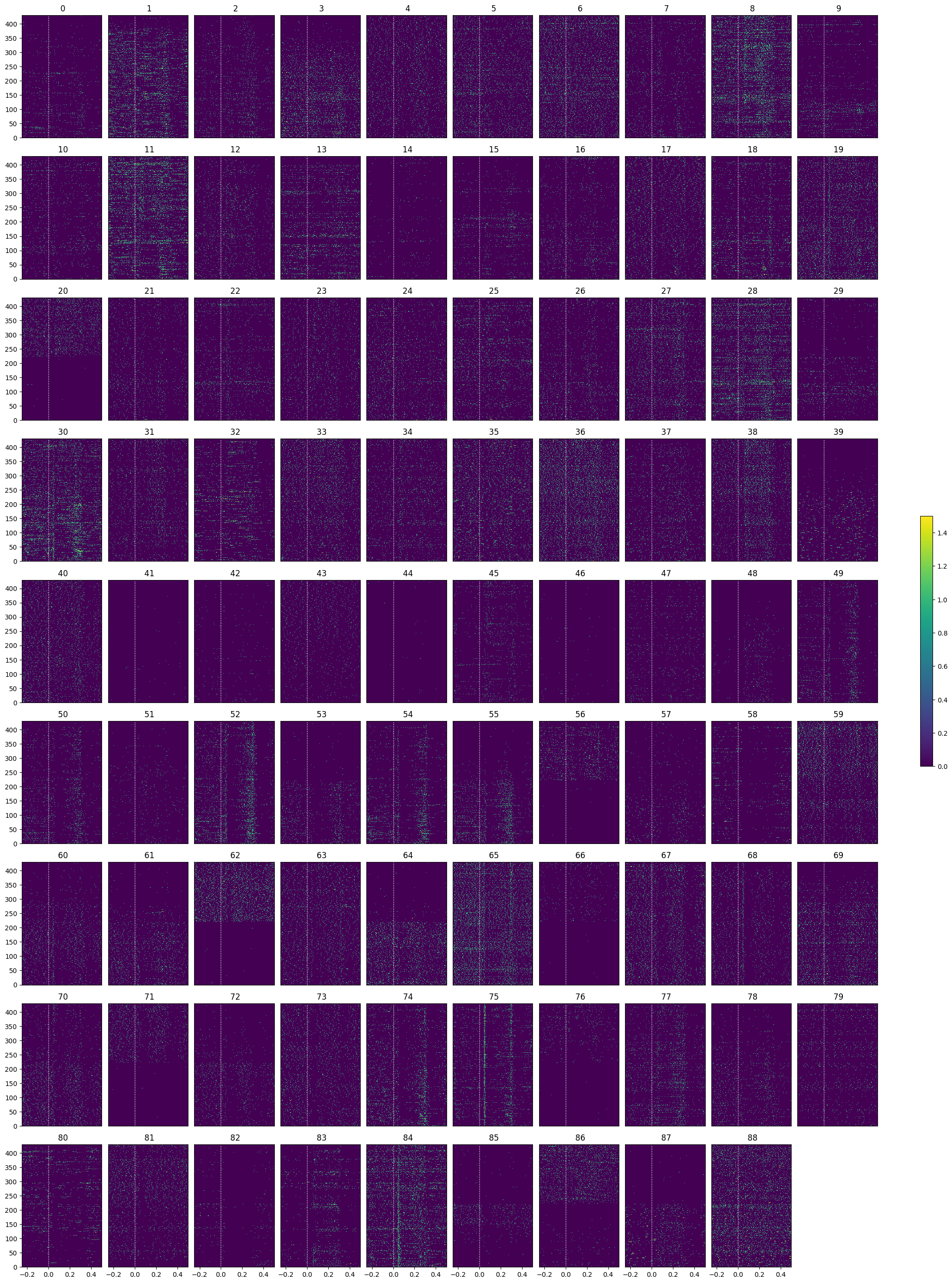

show_many_responses(spike_matrix_saline, 10, 10)

Selecting Responsive Cells

As discussed in Statistically Testing 2P Responses to Stimulus, the criteria used to select for responsive cells can have a significant impact. Here, the simple criterion is to select units whose post-stimulus z-scores are greater than 1 or less than -1.

def select_cells(spike_matrix, stimulus_onset_idx):
    baseline_means = np.mean(spike_matrix[:,:,:stimulus_onset_idx], axis=2)
    mean_baseline_means = np.mean(baseline_means, axis=1)
    std_baseline_means = np.std(baseline_means, axis=1)

    response_means = np.mean(spike_matrix[:,:,stimulus_onset_idx:], axis=2)
    mean_response_means = np.mean(response_means, axis=1)

    unit_z_scores = (mean_response_means - mean_baseline_means) / std_baseline_means
    return np.where(np.logical_or(unit_z_scores > .25, unit_z_scores < -.25))[0]

saline_selected_idxs = select_cells(spike_matrix_saline, stimulus_onset_idx)

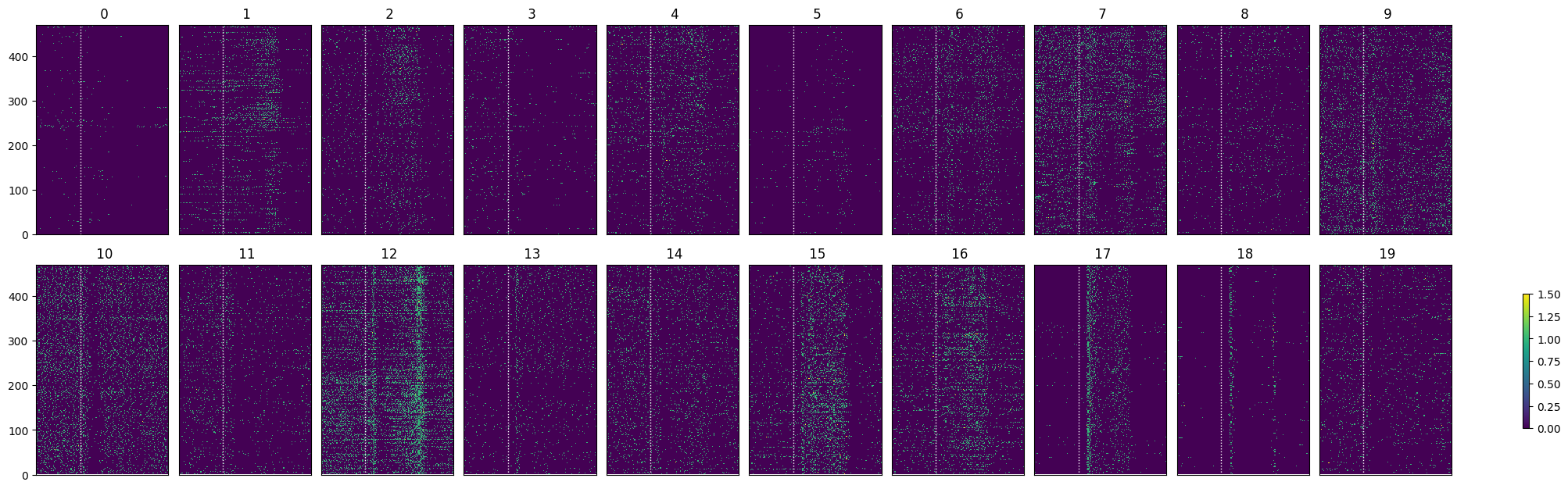

show_many_responses(spike_matrix_saline[saline_selected_idxs], 5, 10)

Comparing to Psilocybin Session

units_psilo = nwb_psilo.units.to_dataframe()

locations = [get_unit_location(row) for _, row in units_psilo.iterrows()]
units_spike_times_psilo = select_units(units_psilo)

print(f"Selected {len(units_spike_times_psilo)} units")

Selected 64 units

injection_time = nwb_saline.intervals["injection_times"].to_dataframe()["start_time"].iloc[0]
print("Injection time:", injection_time)

Injection time: 2881.3192

stim_table_psilo = nwb_psilo.intervals["behavior_presentations"]
selected_stim_times_psilo = [stim_table_psilo[i].start_time.item() for i in range(len(stim_table_psilo)) if stim_table_psilo.image_name[i] == "im036_r"]

print(f"Selected {len(selected_stim_times_psilo)} stimulus trials")

Selected 470 stimulus trials

# time bins used
n_bins = int((window_end_time - window_start_time) / time_resolution)
bin_edges = np.linspace(window_start_time, window_end_time, n_bins, endpoint=True)

# calculate baseline and stimulus interval indices for use later
stimulus_onset_idx = int(-bin_edges[0] / time_resolution)

spike_matrix_psilo = get_spike_matrix(selected_stim_times_psilo, units_spike_times_psilo, bin_edges)

print(spike_matrix_psilo.shape)

(64, 470, 149)

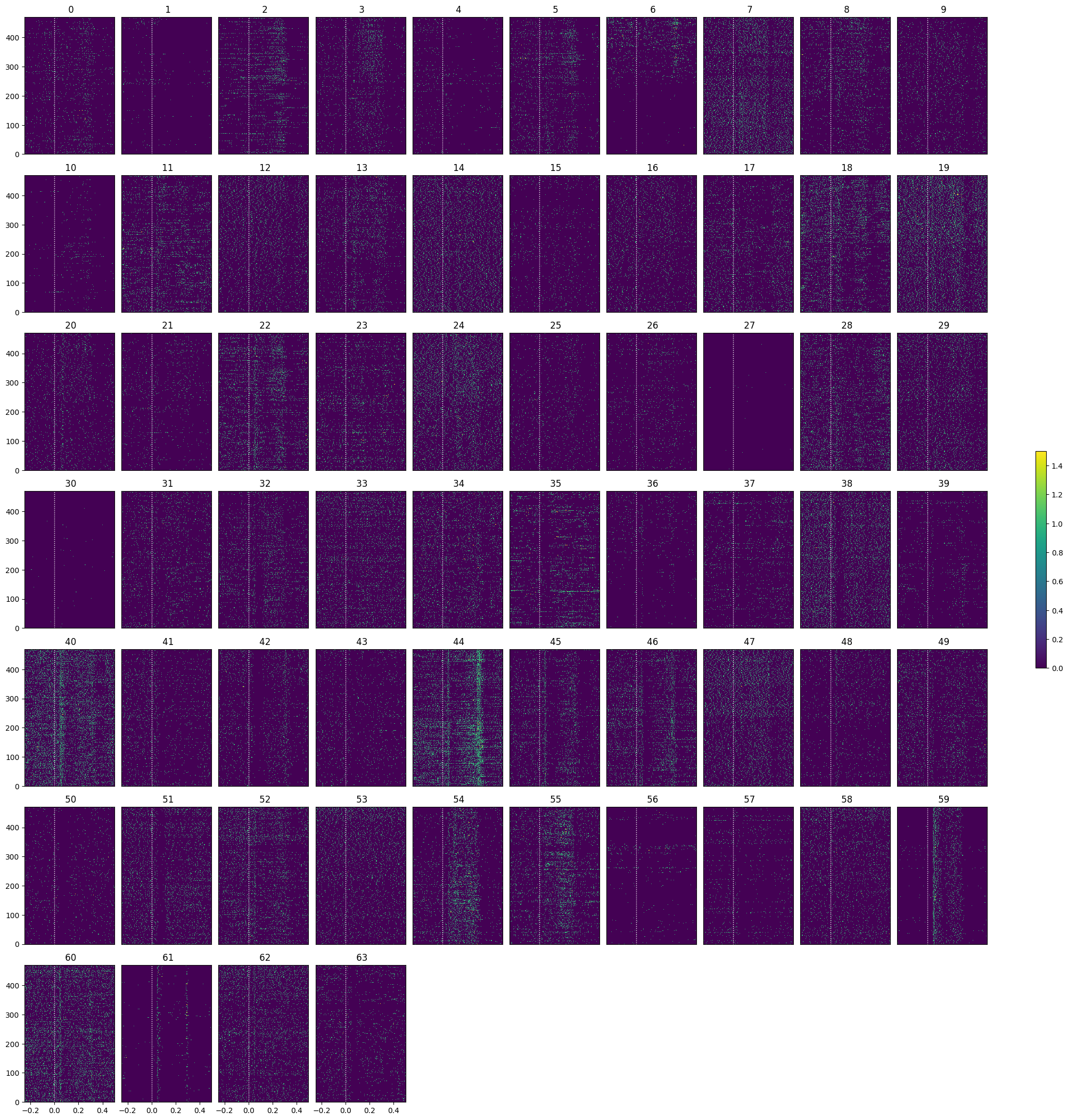

show_many_responses(spike_matrix_psilo, 10, 10)

psilo_selected_idxs = select_cells(spike_matrix_psilo, stimulus_onset_idx)

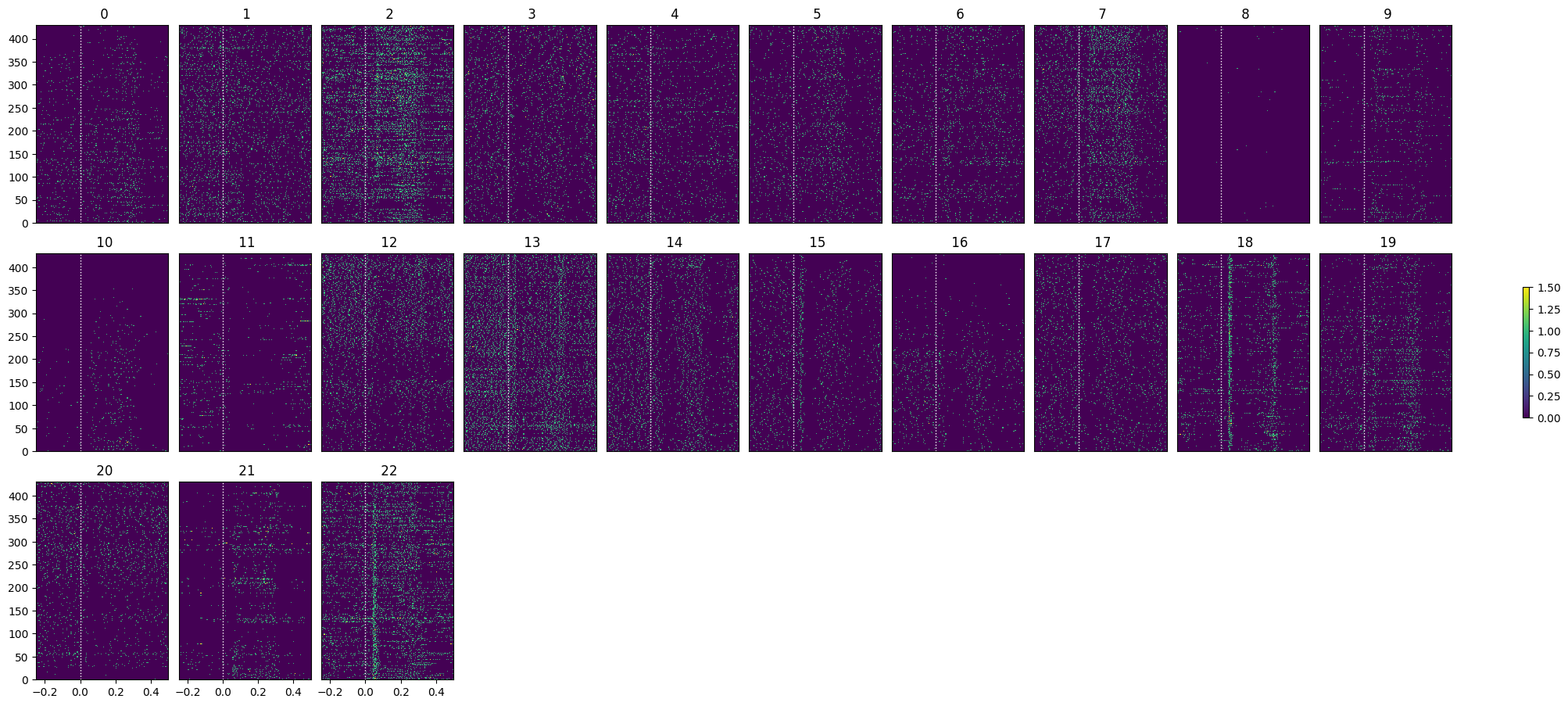

show_many_responses(spike_matrix_psilo[psilo_selected_idxs], 5, 10)

Optotagging

As mentioned earlier, the final epoch of the sessions is optotagging. The principles behind the optotagging are discussed in the Identifying Optotagged Units notebook. Here you can see both activated and inhibited cells, widespread inhibition is expected because we are activating a major interneuron class: SSTs

opto_stim_table = nwb_saline.intervals["40 hz pulse train_presentations"]
opto_stim_table[:20]

	start_time	stop_time	condition_num	level	condition	stim_name	duration	timeseries
id
0	6452.19863	6453.19863	5	1.7	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
1	6465.97084	6466.97084	5	1.7	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
2	6468.06069	6469.06069	5	1.94	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
3	6470.14057	6471.14057	5	2.05	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
4	6474.40055	6475.40055	5	2.05	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
5	6476.49077	6477.49077	5	1.7	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
6	6492.14637	6493.14637	5	2.05	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
7	6505.56062	6506.56062	5	2.05	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
8	6507.55072	6508.55072	5	1.7	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
9	6513.72098	6514.72098	5	1.94	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
10	6523.88067	6524.88067	5	1.94	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
11	6525.87080	6526.87080	5	1.7	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
12	6527.60083	6528.60083	5	1.94	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
13	6535.23100	6536.23100	5	1.7	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
14	6546.87102	6547.87102	5	1.7	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
15	6550.74097	6551.74097	5	1.94	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
16	6562.55073	6563.55073	5	1.7	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
17	6566.19084	6567.19084	5	1.7	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
18	6570.09832	6571.09832	5	2.05	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...
19	6576.27119	6577.27119	5	2.05	Each pulse is 6 ms wide	40 hz pulse train	1.0	[(14085, 0, timestamps pynwb.base.TimeSeries a...

opto_stim_times = [row.start_time.item() for row in opto_stim_table if isclose(float(row.duration.item()), 1.0)]
len(opto_stim_times)
len(units_spike_times_saline)

89

# bin size for counting spikes
time_resolution = 0.005

# start and end times (relative to the stimulus at 0 seconds) that we want to examine and align spikes to
window_start_time = -0.25
window_end_time = 0.5

# time bins used
n_bins = int((window_end_time - window_start_time) / time_resolution)
bin_edges = np.linspace(window_start_time, window_end_time, n_bins, endpoint=True)

# calculate baseline and stimulus interval indices for use later
stimulus_onset_idx = int(-bin_edges[0] / time_resolution)

opto_spike_matrix = get_spike_matrix(opto_stim_times, units_spike_times_saline, bin_edges)

print(opto_spike_matrix.shape)

(89, 33, 149)

opto_selected_idxs = select_cells(opto_spike_matrix, stimulus_onset_idx)
show_many_responses(opto_spike_matrix[opto_selected_idxs], 5, 10)
